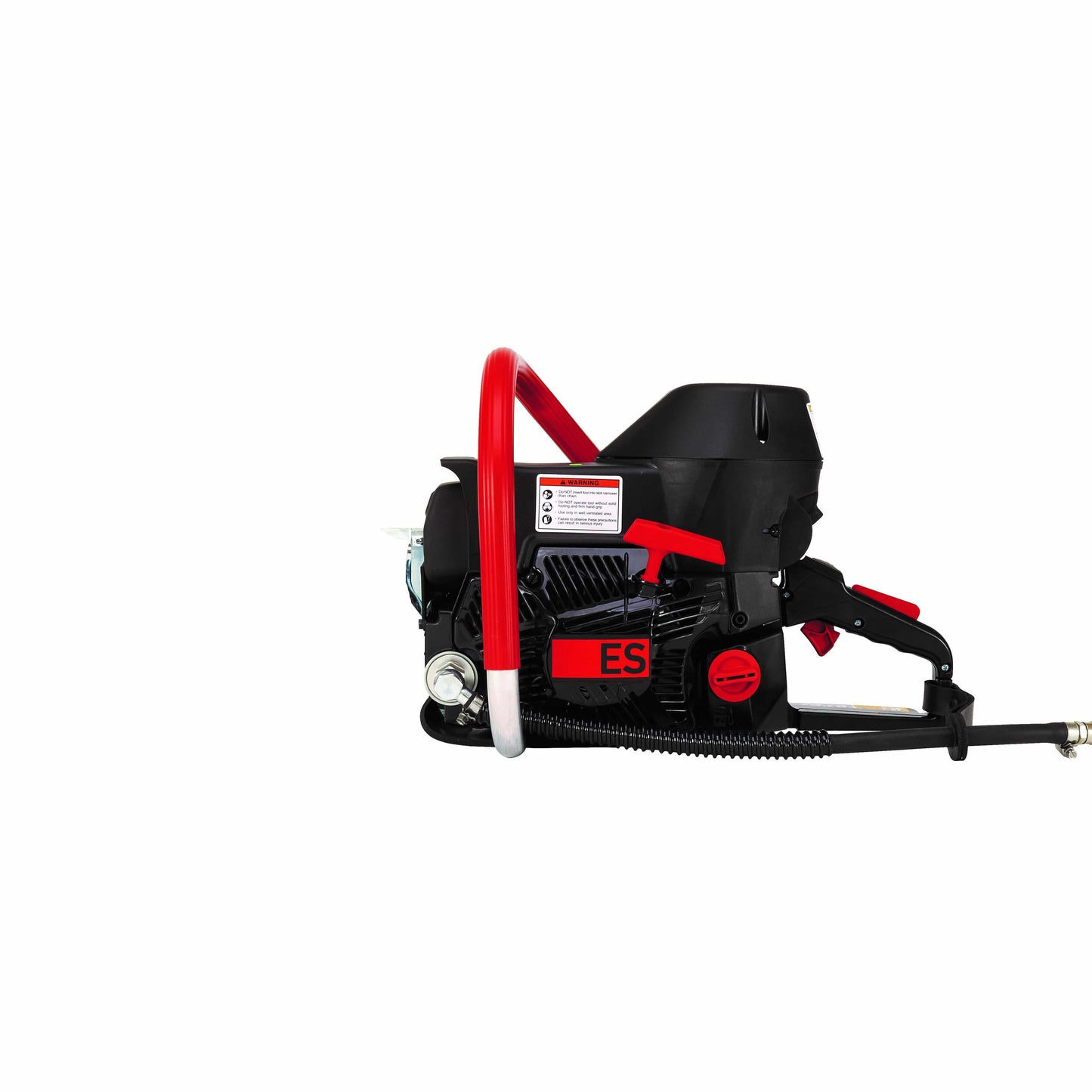

ICS 680ES Powerhead Gas Concrete Chainsaw

SKU: 576155

ICS 680ES handles the Force3 line of bars and chains, built to meet the operation and demands of general construction.  Easy to start with a new lever to control choke, run and stop functions, available with 12" and 14" bar and chains.

Regular price $1,140.00
Sale price $1,140.00
Shipping calculated at checkout.
Quantity must be 1 or more

We accept payment
  • Description
  • Specs
  • Reviews
  • FILES
  • SHIPPING

Description

ICS 680ES CHAINSAW POWERHEAD ONLY - BAR AND CHAIN NOT INCLUDED, AVAILABLE SEPARATELY OR WITH PACKAGE



Ace Cutting has this saw prepped before shipping.  We try our best to adjust the carburetor to meet location / elevation being shipped.  This assures us to see defects or problems before shipping.  Our technicians run the saw, empty the fuel and fit back into original packaging.

Features & Benefits

  • Operates FORCE3™ diamond chain up to 14”
  • Requires 20 PSI pressurized water.  Do not use standard pump-up water cans as they do not provide enough water.  Standard garden hose connection.
  • Polyester air filer designed specifically for wet cutting
  • Multi-function lever controls choke, throttle advance, run and stop modes
  • Extended drive sprocket adapter offers easy chain assembly
  • Deep cutting solution for obstructed or small openings
  • Cut squares as small as 4” x 4”
  • Easy-to-start in all weather

Ace Cutting recommends the ICS 680ES chainsaw for general contractors who needs to cut through concrete 7-14" deep.  If using this saw everyday or each week, we suggest the Pro Series ICS 695XL model geared for heavy use and higher production rates.  This saw is still very reliable and easy to start with a maximum 14" depth of cut.

Proper Chain Tension is very important.  Rule of thumb is a diamond chain can be pulled freely around the guide bar by hand easily without binding.  Proper chain tension should allow drive links to hang below bar.  Click here for full ICS Chain Tension Tip Sheet.

If cuts are consistently crooked, turn the guide bar over and use the other side.  Note: normal life of a guide bar is 2-3 chains.  Heavy rebar can shorten bar life.  With new chains it may be necessary to open up the diamonds, do this by making a few cuts into an abrasive material such as cinder block.  Opening the diamonds will increase cutting speed.

 Chains measure .220" wide, pre-cutting with a .235" blade will allow the chainsaw to cut freely without any premature wear on side clearance of chain.  Important in keeping your saw cut straight by scoring the cut first.  This also helps in blade life by using a standard pre-cut diamond blade with cut-off saw.  Pre-Cutting is most commonly achieved with gas K970-14" or K970-16" or hydraulic K2500-16" combined with the Vanguard series blades.

MORE INFO AND DESCRIPTION

  • The ICS 680ES package comes with the powerhead, bar and a Force3 diamond chain. ICS offers the power and durability for cutting through concrete, stone and masonry with square corners and narrow, deep cuts of up to 14 in. Choose between 12- and 14-inch bars.
  • Weighing just 21 pounds and requiring about 20 psi of water pressure to operate, you can utilize this handheld chainsaw in vertical or horizontal positions. This tool is ideal for cutting window and door openings, as well as duct and pipe slots.
  • The 680ES has placed an added emphasis on quick, problem-free starting. Altitude-friendly carburetor improves starting and maximizes power at any elevation, while a better decompression valve, a large-diameter rope and improved recoil spring engagement all work to improve the consistency of dependable starts.

Specs

Engine type2-stroke, Air-cooled
Displacement76.5 cc
Horsepower5 hp @ 9,500 rpm
Torque4.1 Nm (36. in-lbs) @ 6,500 rpm
Weight21 lbs powerhead only
Dimensions LxWxH18" x 11.5" x 10"
Starter Recoil, dust and water resistant
IgnitionSpecial water resistant electronic
Fuel ratio50:1 gasoline-to-oil
Fuel capacity.23 gallons
Water supply requirementMinimum 20 psi
Water flow requirement1 gpm

Reviews

FILES

SHIPPING

This item qualifies for Free FedEx Ground Shipping.  Orders placed before 3pm Eastern Standard Time will be shipped same day.  Orders placed after 3pm will be processed the following business day.

Ace Cutting has this saw prepped before shipping.  We try our best to adjust carburetor to meet location / elevation being shipped.  This assures us to see defects or problems before shipping.  Our technicians run the saw, empty the fuel and fit back into original packaging.
