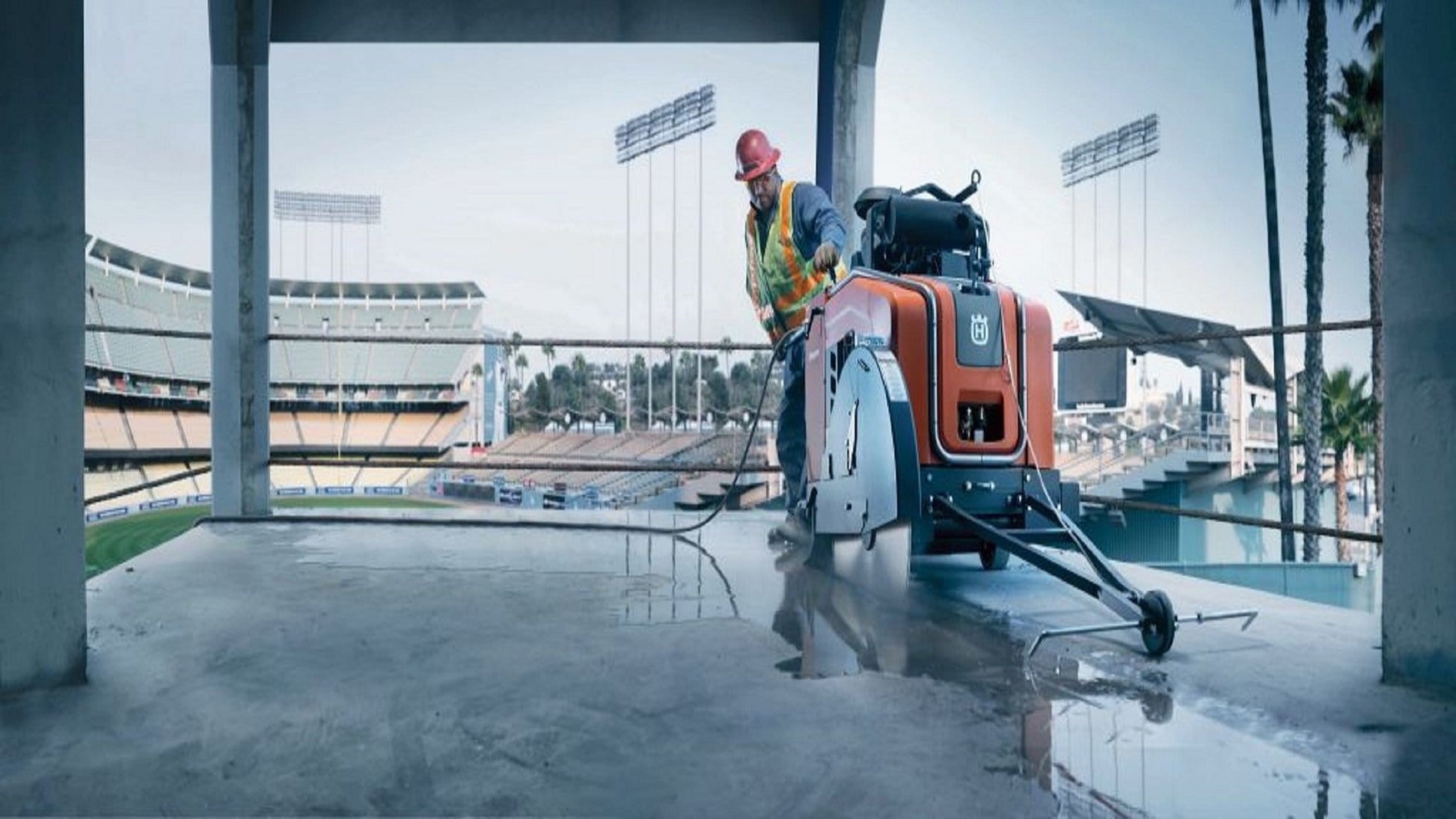

FS7000D Husqvarna 3-Speed Diesel Concrete Saw
Regular price
$52,388.00
Regular price
Sale price
$52,388.00
Unit price
per
Shipping calculated at checkout.
Sku:
967207925

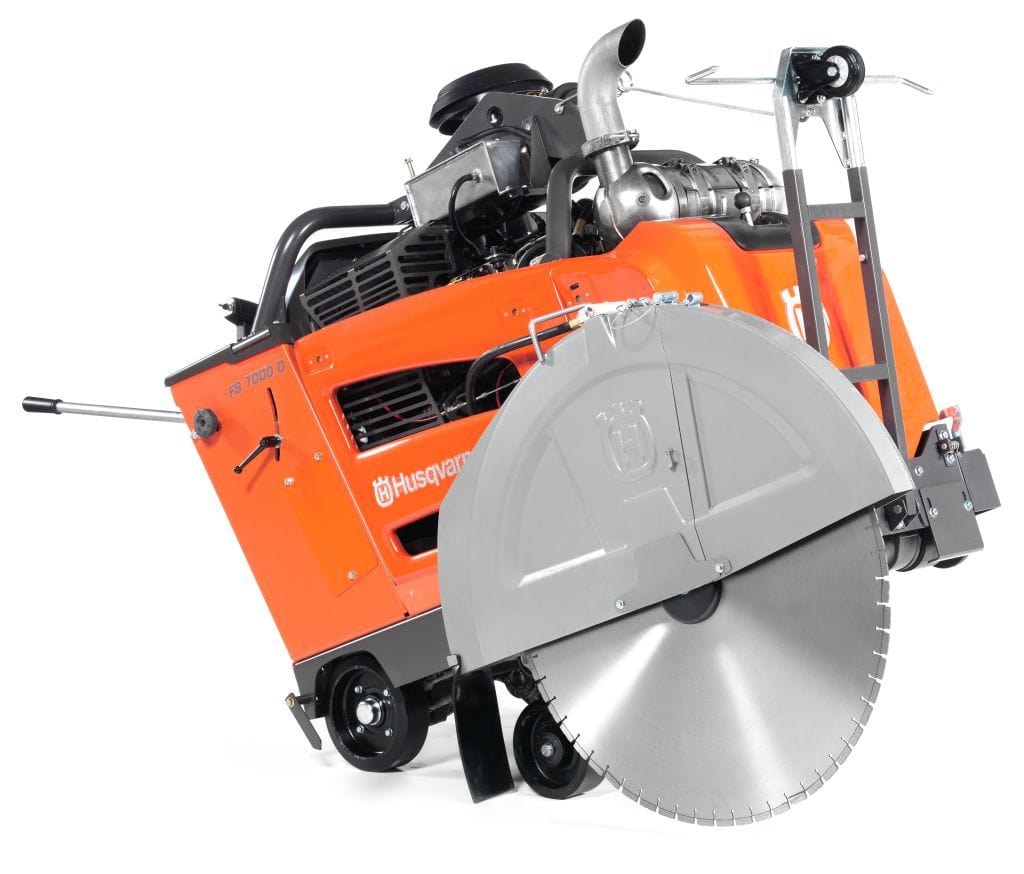

Husqvarna FS7000 diesel walk behind saw with 3-speed gearbox for ideal RPM with each blade, ability to cut 17.5" deep. Tier 4 compliant engine meets current EPA regulations along with digital display dashboard featuring all important functions and easy to monitor.
Notified by email when this product becomes available
FS7000D Husqvarna 3-Speed Diesel Concrete Saw
FS7000D HUSQVARNA 3-SPEED DIESEL CONCRETE SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
Applications
- Large jobs such as airports, highways, larger service work, and other applications where production is a priority.
- Mid-size jobs that require high production rates.
Benefits
- Tier 4 compliant engine meets current EPA regulations.

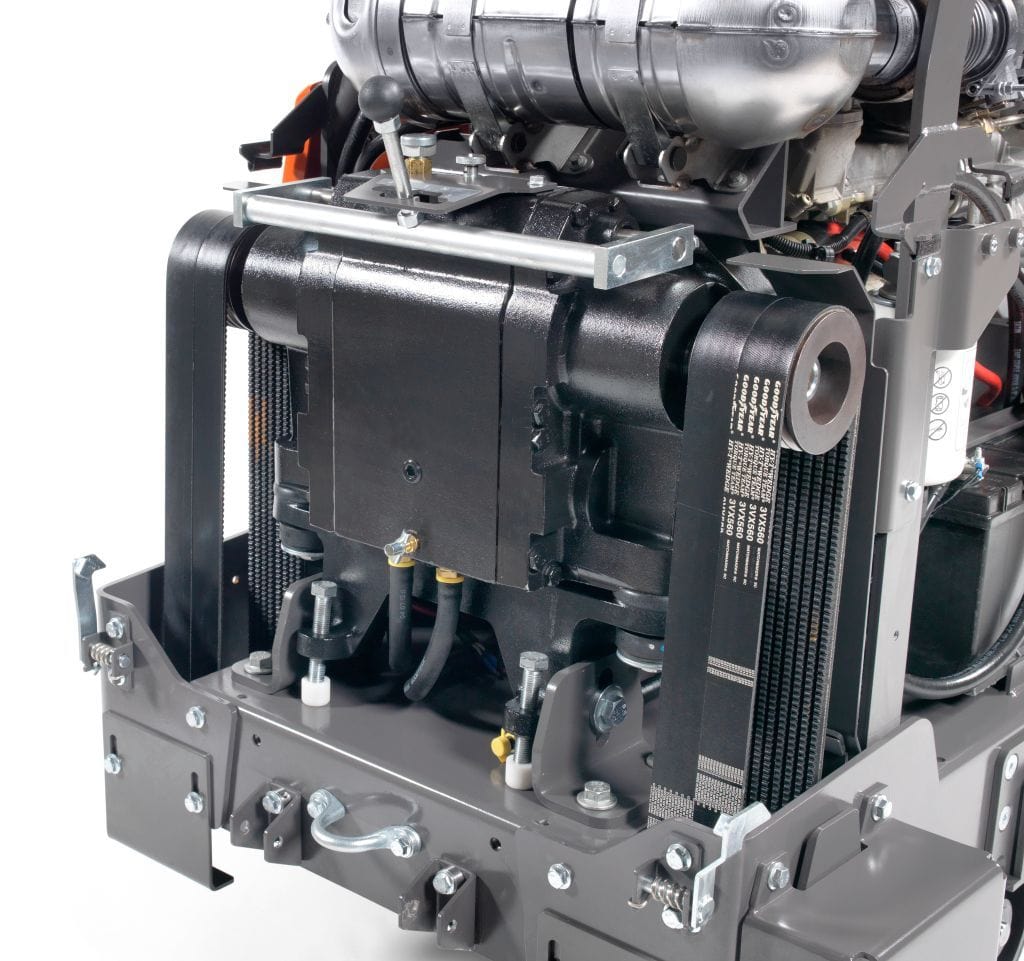

- Power transmission system transmits more power to the bladeshaft with optimum torque.
- 3-Speed, right-angle gearbox models enable different blade sizes to run at their optimal performance level without changing pulleys or belts.

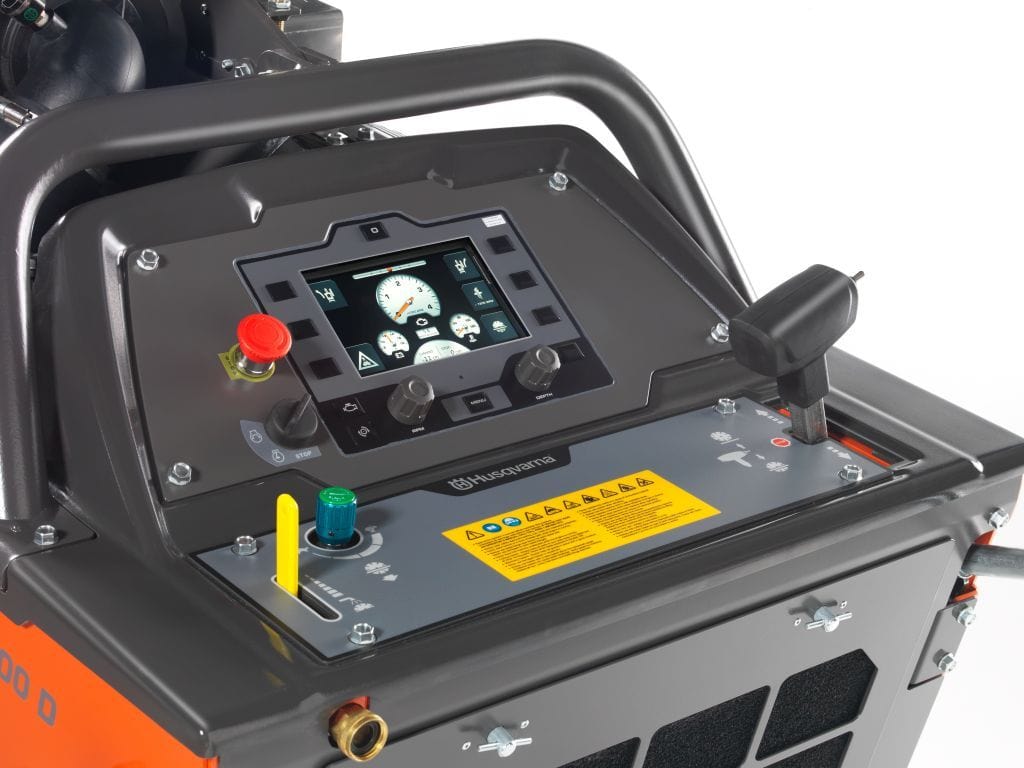

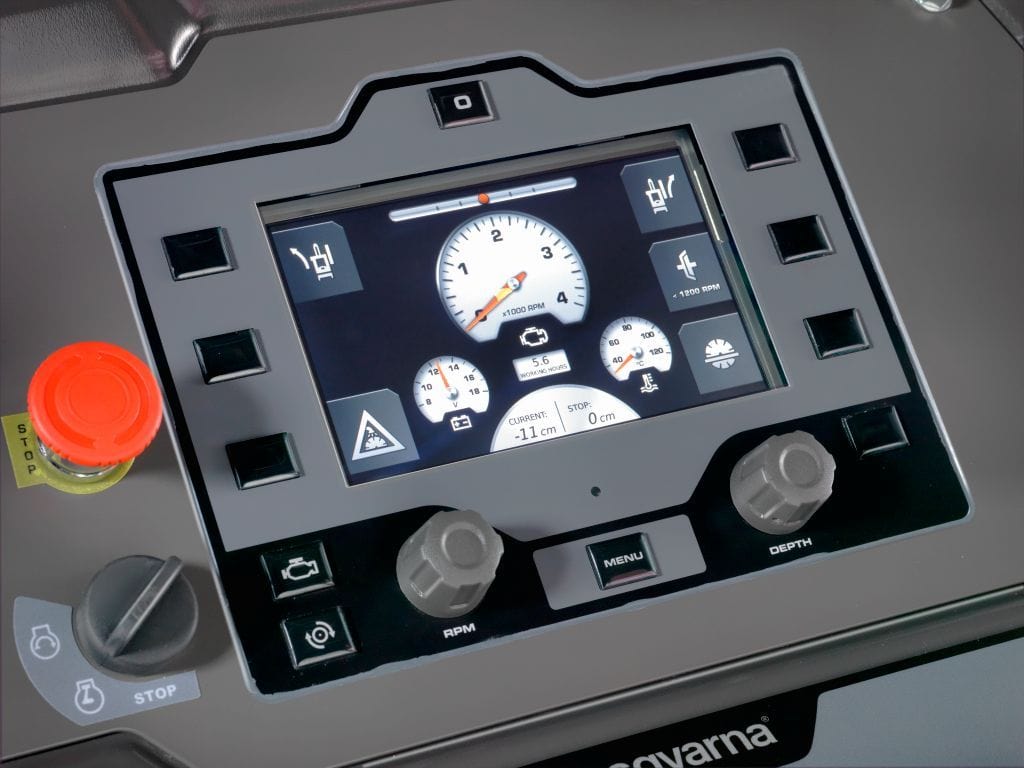

- Digital display dashboard features all important functions and is easy to monitor.
- E-track system option has an integrated reset function in the display making it easier to produce a straight cut.
- Heavy-duty blade shaft to handle large blades.
- 5-pin blade flanges with standard single pin featuring LOU pin pattern.
MORE INFORMATION
E-tracking is an excellent feature offered only by Husqvarna on their diesel saws. Through built-in computer on control panel, operator has a gauge working off center point. The saw is always going to pull in the path of least resistance, either left or right. E-tracking allows you to counter act the pull for an effortless, straight cut.
TECHNICAL SPECIFICATIONS
| Max blade diameter, in | 26" | 30" | 36" | 42" |
| Max depth of cut, inches | 10-1/2" | 12-1/2" | 15" | 17-1/2" |
| Average bladeshaft, RPM | 3,100/2,170/1,860 | 2,680/1,880/1,600 | 2,300/1,620/1,360 | 1,960/1,380/1,180 |
|
Blade range, inches |
14"/18"/26" | 18"/26"/30" | 20"/30"/36" | 30"/36"/42" |
| Blade flanges, inches | 5" | 5" | 6" | 7" |
| Max weight uncrated, lbs | 2,146 | 2,155 | 2,168 | 2,307 |
| Engine Specifications | Deutz C4D155.4 |
| Maximum power, HP (kW) | 74 (55) |
| Power at bladeshaft, HP (kW) | 66 (48) |
| Arbor size, in (mm) | 1" (25) |
| Bladeshaft diameter, in (mm) | 2" (51) |
| Cylinders / Cycle | 4/4 |
| Fuel Capacity, gal (l) | 10.6 (40) |
| Air Filter | Dual element radial seal with rain hood |
| Starter | Electric |
| Engine Cooling | Liquid / Air |
| Axle front / rear, in (mm) | 1" (25) |
| Wheels front, in (mm) | 8" x 3" (203 x 76) |
| Wheels rear, in (mm) | 10" x 3" (254 x 76) |

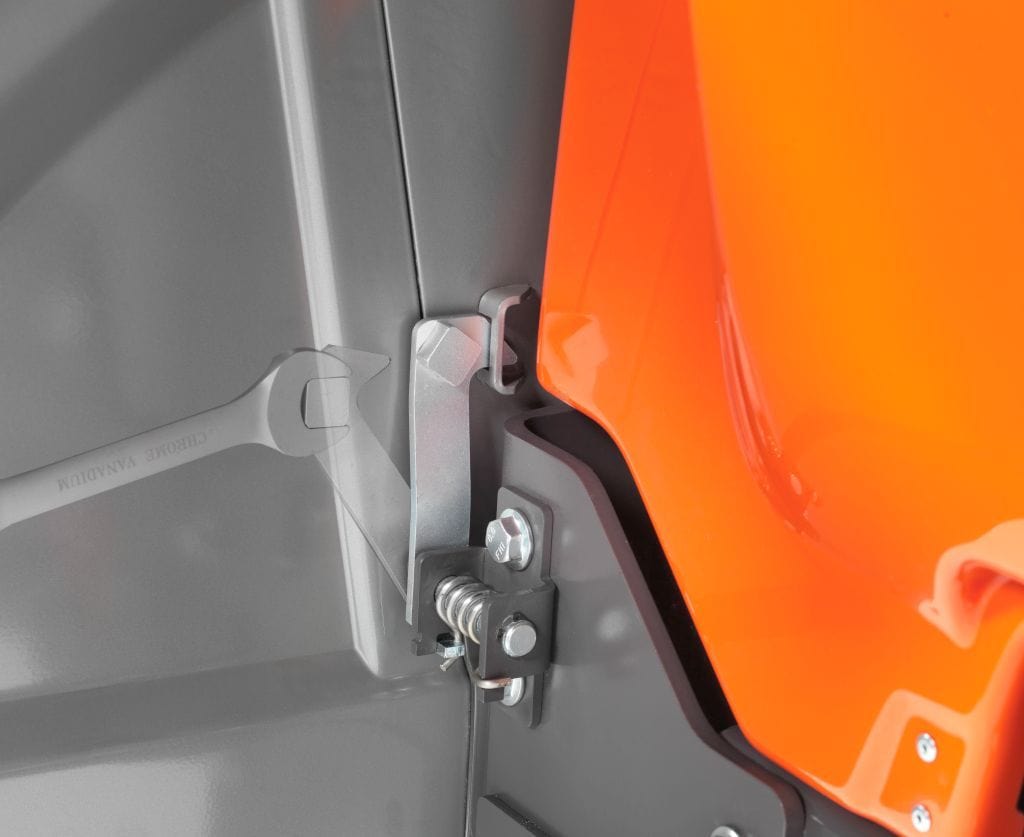

| Blade guard type | Slip-on |
| Number of belts | 16 (Set of 4, banded belts) |
| Blade depth control | Electrohydraulic Pump |
| Dimensions uncrated, pointer and blade guard up, handles in, L x W x H | 67" x 38" x 57" |
| Displacement, cu in (l) | 178 (2.92) |
| Bore / Stroke, in (mm) | 3.6 / 4.3 (91/109) |
| Oil Capacity, qt (l) | 9 (8.5) |

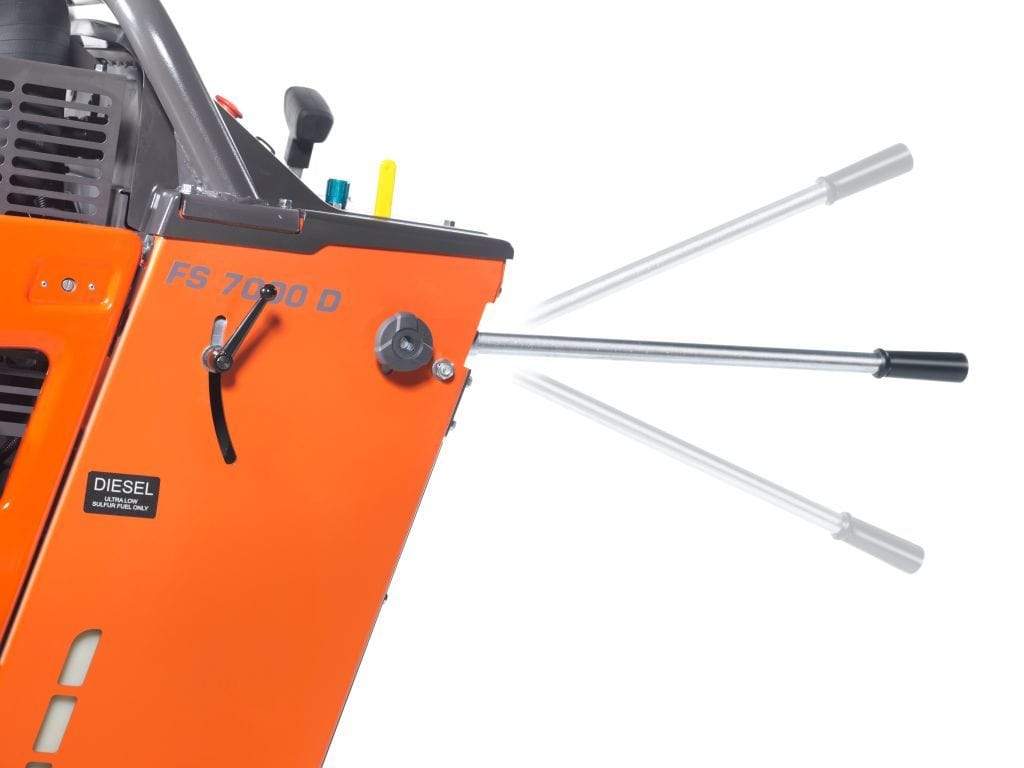

| Handlebar adjustment | Variable Position |
| Transmission Type | Balanced dual motor hydrostatic drive |
| Transmission speeds, fpm | 0-300 |
| Electric tracking (optional) | Electric switch operated |
