Vendor: Diamond Products

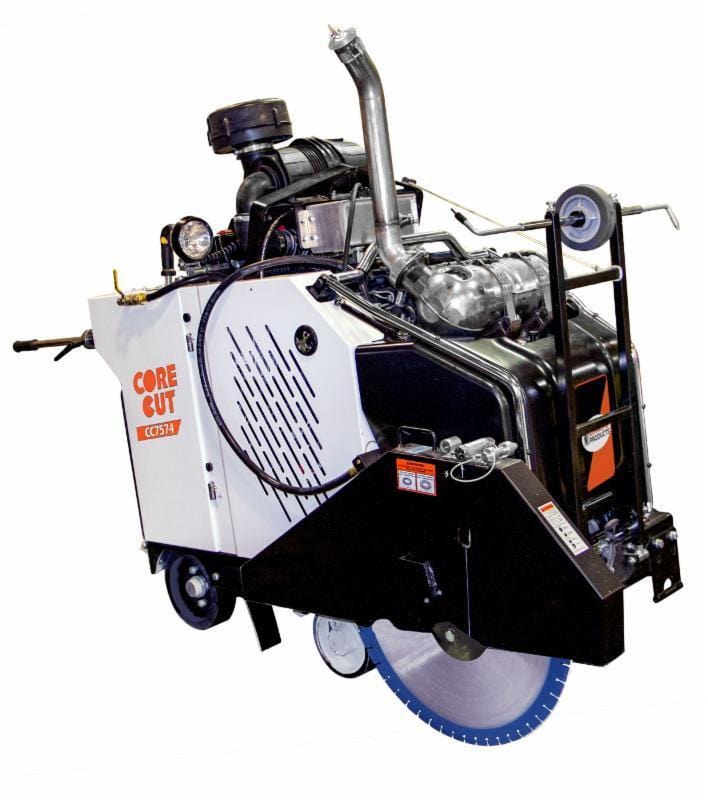

CC7574DD Diesel Core Cut Walk Behind Saw

$47,585.00
$47,585.00
Sold out
Shipping calculated at checkout.
Sku: 5801256

CC7574DD has a Deutz Turbo diesel engine with optional 3-speed gearbox and clutch. Increase production, lower maintenance cost and better fuel efficiency with a Tier 4 Final compliant motor for powerful deep cutting demands. Able to cut up to 19-3/4" deep with a 48" blade.

Caret Down
Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

Product Reviews

Caret Down
View full details
CC7574DD Diesel Core Cut Walk Behind Saw
CC7574DD Diesel Core Cut Walk Behind..
Caret Down

Additional Info

DIAMOND PRODUCTS CC7574DD CORE CUT SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

FEATURES & BENEFITS

  • Tier 4 Final Deutz diesel engine
  • Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running
  • Easy maneuvering self propelled drive
  • Strongest frame on the market
  • Hydraulic wheel motor drive
  • Blade shaft gearbox-oil bath for low maintenance
  • 19-3/4" maximum cutting depth
  • Maintenance-free DVERT® diesel oxidation catalytic converter  (DOC-only, no DPF)
  • High pressure common rail electronic fuel injection

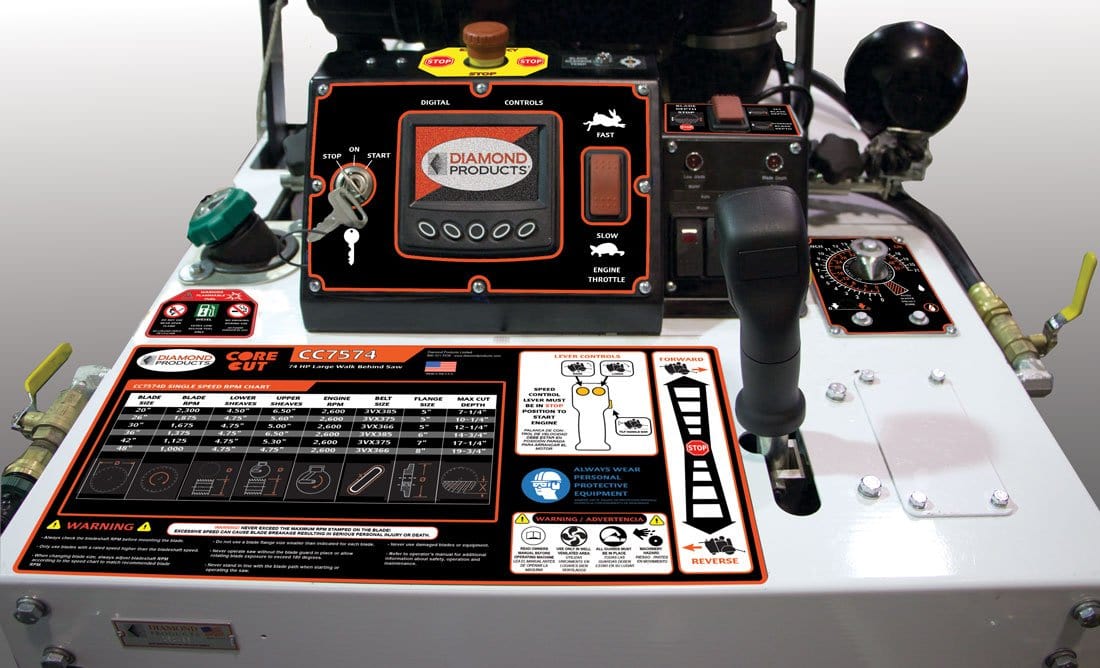

  • Modern computer interface engine controls

CC 7574DD SPECIFICATIONS

Horsepower 74 hp
Motor Deutz Turbo
Max depth of cut with 48" blade 19-3/4"
Bladeshaft drive 20 V-belts
Bladeshaft diameter 2"
Weight, lbs 2,229

Max depth of cut with 20" blade7-1/4" (5" flange)
Max depth of cut with 26" blade10-1/4" (5" flange)
Max depth of cut with 30" blade12-1/4" (5" flange)
Max depth of cut with 36" blade14-3/4" (6" flange)
Max depth of cut with 42" blade17-1/4" (7" flange)
Max depth of cut with 48" blade 19-3/4" (8" flange)
Engine brandDeutz Turbo Diesel
Engine specification4-cylinder, 3.3 Liter
Max engine power74.3 hp @ 2,600 rpm
Power at blade shaft74 horsepower
Emission regulationEPA Tier 4 Final compliant
Blade shaft diameter2"
Arbor size1" with single drive pin
Blade shaft bearingsMultiple ball bearings in oil bath
Blade shaft drive20 V-belts
Blade mountingRight or left
Blade raise / lowerElectro-hydraulic pump
TransmissionHydro pump powering dual wheel motors
Drive speed0-250 feet per minute
Air filter4-stage with restriction indicator
Fuel capacity9 gallons

CC7574DD Spec Sheet

CC7574DD Parts List
