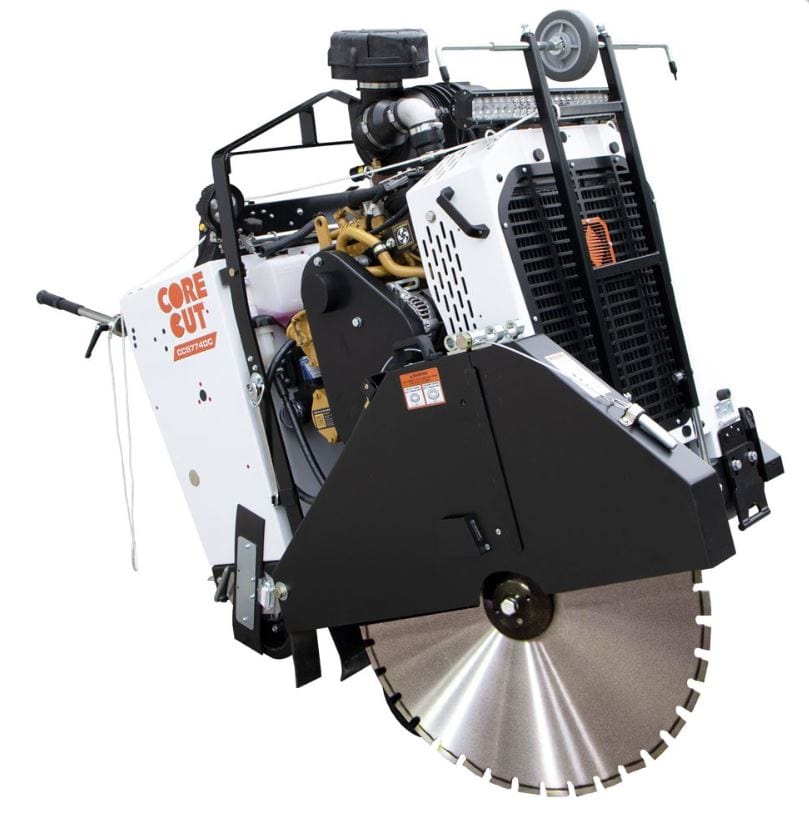

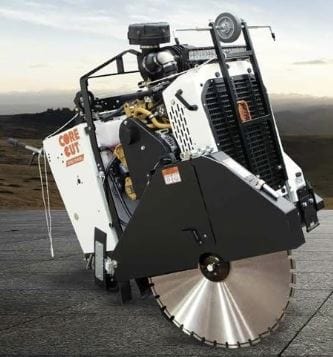

    CC6774DC Diesel Core Cut Walk Behind Saw

    SKU: 5801560

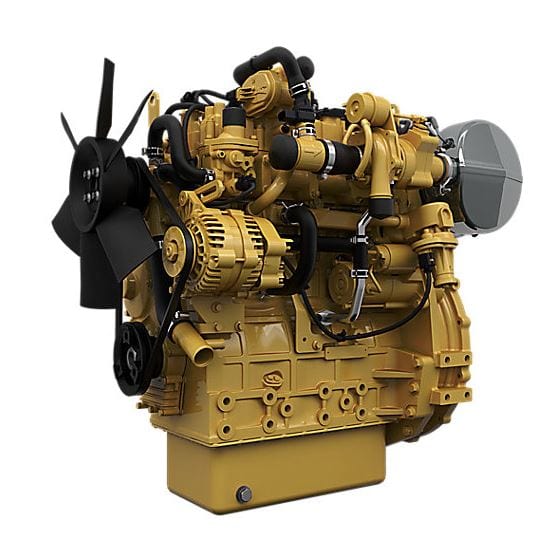

    CC6774DC uses the latest in engine technology from Caterpillar to produce a high production saw with the trusted reliability of CAT Power all while meeting Tier 4 emissions compliance. CAT C2.2 engine delivers 74 HP and a staggering 199 ft-lbs of torque thru 10 drive belts and 2" diameter blade shaft to cut thru the hardest of aggregates and oversized reinforcement steel. Designed for the professional cutter, the CC6774DC boasts features like single bolt belt tensioning and a front hinged quick access belt guard allowing for fast and easy belt maintenance. Enhanced digital color display allows operator to monitor critical feedback like engine speed and oil pressure in direct sunlight.

    $42,954.00
    $42,954.00
    Shipping calculated at checkout.
    Quantity must be 1 or more

    Product options:

    Finance Your Next Project With HIL Financial

    Click Here to Apply for Financing

    We accept payment
    • Description
    • Specs
    • Reviews

    Description

    DIAMOND PRODUCTS CC6774DC CORE CUT SAW

    BLADE NOT INCLUDED, AVAILABLE SEPARATELY

    Features & Benefits
    • Certified UE Stage V Engine-Clean reliable power with Caterpillar's latest engine technology

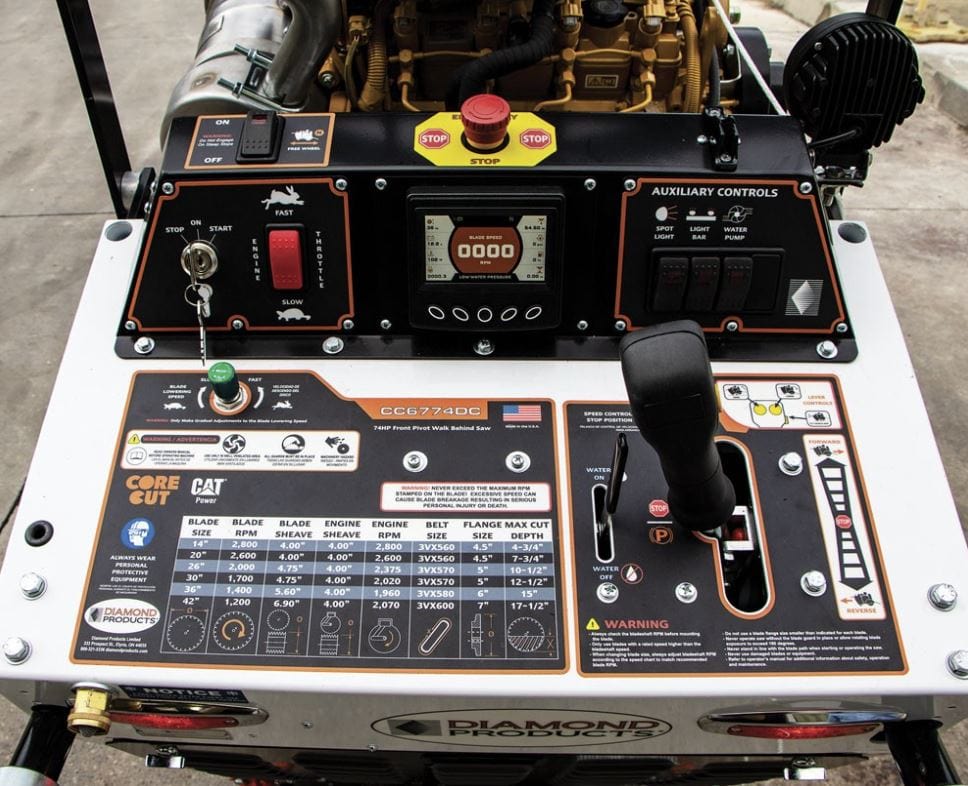

    • Advanced Digital 4" Display-Enhanced rich color graphics for superior visibility in sunlight
    • Critical Diagnostics-Computer monitored functions alerts potential problems to avoid shutdown
    • Blade Overspeed Alert-Warns of blade rpm exceeding safe limit
    • Engine Service Alerts-Maintenance reminders for optimum engine function
    • Digital Depth Indicator/Stop-Accurate sawing depth stop with easy pushbutton functionality
    • Adjustable Blade Lowering Speed-Dash mounted for precise adjustment
    • Central Water Control Valve-Panel mounted convenience
    • Single Hand Sawing Control-Forward/Reverse/Raise/Lower all in one ergonomic grip
    • Front/Rear Tie Down Rings-Safe secure points for transport
    • Automatic Parking Brake-Hydraulic activation in stop position gate
    • Simple Freewheeling-Convenient dash mounted switch activation
    • Quick Disconnect Flanges-Quickly detach stuck blade to minimize downtime
    • Single Bolt Belt Tensioning-Evenly adjust belt tension quickly
    • Easy On Easy Off Sheaves-Split taper quick disconnect sheaves evenly squeeze shaft to stay tight and run true
    • Easy Access Belt Guard-Hinged front access to quickly inspect drive belt tension/condition

    Options

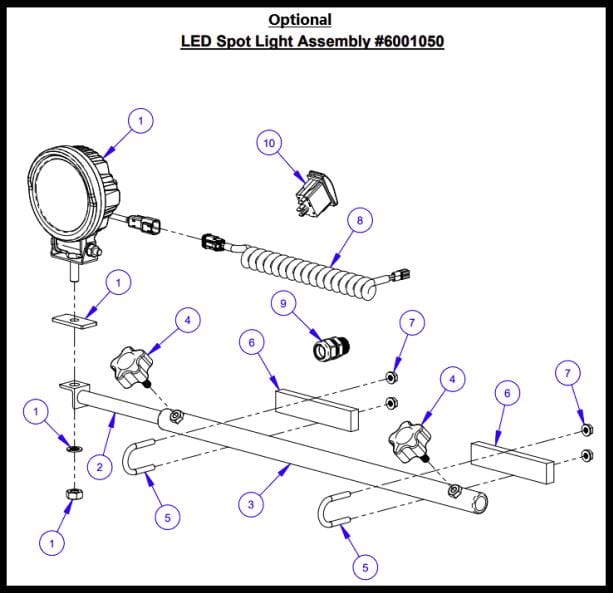

    • LED Lighting Package-Spot light, lightbar or both

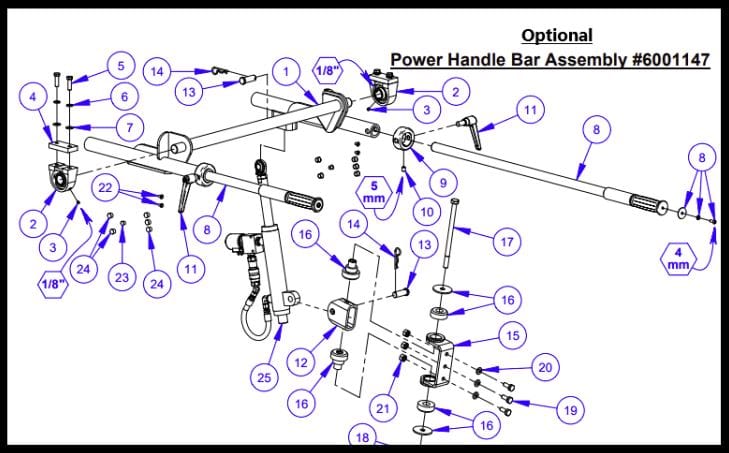

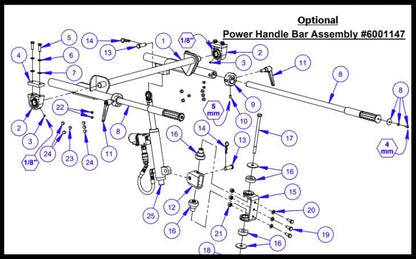

    • Quick Set Power Handlebars-Hydraulic actuated handlebar height adjustment

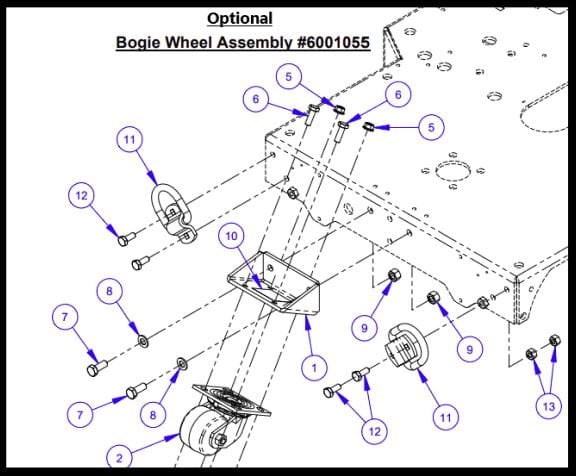

    • Bogey Wheel-Retractable rear 5th wheel eliminates lifting of rear of saw while turning



      CC6774DC SPECIFICATIONS

      Engine Brand/Model

       CAT C2.2 (DITAAC)
      Engine Regulation Tier 4 / EU Stage V
      Max Engine Power 74 HP @ 2800 RPM
      Peak Engine Torque 199 ft-lbs @1600 RPM
      Aftertreatment Devise Diesel Oxidation Catalyst + DPF
      Engine Air Filtration Dual dry element with pre-cleaner
      Battery 12 volt group 24 size
      Starter/Alternator Electric 2.7 hp / 85 Amp
      Fuel Capacity 9 gallon

      Specs

      Max depth of cut with 14" blade4.75" (4.5" flange)
      Max depth of cut with 20" blade7.75" (4.5" flange)
      Max depth of cut with 26" blade10.5" (5" flange)
      Max depth of cut with 30" blade12.5" (6" flange)
      Max depth of cut with 36" blade15" (6" flange)
      Max depth of cut with 42" blade 17.5" (7" flange)
      Blade Arbor Size1" diameter with drive pin
      Blade Flange TypeQuick disconnect
      Blade Shaft2" OD with L/R side mounting
      Blade Shaft Drive10 Kevlar V-Belts (3VX)
      Blade Raise-LowerElectro-Hydraulic power with push button
      Blade Depth Control
      		Electronic indicator and depth stop
      Drive Speed0-220 FPM (2.5 MPH)
      Rear Wheel TransmissionHydraulic pump driving dual hydraulic drive motors
      Parking BrakeAutomatic hydraulic lock at stop position
      Handlebar Adjustment3 position with variable extension
      Safety AlertsEmergency stop, blade over-speed, neutral start
      Front Wheel Dimensions8" X 3"
      Rear Wheel Dimensions10" X 3"
