Vendor: Diamond Products
WSE 2226 Wall Saw Complete System
Regular price
$113,241.00
Regular price
Sale price
$113,241.00
Unit price
per
Shipping calculated at checkout.
Sku:
5801534

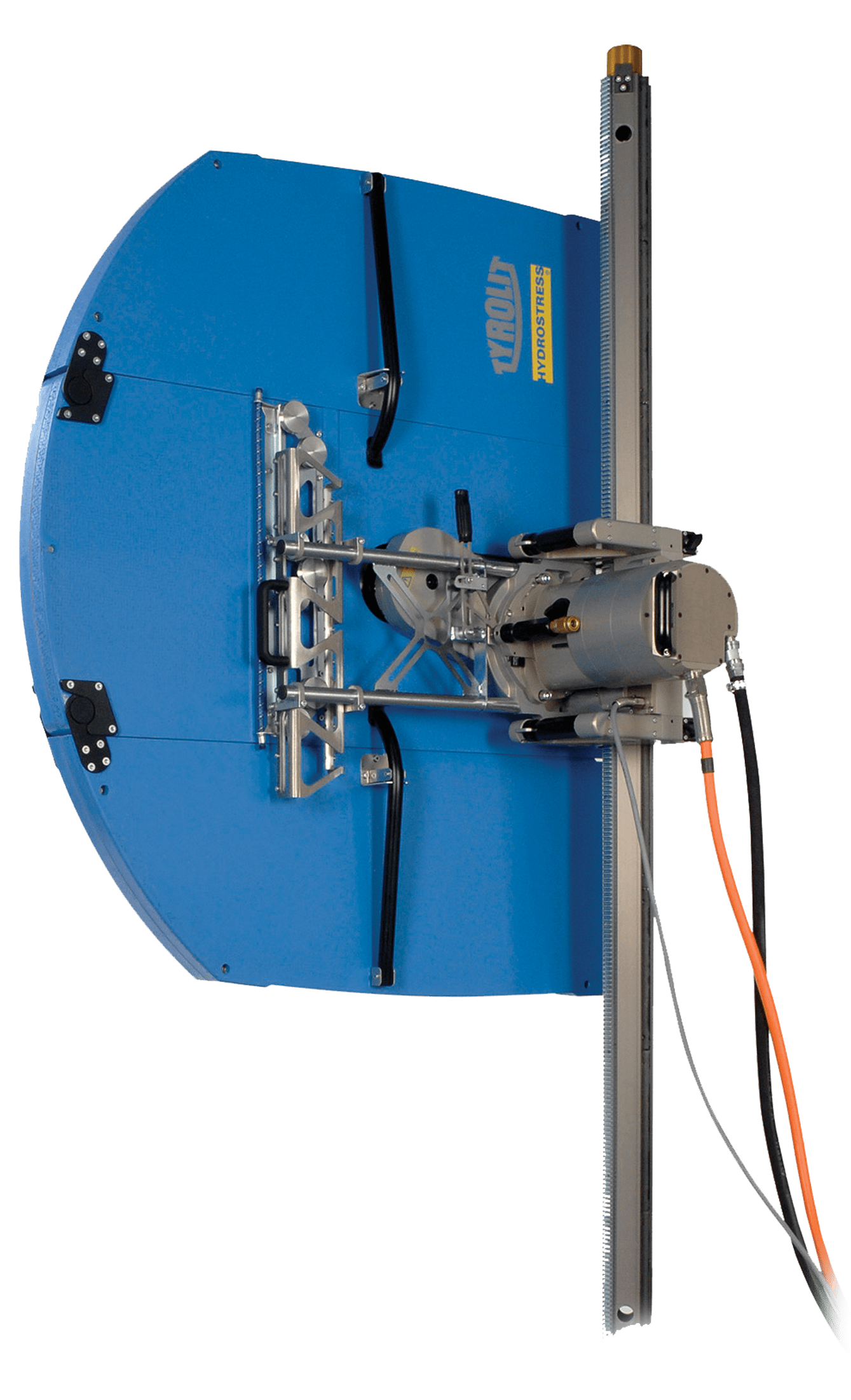

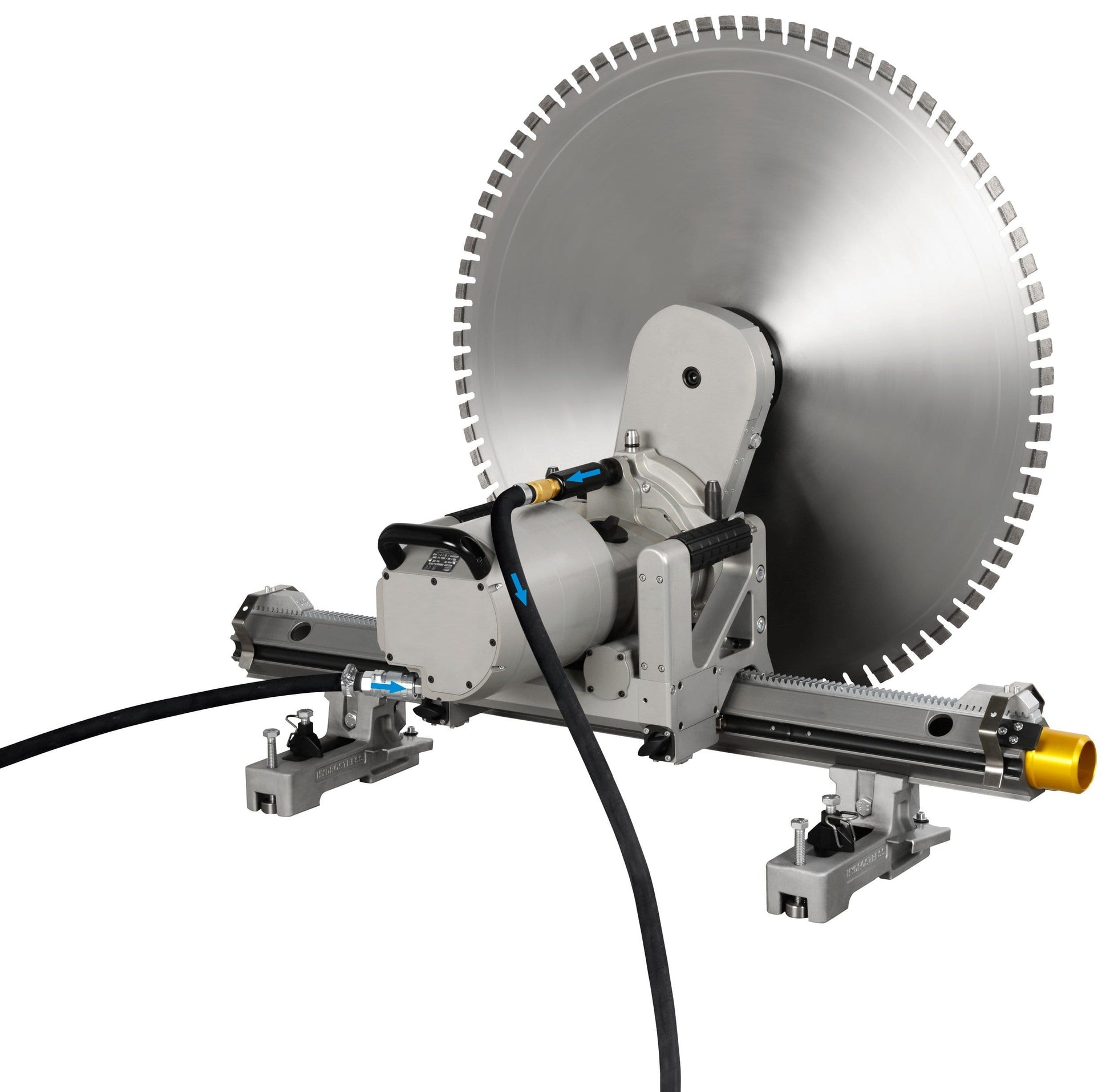

WSE2226 Electric high cycle wall saw is high power output for production cutting. Ability to cut 39" deep, electric power pack and remote control included with complete system.
Notified by email when this product becomes available
WSE 2226 Wall Saw Complete System
$113,241.00
WSE2226 COMPLETE WALL SAW SYSTEM
- Quick mounting blade flanges make easy removal of blade
- Up to 40" maximum starter blade without being in the cut
- Self locking-no brake necessary
- Improved seals
- Quick disconnect with 2 handles for fast removal and setup
- Largest diameter range in the industry (32" to 86")
- Safety clutch in front of gearbox for better protection
- Simple re-engage lever in case of blade jams
| Blade | |
| Maximum cutting depth | 39" |
| Maximum blade capacity | 86" |
| Blade size over 60" requires 60mm flange system (included with package) | |
| Maximum starter blade size | 40" |
| Blade mount | Quick-release flange |
| Design | |
| Infinitely adjustable swivel arm rotates 360 degrees | |
| 2 carrying handles with locking function | |
| Motor | |
| Water cooled high frequency motor with 2 speed gearbox | |
| Output at 63 amps | 26 kW, 35 hp |

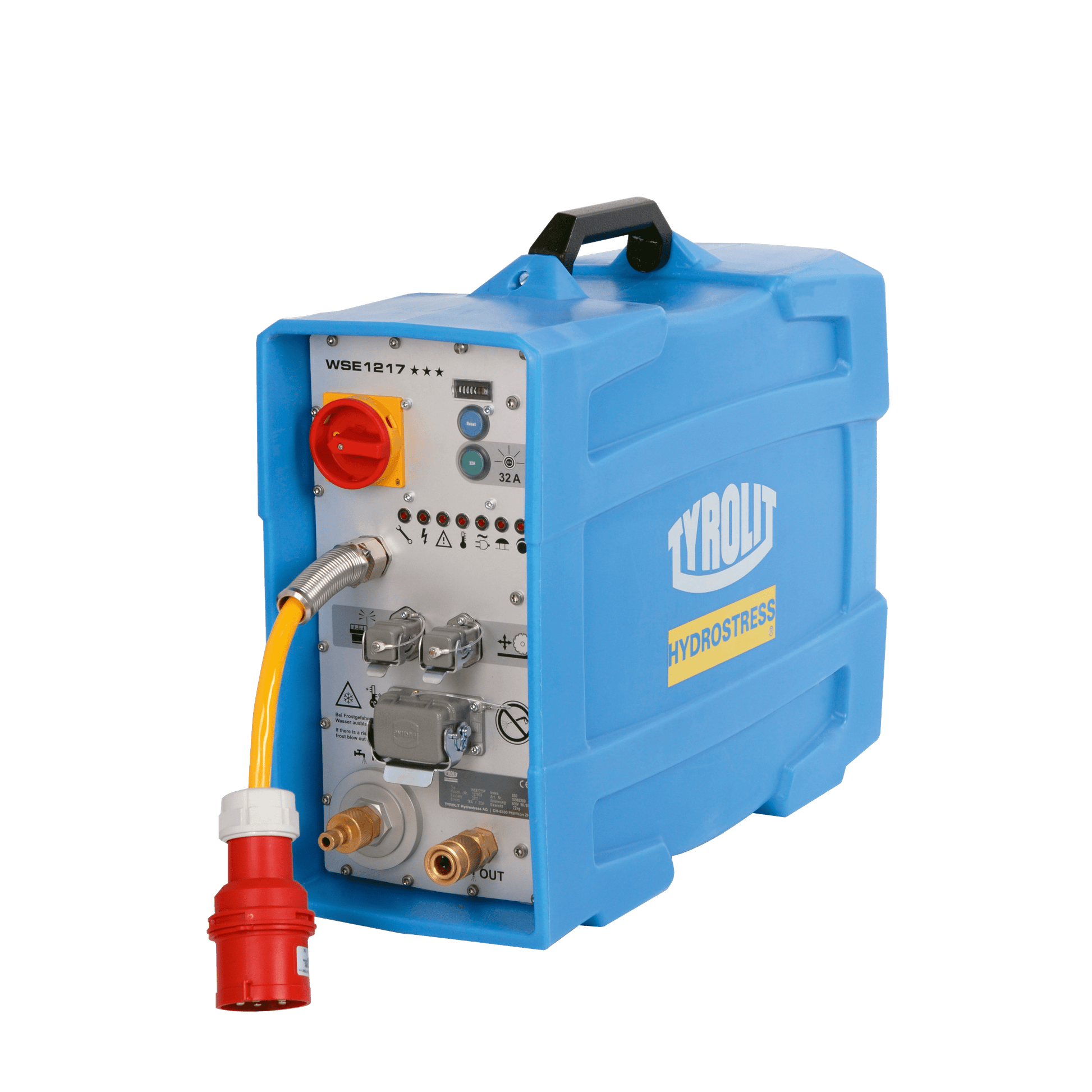

| Power Pack / Inverter Input | |
| Voltage | 460 volt |
| Frequency | 50Hz / 60Hz |
| Output Frequency | 400 Hz |
| Weight | |
| Wall Saw WSE1217 including feed motors without main drive blade motor | 66 lbs. |
| Electric main blade motor only | 53 lbs. |
| Minimum generator size requirement | 50 kW |
"
