WSE1621 Electric high cycle wall saw is high power output for production cutting. Ability to cut 28" deep, electric power pack and remote control included with complete system.
Notified by email when this product becomes available
WSE 1621 Wall Saw Complete System
$83,421.00
WSE1621 HIGH CYCLE COMPLETE WALL SAW SYSTEM
- Weighs less than other wall saws - 51.8 lbs. with head, 35 lbs. without

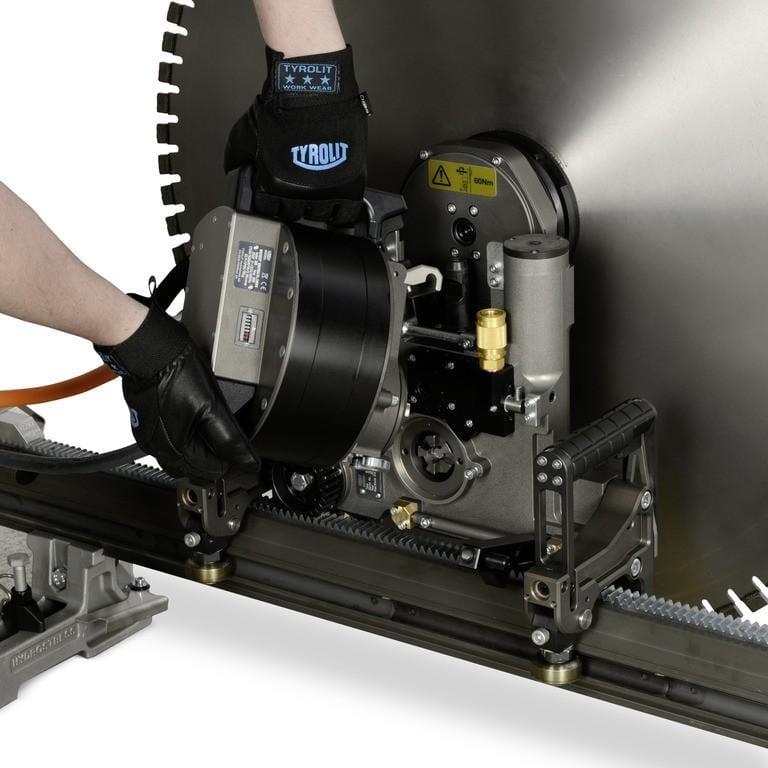

- More power water-cooled 20 kW HF motor
- Cut depths up to 28", blade capacity up to 63"
- Bi-Directional blade rotation

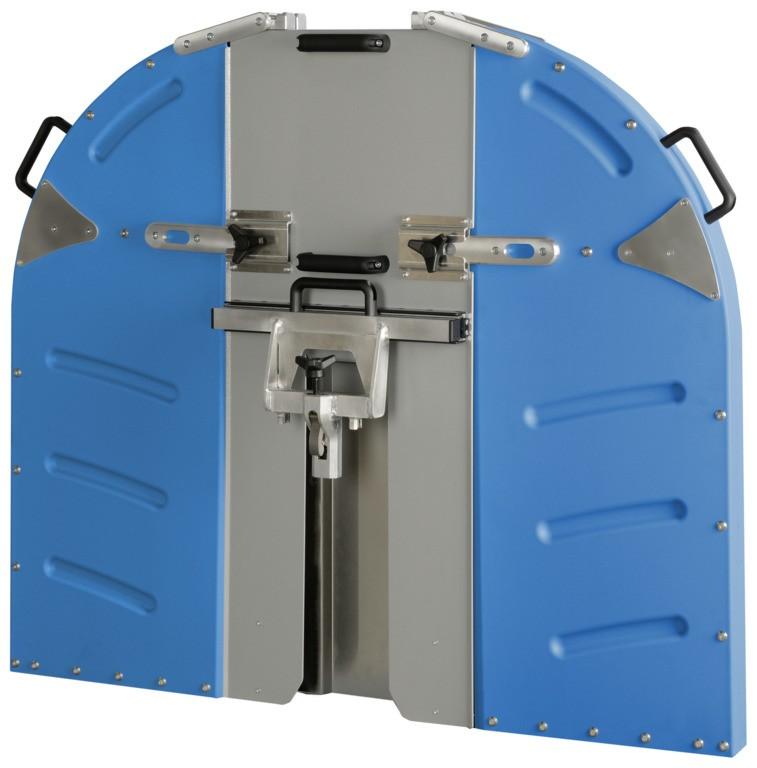

- Newly designed, ultra-light and robust, stay-level blade guard
- Compact drive motor and inverter with tool-free quick connection
- Innovative communication color interfaces
- Revolutionary P2 drive technology for extreme reliability without power loss

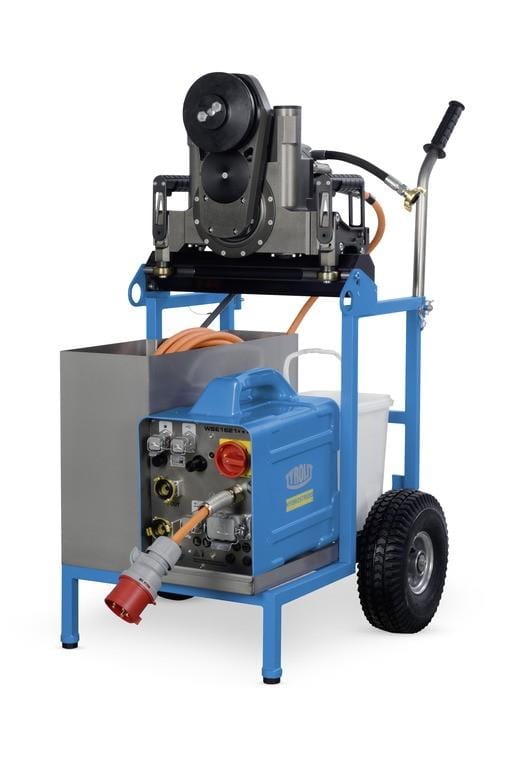

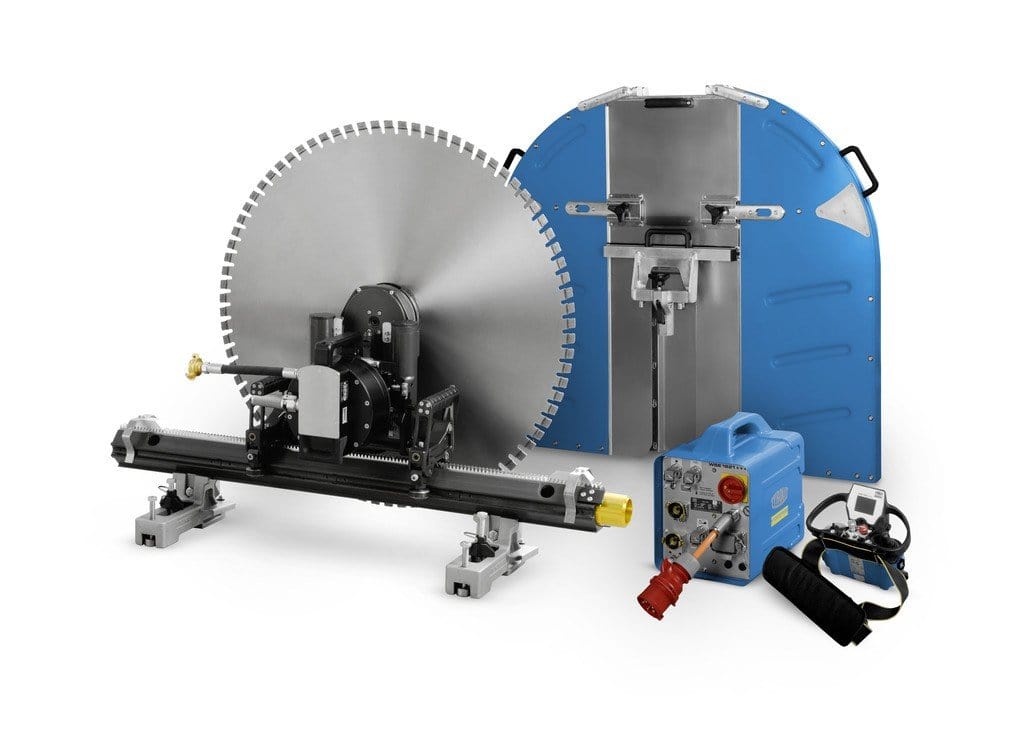

Includes: Main motor, remote control unit, trolley cart, 40" blade guard, 42" aluminum track, 86" aluminum track, Tools, 4 V-track aluminum feet
| Blade | |
| Maximum cutting depth | 28" |
| Maximum blade capacity | 63" |
| Maximum starter blade size | 35" |
| Blade mount | Quick-release flange |
| Motor | |
| Water cooled high frequency motor | Yes |
| Generator Requirement | 480V- 3PH / 30KW Generator |
| Output at 32 amps | 17 kW, 22.79 hp |
| 400-480 Voltage | 50 / 60 Hz |
| Weight | |
| Wall Saw WSE1621 | 51.8 lbs. |
| Electric main blade motor only | 33 lbs. |
| Radio remote control | 4 lbs. |
| Blade guard (39") | 47 lbs. |
| Track - 43" | 21 lbs. |
| Track - 65" | 33 lbs. |
| Track - 75" | 36 lbs. |
| Track - 86" | 41 lbs. |
| Trolley Cart | 46 lbs. |
"
