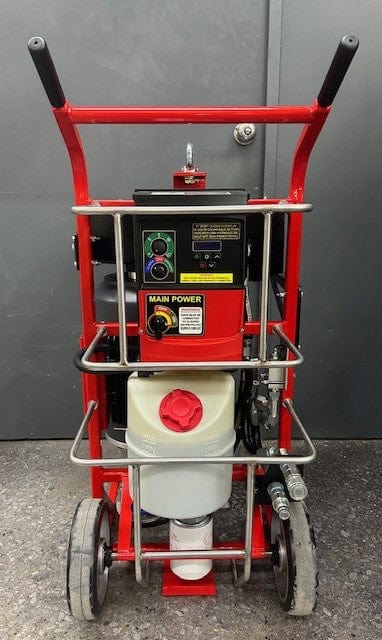

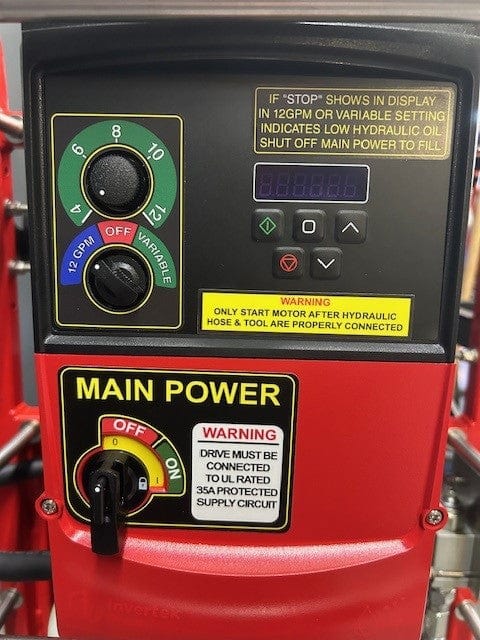

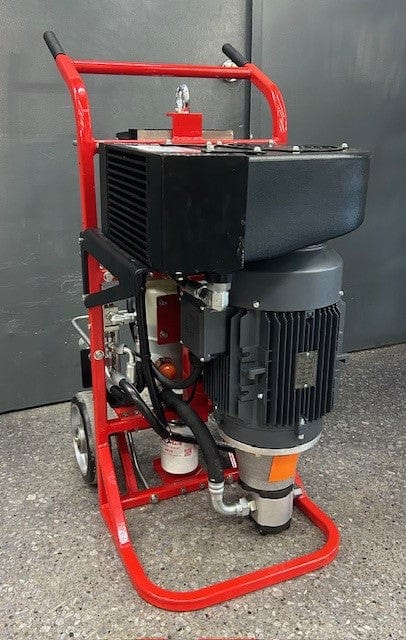

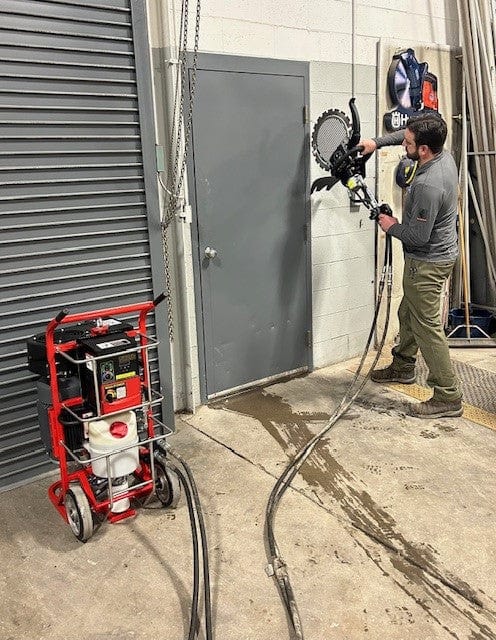

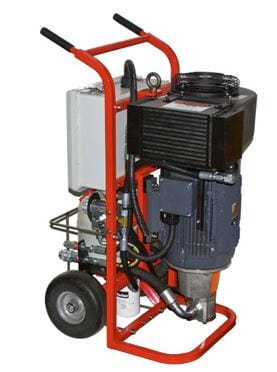

Ultra versatile unit is great for powering hydraulic equipment like handsaws, ringsaws, chainsaws, core drills, breakers and more. From standard service work like an egress window to extreme applications like an underground confined space or the penthouse on the top of a commercial building, this unit gets the job done. Limited power availability is not a problem because this unit includes a variable frequency motor drive. This lowers the amp draw on start-up with included soft start and gives fully adjustable flow from 0-15 GPM. Unit runs great on generators with an output of 23KW+ like the Makinex 23K and can also be wired to run on 230V-3PH as well. Hydraulic oil temps will stay cool due to a direct drive cooling system. Cooling air is directed thru the air-oil heat exchanger any time the unit is running (regardless if the tool is being used.) This design is far superior to any water cooled design that only cools during cutting or drilling and requires a cold water source to be effective. Intuitive controls are smartly placed out of harms way keeping operation easy and less failure prone. Pneumatic tires and a well placed balance point make this unit easily maneuverable by one person thru a variety of terrains.
Benefits
Applications
Pressure, PSI | 2,000 |
Flow, GPM | 0-12 |
Weight (with oil), lbs | 300 |
Hydraulic connections | 1/2" Flat faced couplers |
Motor | Electric |
Voltage, V | 480V or 230V |
Amp | 27A Starting / 11A Running |
Phase | 3-Phase |
Min Generator Size, KW | 23 |
Output, HP | 15 |
Size L x W x H | 24"L x 19"W x 42"H |
