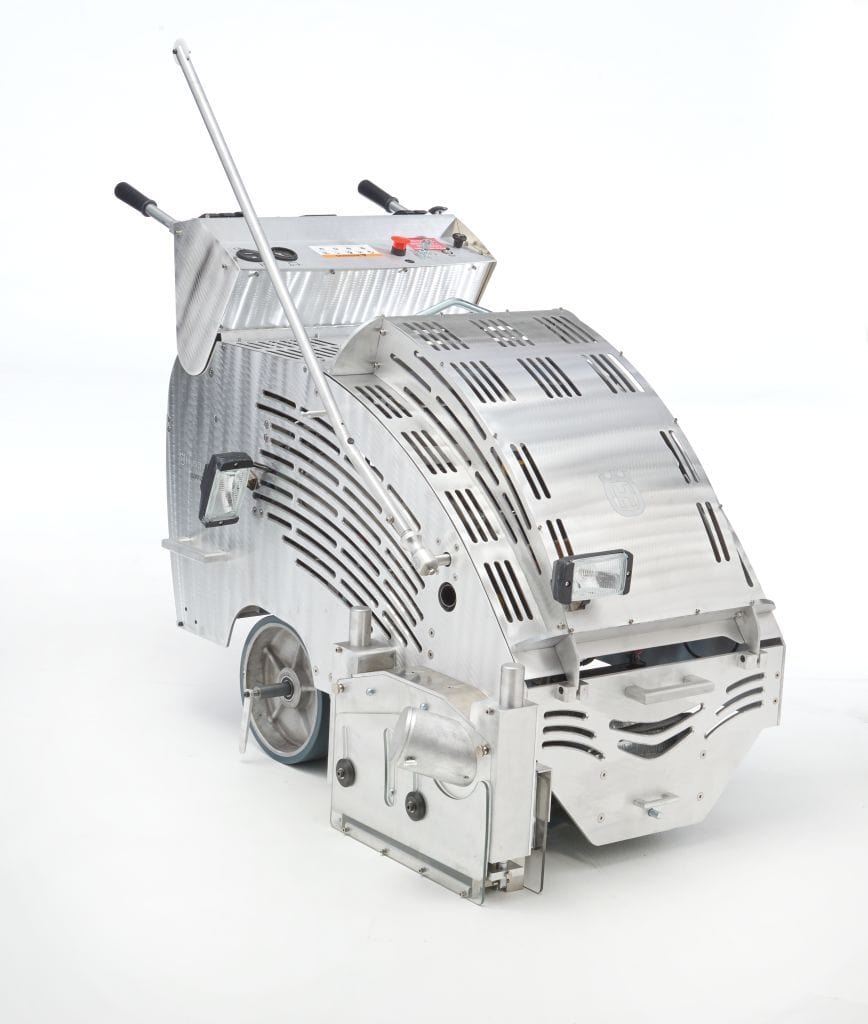

The Husqvarna Soff-Cut 5000 Paver self-propelled gas saw is designed for highway and paving applications. Features include a 25 hp engine with overhead valves, heavy-duty air cleaner, electric start, full pressure lubrication, hydraulic valve lifters, and a mechanical fuel pump. Several blade widths can be used, allowing different joint widths and crack control simultaneously. The unique saw design allows for a 4" depth of cut.
Perfect high-production saw for airport runways and highways.
|Cutting depth, in||4"||3.5"||3"||2"|
As concrete hydrates and begins to set, it develops internal stresses. The objective in controlling shrinkage cracking is to relieve these stresses before they seek their own relief in the form of a random crack.
With the Husqvarna Soff-Cut Ultra Early Entry dry-cutting system, joints are saw cut in the Green Zone - within the first hour or two after finishing. The Husqvarna Soff-Cut technology is based on the combination of the Soff-Cut blade and skid plate. The up-cutting rotation of the blade combines with the skid plate, which applies pressure to the surface to prevent chipping and spalling. To effectively control shrinkage cracking, Soff-Cut allows you to cut in the Green Zone as part of the finishing process.
|Blade range, in||14" / 12"|
|Depth of cut, in||3"-4" / 2"-3"|
|Engine Specifications||Kohler CH740|
|Bladeshaft diameter, in||1-1/2"|
|Maximum power, HP (kW)||25 (18)|
|Average bladeshaft, rpm||3,100|
|Blade flanges, in||4-3/4"|
|Displacement, cu in||44|
|Cylinders / cycle||2/4|
|Fuel capacity, gal||3.16|
|Air filter||Heavy duty canister|
|Axle front / rear, in||1" / 1"|
|Blade guard type||Enclosed|
|Number of belts||1 (4 band 3VX)|
|Blade depth control||Electric|
|Oil capacity, qt||2|
|Bore / Stroke, in||3.3 / 2.6|
|Maximum weight crated, lbs||593|
|Maximum weight uncrated, lbs||495|
|Dimensions uncrated, pointer and blade guard up, handles in||95" x 30-1/2" x 41"|
