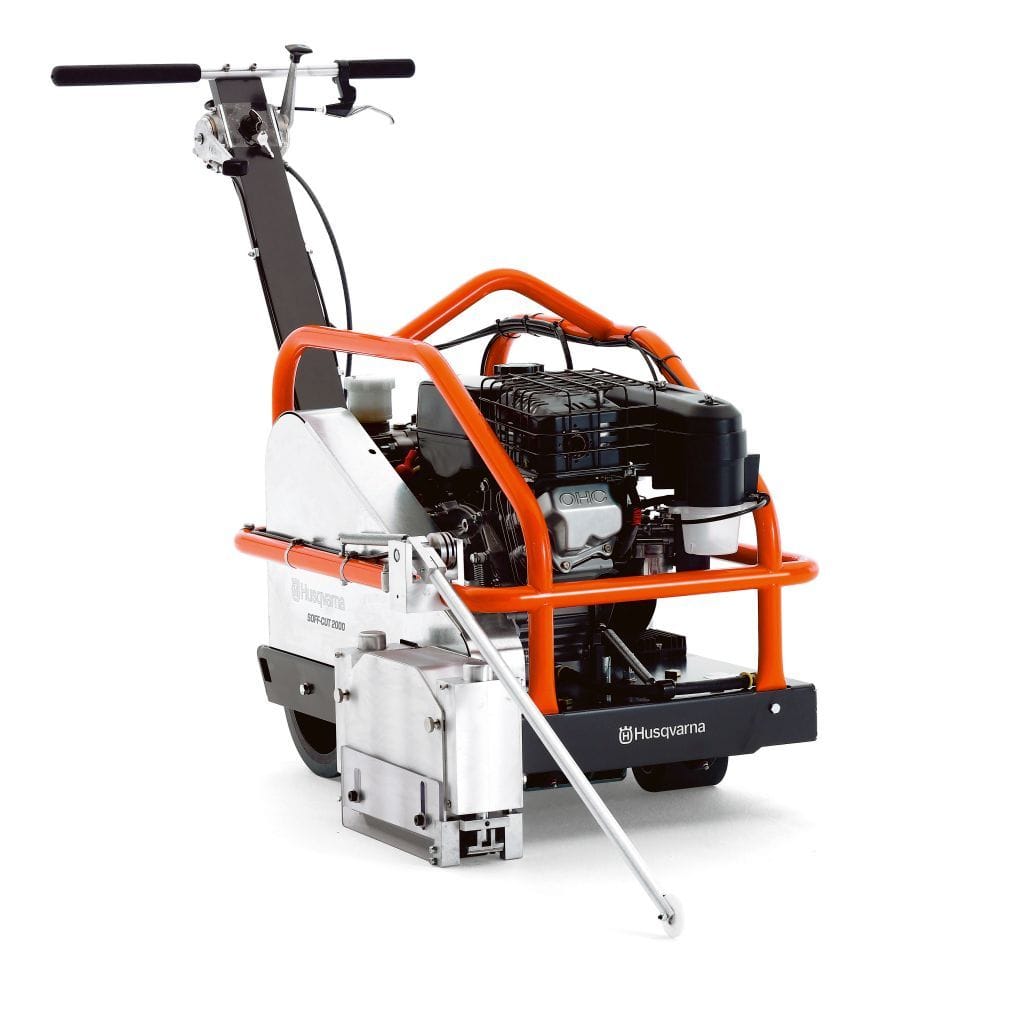

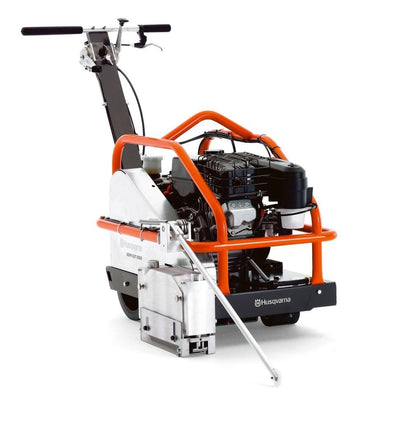

A self-propelled dry-cutting gas saw ideal for medium to heavy-duty commercial, industrial and paving applications. Features include a 9 hp engine with automatic compression release for easy starting, chain driven overhead cam system, superior cooling, excellent lubrication system, and a cyclone air cleaner to increase engine longevity.

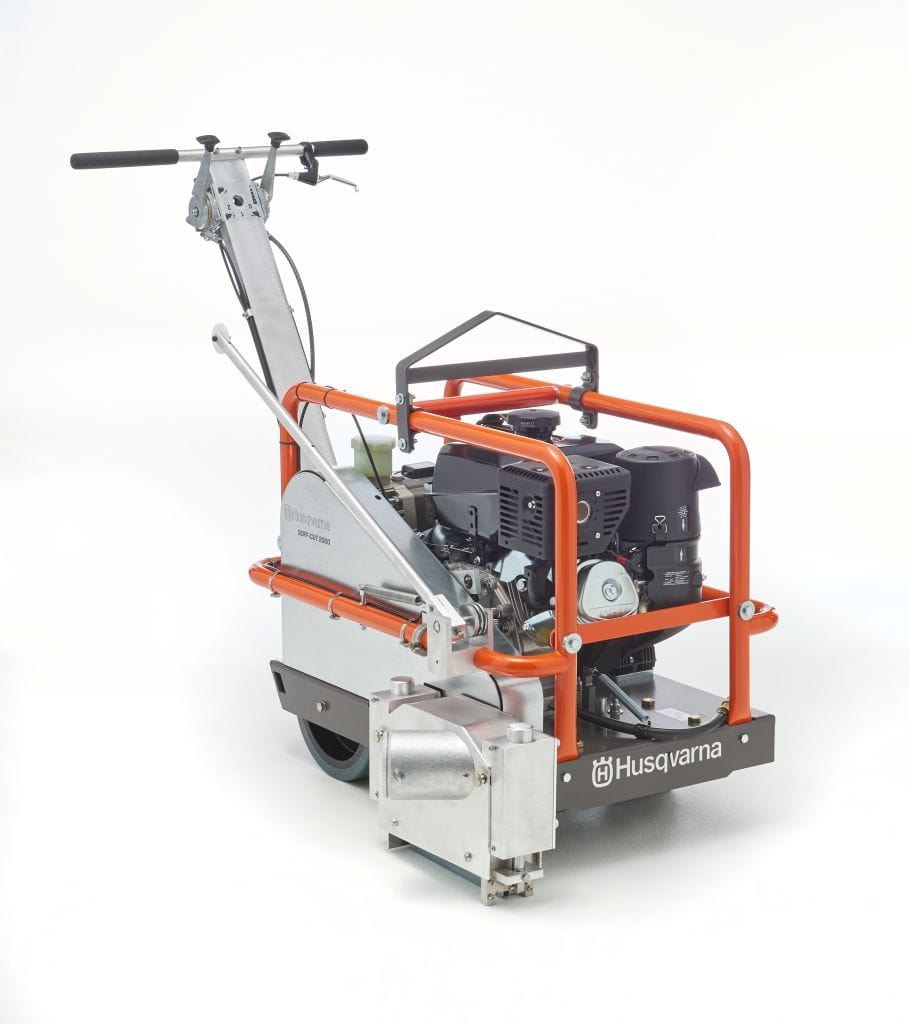

A high-production saw ideal for medium to large commercial, industrial and paving applications.
|Cutting depth, in||1-1/2"||7/8"|
As concrete hydrates and begins to set, it develops internal stresses. The objective in controlling shrinkage cracking is to relieve these stresses before they seek their own relief in the form of a random crack.
With the Husqvarna Soff-Cut Ultra Early Entry dry-cutting system, joints are saw cut in the Green Zone - within the first hour or two after finishing. The Husqvarna Soff-Cut technology is based on the combination of the Soff-Cut blade and skid plate. The up-cutting rotation of the blade combines with the skid plate, which applies pressure to the surface to prevent chipping and spalling. To effectively control shrinkage cracking, Soff-Cut allows you to cut in the Green Zone as part of the finishing process.
|Blade range, in||10" - 9"|
|Depth of cut, in||1-1/2" - 7/8"|
|Engine Specifications||Kohler CH395|
|Bladeshaft diameter, in||1-1/4"|
|Maximum power, HP (kW)||9 (7)|
|Average bladeshaft, rpm||3,600|
|Blade flanges, in||4-1/4"|
|Displacement, cu in||16.9|
|Cylinders / cycle||1/4|
|Fuel capacity, gal||1.59|
|Air filter||Dry type dual element w/ precleaner|
|Axle front / rear, in||1" - 1"|
|Blade guard type||Enclosed|
|Number of belts||1 (2 band 3VX)|
|Blade depth control||Manual|
|Oil capacity, qt||1.05|
|Bore / Stroke, in||2.9 / 2.3|
|Maximum weight crated, lbs||388|
|Maximum weight uncrated, lbs||317|
|Dimensions uncrated, pointer and blade guard up, handles in||94" x 29" x 34"|
