Shibuya TS-405 PRO Angle Base Core Drill Rig
Regular price
$5,654.00
Regular price
Sale price
$5,654.00
Unit price
per
Shipping calculated at checkout.
Sku:
DR1079

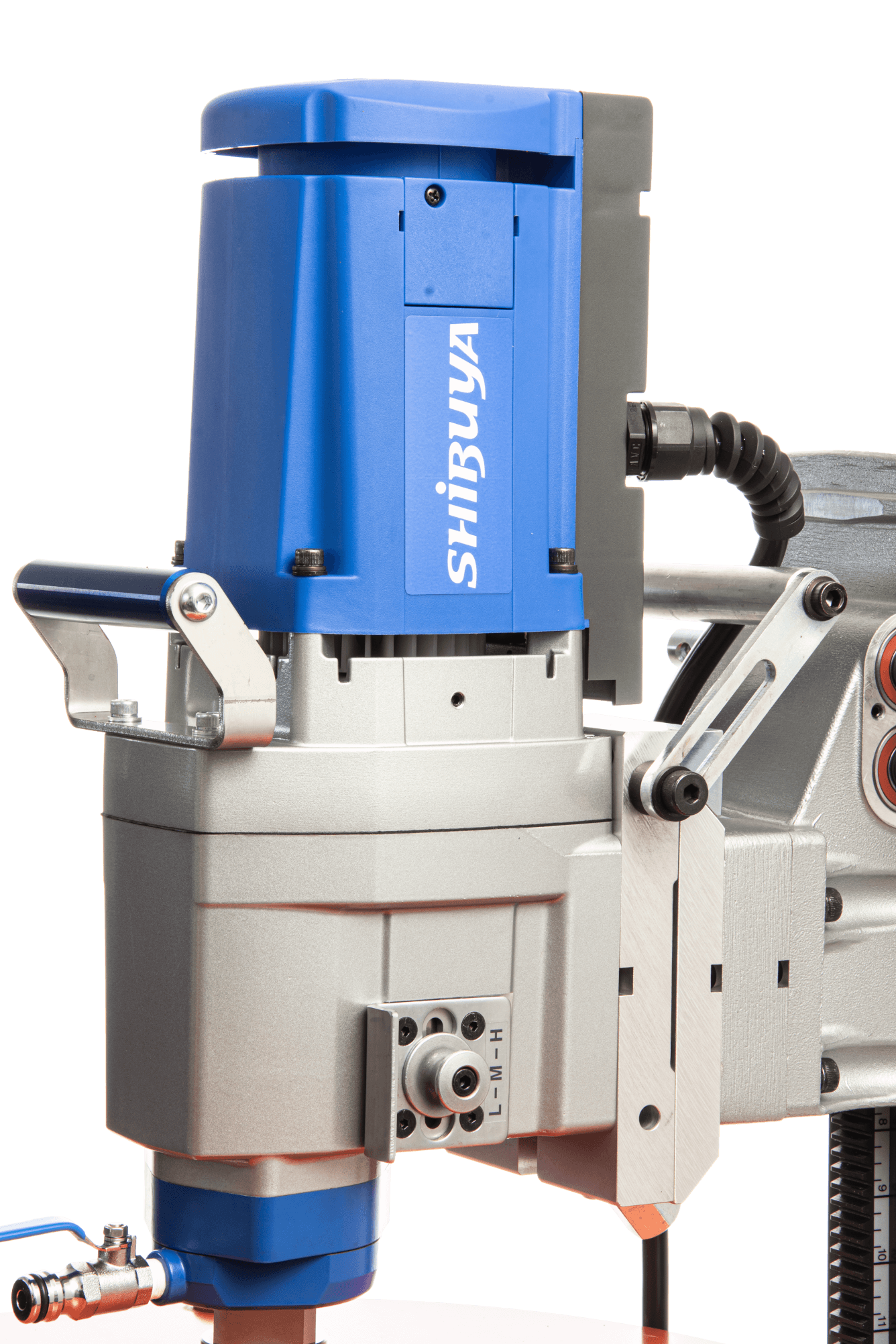

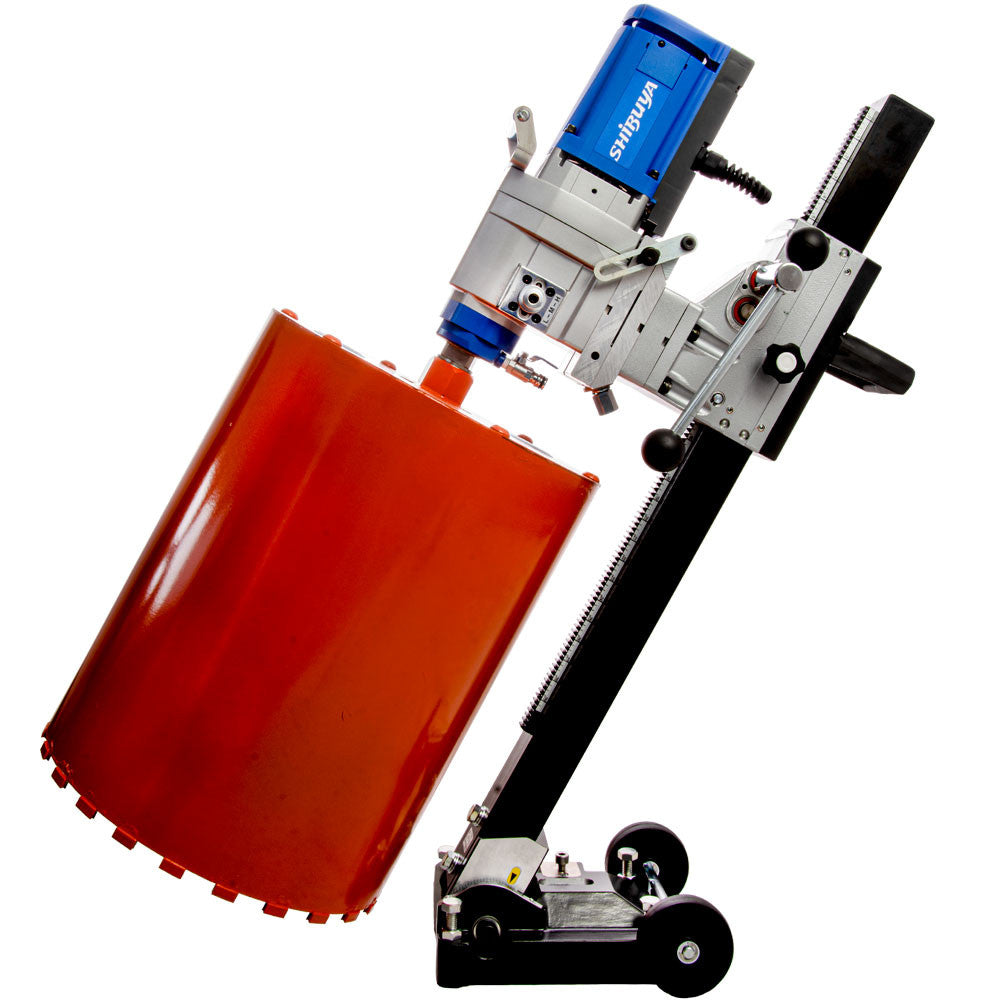

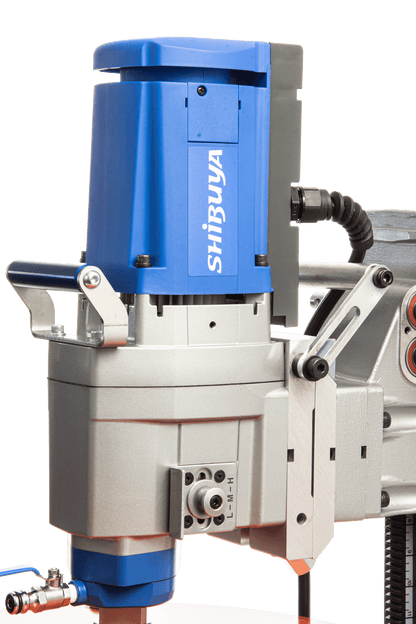

Shibuya TS-405 PRO Angle-Base Core Drill Rig — the same 3450-watt, 3-speed H-2231 powerhouse as the fixed-base TS-405 PRO, on an adjustable angle base for angled coring from 45° to 90°. Drills up to 18" bits (20.75" with the optional 2-3/8" spacer).
Notified by email when this product becomes available
Shibuya TS-405 PRO Angle Base Core..
$5,654.00
Shibuya TS-405 PRO Angle-Base Core Drill Rig — the same 3450-watt, 3-speed H-2231 powerhouse as the fixed-base TS-405 PRO, on an adjustable angle base for angled coring from 45° to 90°. Drills up to 18" bits (20.75" with the optional 2-3/8" spacer).
Features & Benefits:
- 18" maximum bit capacity (20.75" with optional spacer)
- Adjustable angle base for angled drilling
- 3-speed motor (300 / 700 / 1400 RPM no-load), 3450 watts, 120V/30A
- Quick-disconnect motor mount included
- Heavy 2-3/8" hybrid column, 39.4" (1000mm), 24" stroke, wheeled base
- 1-1/4"-7 spindle thread; 2-year warranty; made in Japan
| Model | TS-405 PRO |
|---|---|
| Motor | H-2231 |
| Power Type | Electric |
| Voltage | 110V - 120V |
| Amperage | 30 Amps |
| Power | 3450 Watts |
| Drill Speeds | 3-Speed |
| RPM (No Load) | 300 / 700 / 1400 RPM |
| Max Bit Capacity | 18" (20.75" w/ optional spacer) |
| Quick Disconnect | Included |
| Column Length | 39.4" / 1000mm |
| Column Size | 2-3/8" x 2-3/8" Hybrid |
| Drilling Stroke | 24" |
| Base Style | Angle Base |
| Wheels | Yes |
| Spindle Thread | 1-1/4"-7 |
| Warranty | 2 Years |
| Made In | Japan |
