Multivibe Wildcat WC120 Roller Screed Power Unit - Honda GX120
Power unit only - roller tubes and self-aligning end plugs sold separately.
Notified by email when this product becomes available
$3,685.00

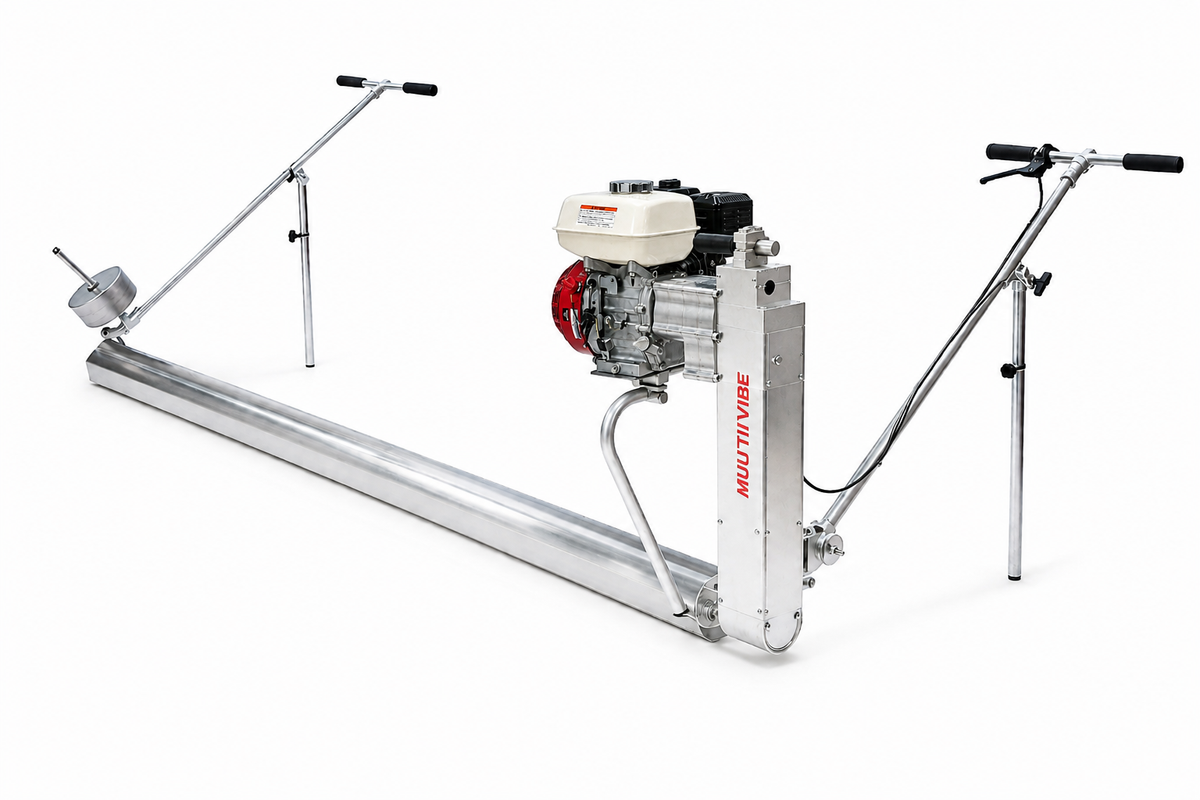

Multivibe Wildcat WC120 Roller Screed Power Unit - Honda GX120
Power unit only. Roller tubes and self-aligning end plugs sold separately - one tube and two end plugs are required for a complete setup.
The Wildcat WC120 is a gas-powered roller screed: a spinning carbon steel tube, pulled backward over the pour by two operators, cuts the high material into a roll in front of the tube and leaves a flat, consolidated surface without vibrating the slab. It strikes off form to form on sidewalks, cart paths, trails, slabs on grade and on inclines, and it is the tool of choice for placing pervious concrete. The 120cc Honda engine and 300 RPM gearbox give it the torque to turn either a 4.5" or a 6" tube up to 24 ft long, and the whole power unit lifts into a pickup bed.
Features and Benefits:
- Honda GX120 four-stroke gas engine with a high-speed 300 RPM gearbox
- Drives 4.5" and 6" diameter carbon steel roller tubes up to 24 ft long
- Opposite-end pull handle included; the sprung throttle stops the tube the moment the operator's hand leaves the trigger
- Spring-pin quick connect to the self-aligning end plugs, so tube changes take minutes
- Screeds and consolidates by friction rather than vibration, so the surface keeps its aggregate and density
- 70 lb power unit with no hydraulics, hoses or scheduled gearbox maintenance
| Brand | Multivibe - Wildcat series |
|---|---|
| Model | WC120 roller screed power unit |
| Engine | Honda GX120 four-stroke gasoline |
| Gearbox | High-speed 300 RPM |
| Tube Compatibility | 4.5" and 6" carbon steel roller tubes (sold separately) |
| Maximum Tube Length | 24 ft |
| Handles | Drive-end handle with sprung (release-to-stop) throttle; opposite-end pull handle included |
| Tube Mount | Spring-pin quick connect to self-aligning end plugs TP45 (4.5") or TP6 (6"), sold separately |
| Fuel / Oil | Unleaded gasoline; 4-stroke 10W-30 engine oil |
| Weight | 70 lb power unit (manufacturer) |
| Warranty | 12 months on the power unit |
| Applications | Sidewalks, cart paths, trails, slabs on grade and on inclines, pervious concrete |
