Vendor: Minnich Manufacturing
Minnich Multi-Purpose Sprayer with 50 ft Hose Kit
Regular price
$4,850.00
Regular price
Sale price
$4,850.00
Unit price
per
Shipping calculated at checkout.
Sku:
A13690-00050
Notified by email when this product becomes available
Minnich Multi-Purpose Sprayer with 50 ft..
$4,850.00
Minnich Multi-Purpose Sprayer with 50 ft Hose Kit — Honda GX160 Powered Drum-Mount Sprayer

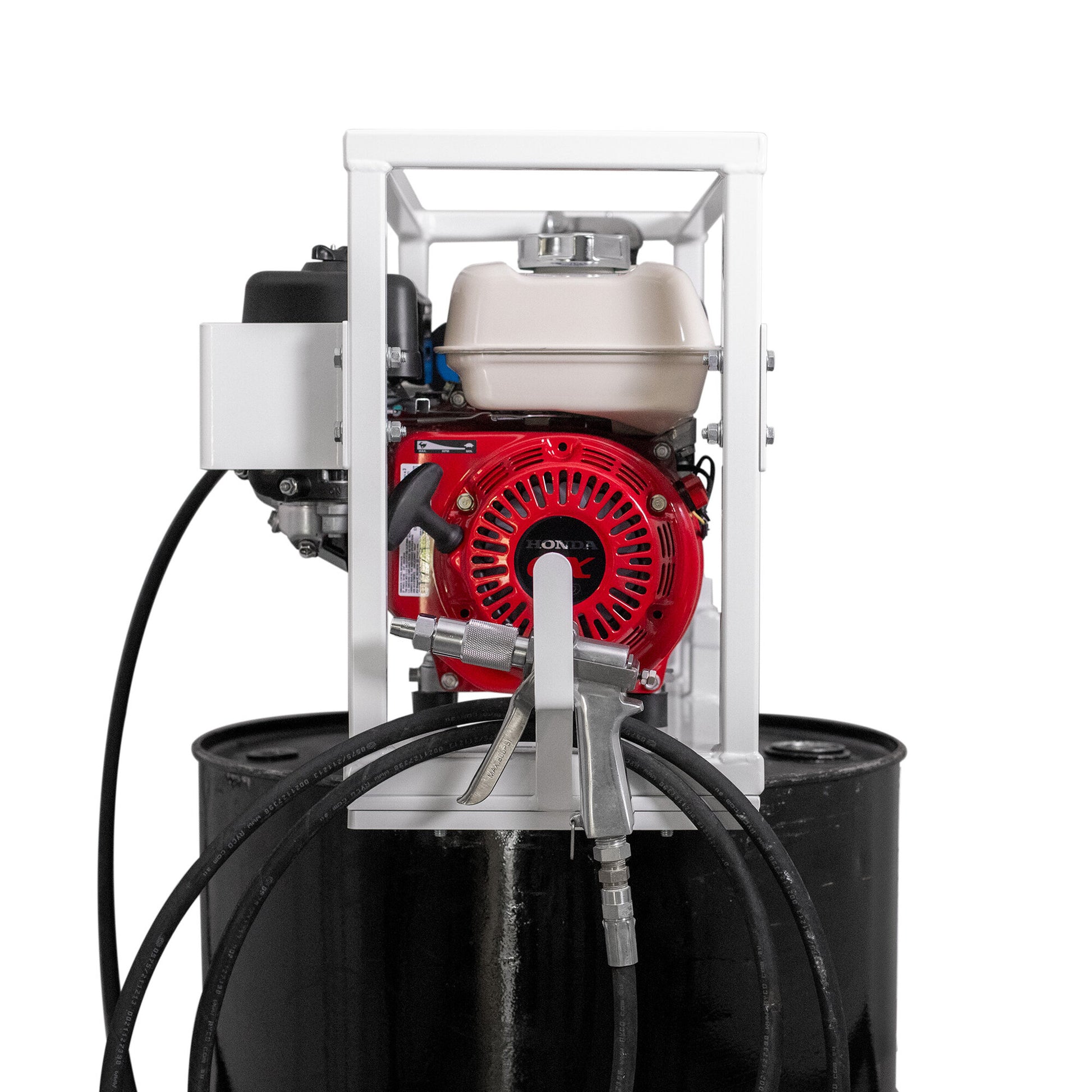

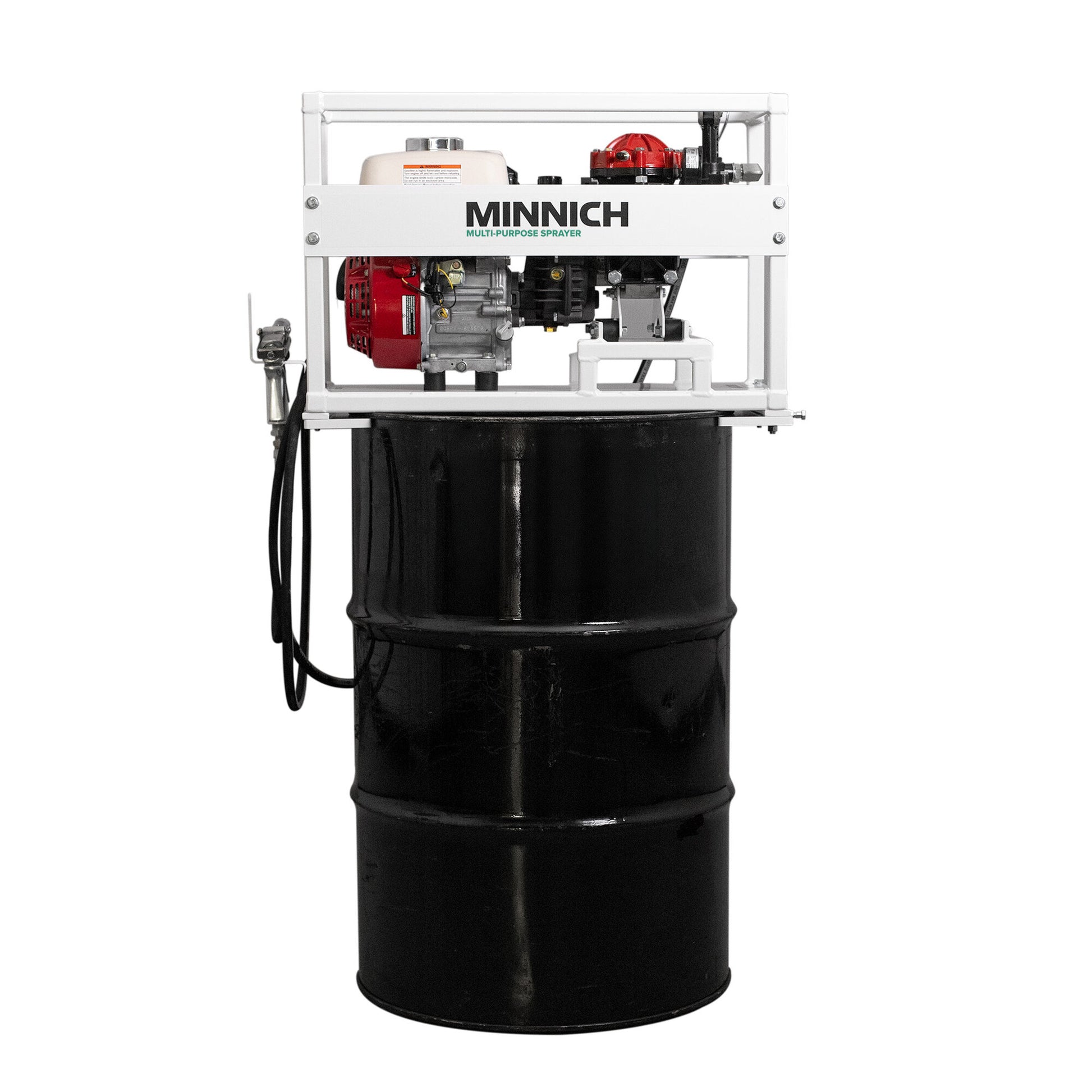

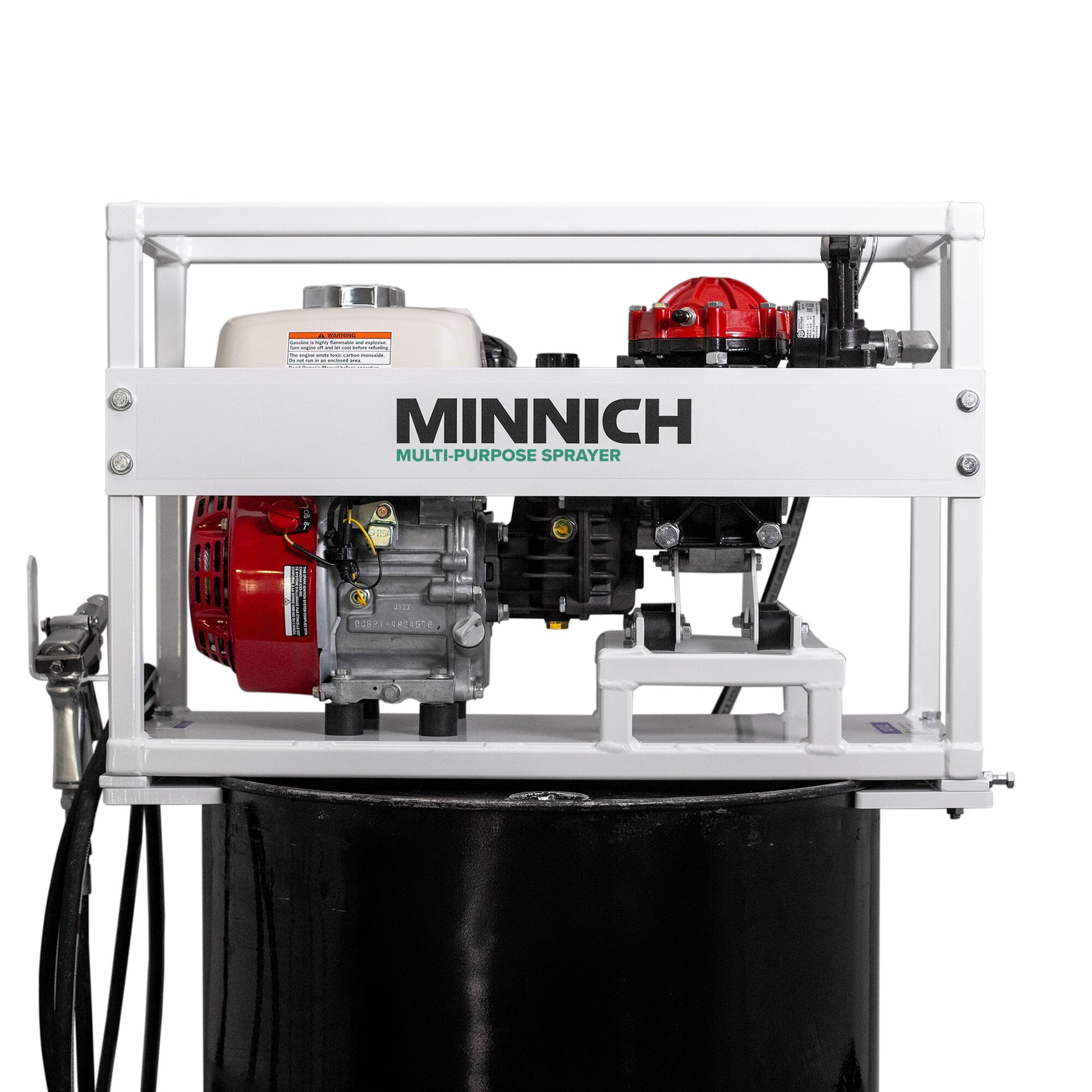

The Minnich Multi-Purpose Sprayer is built to speed up spray work on concrete jobsites and cut labor costs. It mounts directly to a standard 50-gallon drum — or draws from totes up to 550 gallons — and lays down even, consistent coverage of release agents, water-based sealants, and curing compounds. A commercial-grade Honda GX160 engine drives a diaphragm pump rated at 9.5 GPM and up to 350 PSI, and this configuration ships with the 50 ft hydraulic hose kit, 1" intake hose for maximum performance, and an adjustable fan spray gun.
Barrel not included. Designed to be used from a truck, work platform, dolly, or skid.
Features and Benefits:
- Honda GX160 5.5 HP commercial engine — dependable starting and long service life

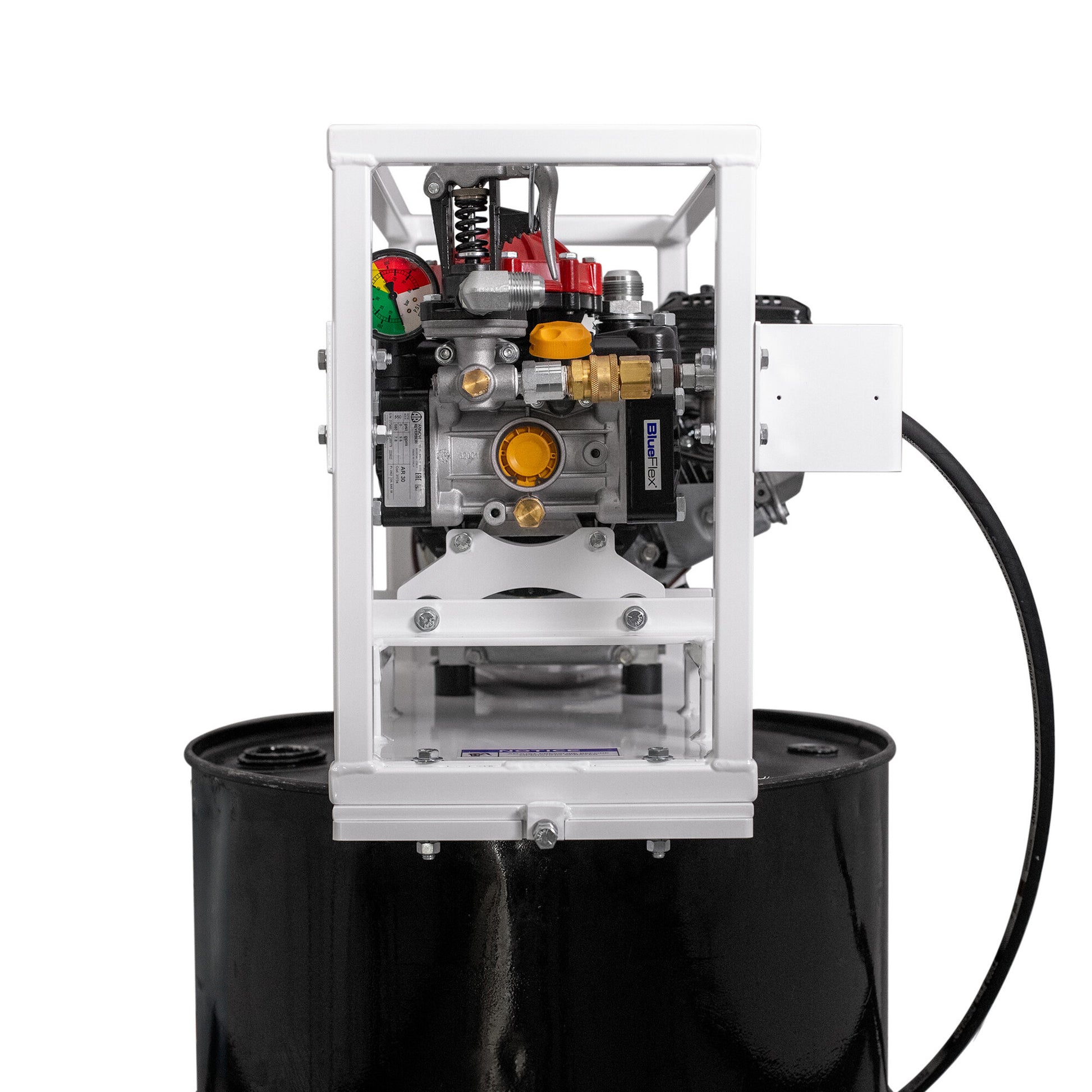

- High-output diaphragm pump: up to 9.5 GPM flow at up to 350 PSI
- Handles products with up to 35% solid content — sprays cures, sealers, and release agents without clogging
- Mounts to standard 50-gallon drums; draws from totes up to 550 gallons
- 50 ft hydraulic discharge hose kit with 1" intake hose
- Adjustable fan spray gun for even, controlled coverage
- Straightforward setup and operation — one operator can spray straight from the drum
| Engine | Honda GX160 |
|---|---|
| Horsepower | 5.5 HP |
| Pump Type | Diaphragm |
| Maximum Flow Rate | 9.5 GPM |
| Maximum Pressure | 350 PSI |
| Hose Kit Length | 50 ft |
| Hose Type | Hydraulic |
| Sprayer Gun | Adjustable Fan |
| Maximum Solid Content | 35% |
| Intake Hose | 1 in |
| Discharge Hose | 3/8 in |
| Return Hose | 3/4 in |
| Drum / Tote Compatibility | 50-gallon drums; totes up to 550 gallons |
| Weight | 134 lbs |
