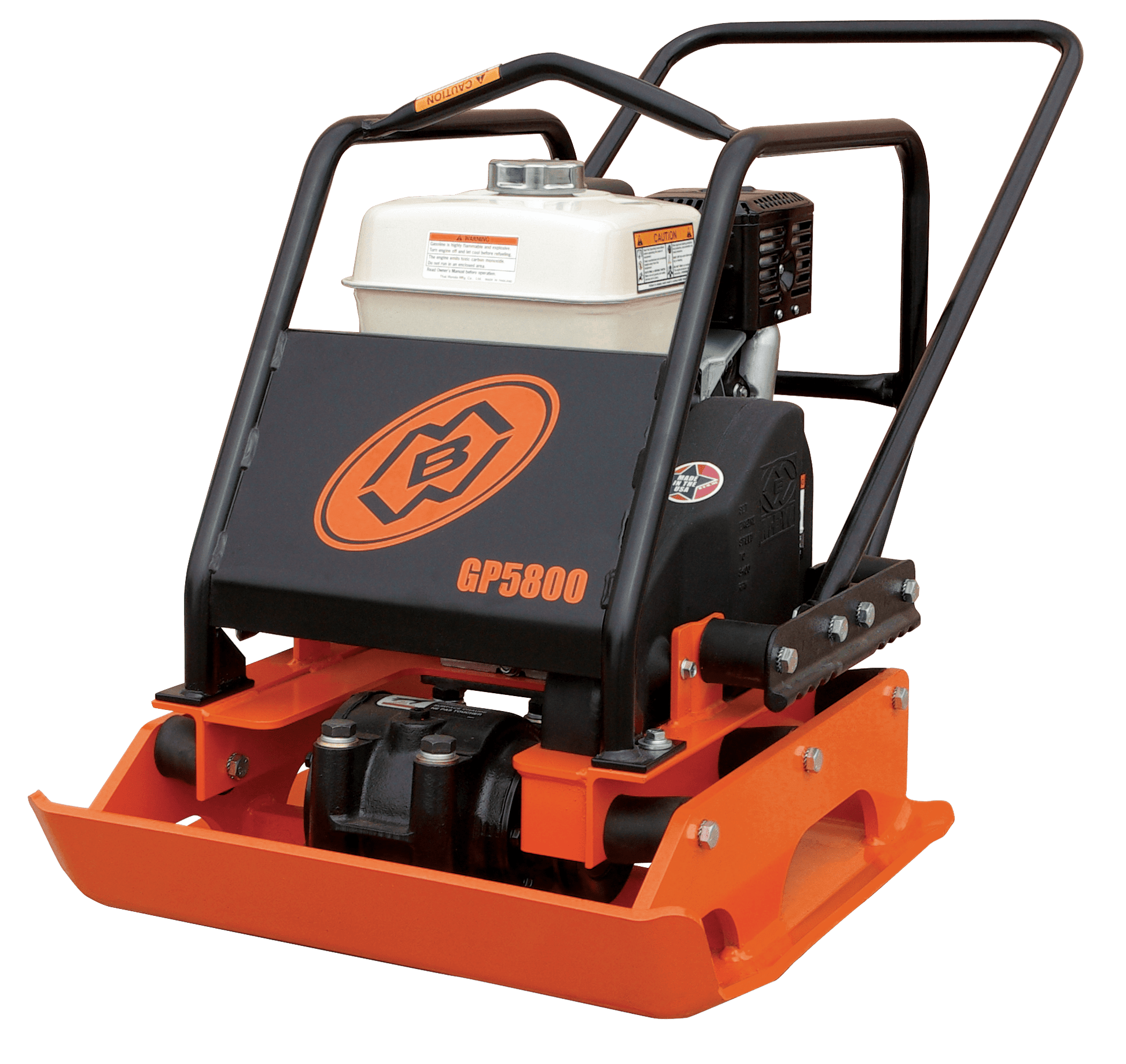

GP5800 MBW 23" Vibratory Plate Compactor 5000 Series
The GP5800 is an upgrade of model GP5500. GP5800 maintains its predecessor's outstanding performance characteristics while improving the design in terms of ergonomics, ease of service and product life expectations.
Couldn't load pickup availability
Product Reviews
Product Reviews

Notified by email when this product becomes available

$3,720.00
Additional Info
GP5800 MBW 21" PLATE COMPACTOR
Features
- Standard with Honda engine
- Operating weight 288 lbs. with 20" compaction depth
- High production compactor
The GP5800 is an upgrade of model GP5500. GP5800 maintains its predecessor's outstanding performance characteristics while improving the design in terms of ergonomics, ease of service and product life expectations. Among these are a removable, easily serviced exciter assembly, superior suspension for improved engine isolation and lower hand/arm vibration and standard protective cage surrounding engine. This high production compactor travels up to 130 ft/min, generates .101 inch amplitude for deep penetration of backfill materials and is unmatched on mid-sized to large commercial and infrastructure applications.
Engine option | Honda GX270 |
Operating weight | 288 lbs. |
Plate size WxL | 23" x 24" |
Amplitude | .094" |
Centrifugal force | 5,800 lbs. |
Exciter speed | 4,800 vpm |
Compaction depth | Up to 20" |
Travel speed | Up to 130 ft/min |
Compaction area | 14,950 sq. ft. / hour |
