M4 Complete Anchor Core Drill Rig

SKU: 4240010

Have the versatility to use a hand-held or a stand up drill rig. With the core size capacity of 6" when mounted and 3" hand-held

$2,933.00

Shipping calculated at checkout.

Product options:

Motor

Qty

We accept

Description
Specs
Reviews
SHIPPING

Description

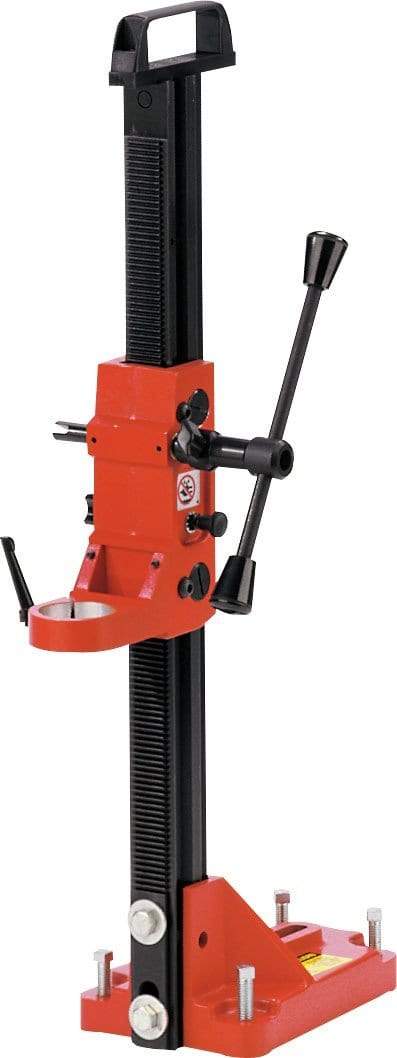

DIAMOND PRODUCTS M4 COMPLETE ANCHOR CORE DRILL RIG

Reversible slide handle (for use on left or right side)
High strength, hard anodized 1-5/8” x 2” aluminum column
Top carrying handle
Quick release motor mount
Carriage lock
Leveling bolts on all model bases

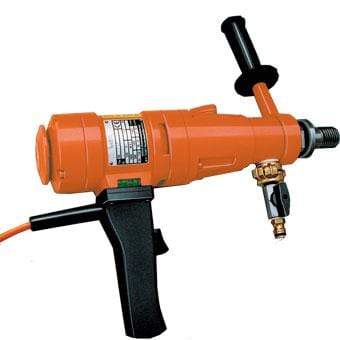

Hand-held option
4 leveling screws on base
Light weight and portable
Combo bases have angle braces for drilling up to 45 degrees
4 adjustable slide bearings provide superior carriage rigidity
Great for the general contractor (basic drilling) or plumber (hand-held drilling), electrical or mechanical contractor
Quick change over from vacuum to anchor base

M-4 Drill Rig offers the ultimate versatility for coring 1" - 6" holes. Use hand-held for convenience and portability. Any core over 3" should be used with drill stand. Anchor option for lightweight maneuverability, see our M-4 Combination drill to anchor via vacuum pump.

Specs

Motor	Amps	RPM's
CB733	20	550/1000/1600
CB744	25	385/530/975/1340
Milwaukee 4004	20	300/600
Milwaukee 4096	20	450/900
Milwaukee 4005	20	600/1200
Milwaukee 4097	15	500/1000
Weka DK22	23	550/1120/1680
Weka DK22S	23	800/1640/2430
