Vendor: Diamond Products

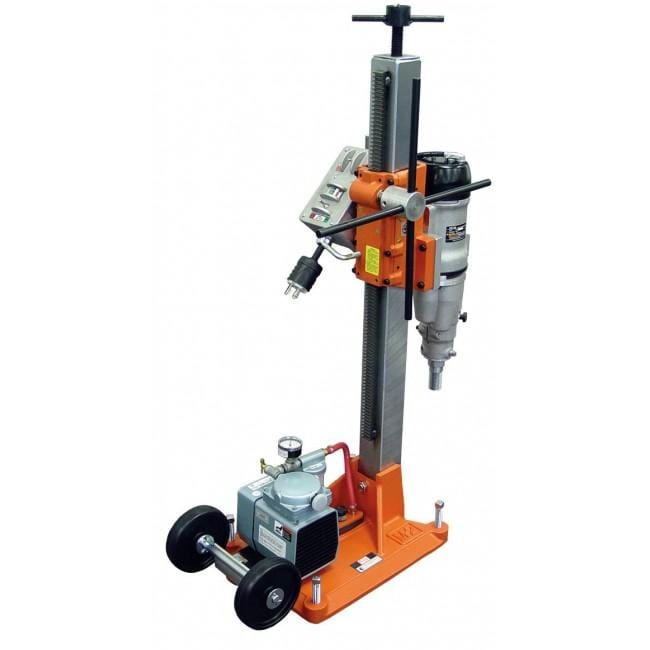

M2 Complete Combination Core Drill Rig
Regular price
$3,656.00
Regular price
Sale price
$3,656.00
Unit price
/
per
Shipping calculated at checkout.
Sku:
4245118
M-2 Core Cut 2-7/8" precision made, chrome plated square column mast, the #1 Pro Rig in the USA
Couldn't load pickup availability

Notified by email when this product becomes available

M2 Complete Combination Core Drill Rig
Additional Info
DIAMOND PRODUCTS M2 COMPLETE COMBINATION CORE DRILL RIG
10" Standard Bit Capacity, 36" with Spacers
14" Standard Bit Capacity (CB733, CB744)
- Heavy duty rig for larger jobs and the professional driller
- Dual switch/outlet control panel with amp meter (except for CB733 and CB744 models with LED amp meter)
- 2-7/8” precision made, chrome plated square column (mast)
- Vacuum pump for quick mounting to flat surface without drilling an anchor hole (Included with combination rig)
- Combo base is a quick change over from vacuum to anchor base by removing vacuum pump
- 6” wheels for easy mobility
- 4 Leveling Screws on base
- Larger mast to withstand high torque and large diameter bits
- The 4-spoke handle allows the operator to easily apply feed pressure
- Optional roller carriage allows for more precise drilling
M-2 Core Drill Rig is made from very strong material to hold large / heavy core bits. Durable option for constant drilling in rough conditions.
There are thousands of ways to build your custom rig. Please call Ace Cutting if you have any questions.
Motor | Amps | RPM's |
CB733 | 20 | 550/1000/1600 |
CB744 | 25 | 385/530/975/1340 |
Milwaukee 4004 | 20 | 300/600 |
Milwaukee 4096 | 20 | 450/900 |
Milwaukee 4005 | 20 | 600/1200 |
Milwaukee 4097 | 15 | 500/1000 |
Weka DK22 | 23 | 550/1120/1680 |
Weka DK22S | 23 | 800/1640/2430 |
