Vendor: ICS

ICS 890F4 Flush Powerhead Hydraulic Concrete Chainsaw

Regular price $4,649.00
Regular price Sale price $4,649.00
Sold out
Shipping calculated at checkout.
Sku: 566113

Caret Down
View full details
ICS 890F4 Flush Powerhead Hydraulic Concrete Chainsaw
ICS 890F4 Flush Powerhead Hydraulic Concrete..
Caret Down

Additional Info

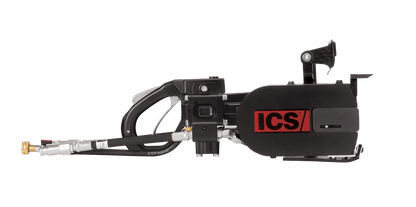

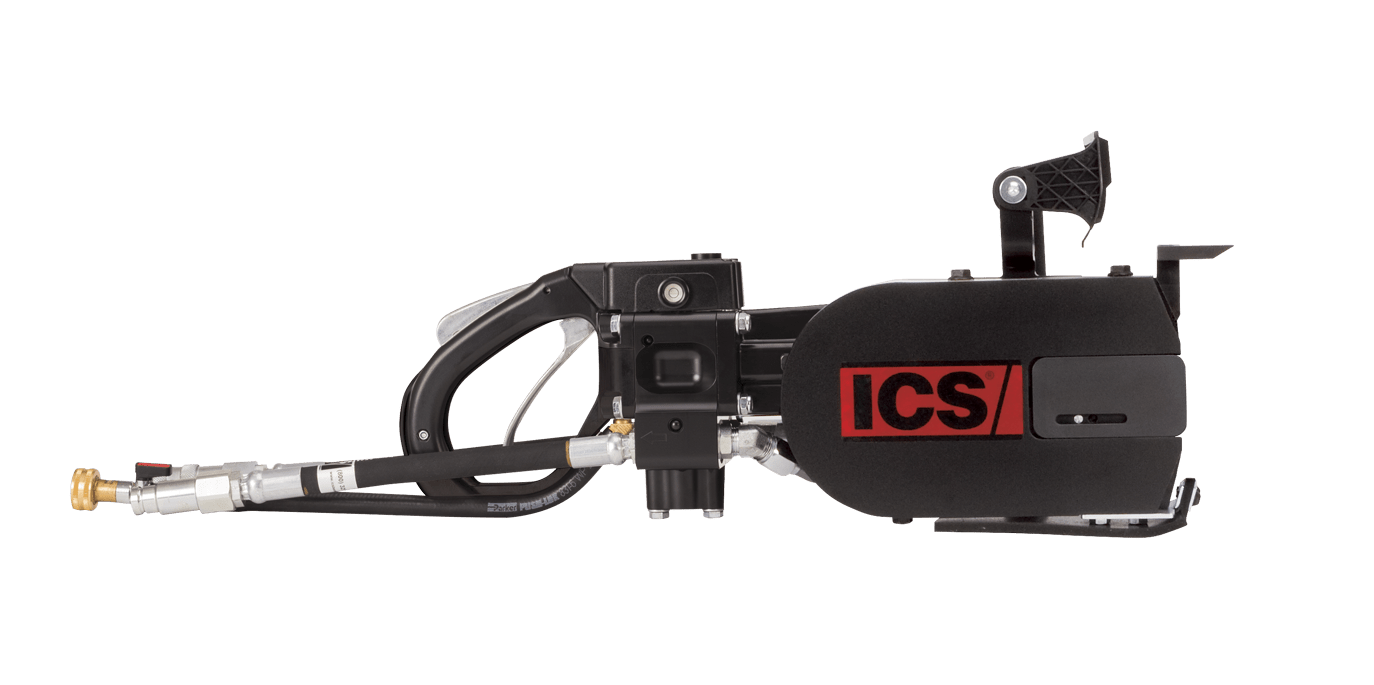

ICS 890F4 FLUSH POWERHEAD ONLY - BAR AND CHAIN NOT INCLUDED, AVAILABLE SEPARATELY OR WITH PACKAGE



Features & Benefits

  • 1' hydraulic whip hose included
  • Requires 20 PSI pressurized water.  Do not use standard pump-up water cans as they do not provide enough water.  Standard garden hose connection.
  • Redesigned rear handle offers improved ergonomic cutting and greater durability
  • 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
  • New drive sprocket design allows for quick replacement in the field
  • New secondary water shut off valve for flow metering and water conservation



Proper Chain Tension is very important.  Rule of thumb is a diamond chain can be pulled freely around the guide bar by hand easily without binding.  Proper chain tension should allow drive links to hang below bar.  Click here for full ICS Chain Tension Tip Sheet.

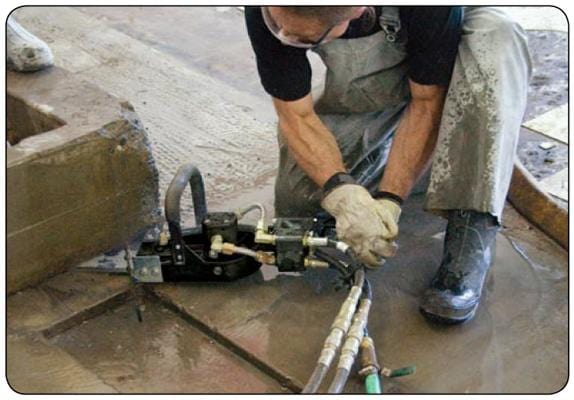

ICS 890F4 Flush Powerhead allows for even more versatility with the flush cutting capabilities.  No fumes for safe use, more horsepower and torque behind the saw with ergonomic design to reduce operator fatigue.



MORE INFO AND DESCRIPTION

The ICS 890 Series hydraulic cutting system offers the superior strength of FORCE4® technology. From the redesigned, more durable rear handle, to the easy to replace drive sprocket, this power cutter is engineered to stand up to your toughest jobs. In a package that exceeds industry standards this sleek powerhouse is packed with features designed to make it work as hard as you do.

8 GPM Motor
Weight27.3 lbs with 15" bar and chain
Bar lengthUp to 25"
Motor speed6,100 rpm
Powerhead dimensions LxWxH23" x 10.5" x 9.5"
Torque122 in-lbs
Horsepower6 hp
Hydraulic supply8 gpm @ 2,500 psi
Nose level107 dB @ 3 ft
Water supplyMinimum 20 psi
12 GPM Motor
Weight27.3 lbs with 15" bar and chain
Bar lengthUp to 25"
Motor speed6,500 rpm
Powerhead dimensions23" x 10.5" x 9.5"
Torque170 in-lbs
Horsepower8 hp
Hydraulic supply12 gpm @ 2,500 psi
Noise level107 dB @ 3 ft
Water supplyMinimum 20 psi
