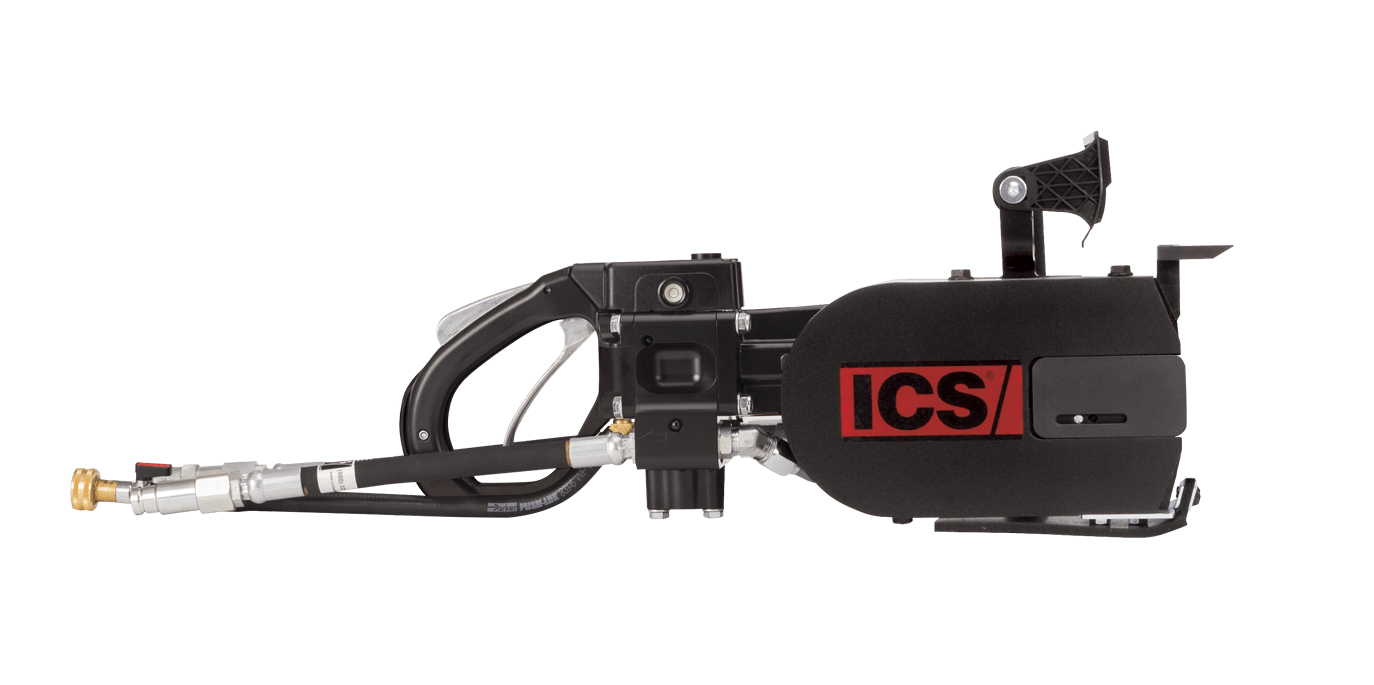

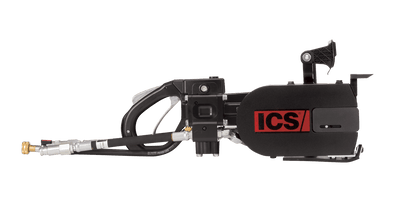

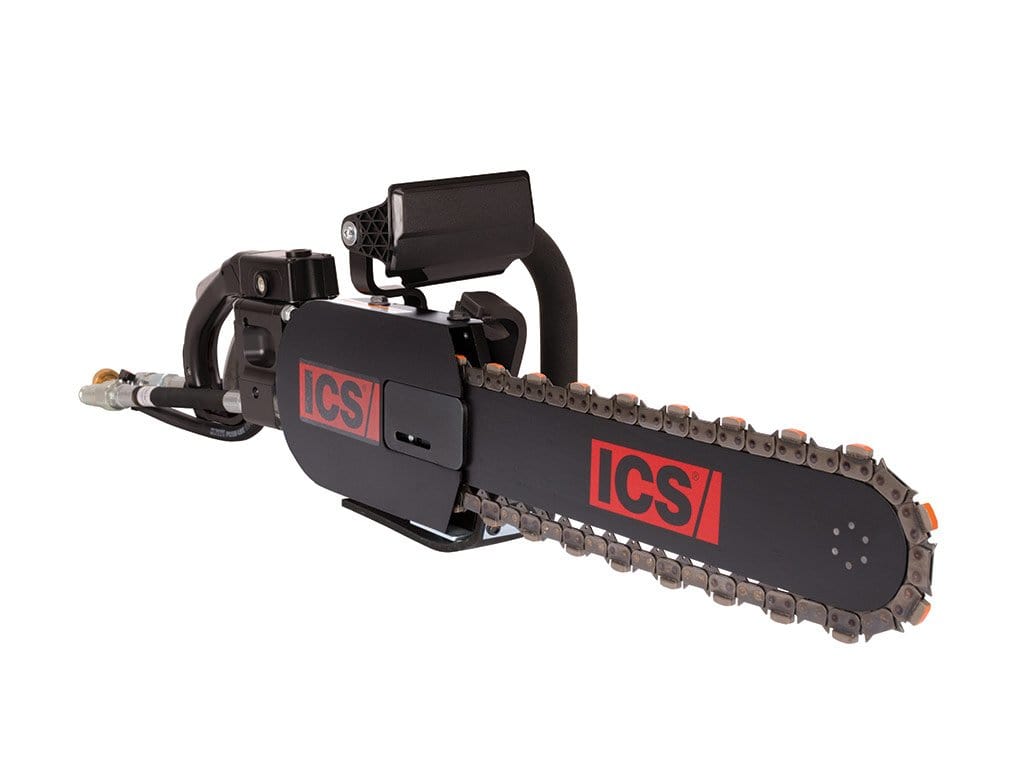

ICS 890F4 Flush Hydraulic Concrete Chainsaw Bar and Chain Package with Free Extra Chain

SKU: 10-566351

The ICS 890F4 Flush hydraulic chainsaw has a redesigned rear handle, 3 scratch resistant bubble levels, and new drive sprocket design for quick replacement in the field.  Package includes concrete bar and chain, select from different length options.  Ideal for indoor cutting when fumes need to be limited.

Regular price $4,916.00
Sale price $4,916.00
Shipping calculated at checkout.
Quantity must be 1 or more

Product options:

We accept payment
  • Description
  • Specs
  • Reviews
  • FILES
  • SHIPPING

Description

ICS 890F4 FLUSH HYDRAULIC CONCRETE CHAINSAW BAR AND CHAIN PACKAGE INCLUDES ONE EXTRA FREE CHAIN VALUE UP TO $1,024

Features & Benefits

  • Ace Cutting stocks the 890F4 chainsaw with 8' whip hose - this added feature makes the saw much easier to handle and operate
  • Redesigned rear handle offers improved ergonomic cutting and greater durability
  • Requires 20 PSI pressurized water.  Do not use standard pump-up water cans as they do not provide enough water.  Standard garden hose connection.
  • 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
  • New drive sprocket design allows for quick replacement in the field
  • New secondary water shut off valve for flow metering and water conservation

Proper Chain Tension is very important.  Rule of thumb is a diamond chain can be pulled freely around the guide bar by hand easily without binding.  Proper chain tension should allow drive links to hang below bar.  Click here for full ICS Chain Tension Tip Sheet.

For the straightest cuts use the Step Cut Method.  Score the line first about 1/2" deep next deepen the cut about 2" then plunge all the way through and complete the cut.  Plunge cutting generally results in a straighter start.  If the cut does not start straight, it will not finish straight.  When cutting heavy rebar, slowly rock the saw over the rebar, maintaining gray slurry water, so that you're always cutting concrete as well as steel.  This will help keep diamonds exposed, expect less chain life when cutting heavy rebar.

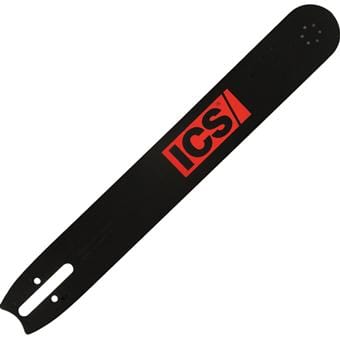

If cuts are consistently crooked, turn the guide bar over and use the other side.  Note: normal life of a guide bar is 2-3 chains.  Heavy rebar can shorten bar life.  With new chains it may be necessary to open up the diamonds, do this by making a few cuts into an abrasive material such as cinder block.  Opening the diamonds will increase cutting speed.

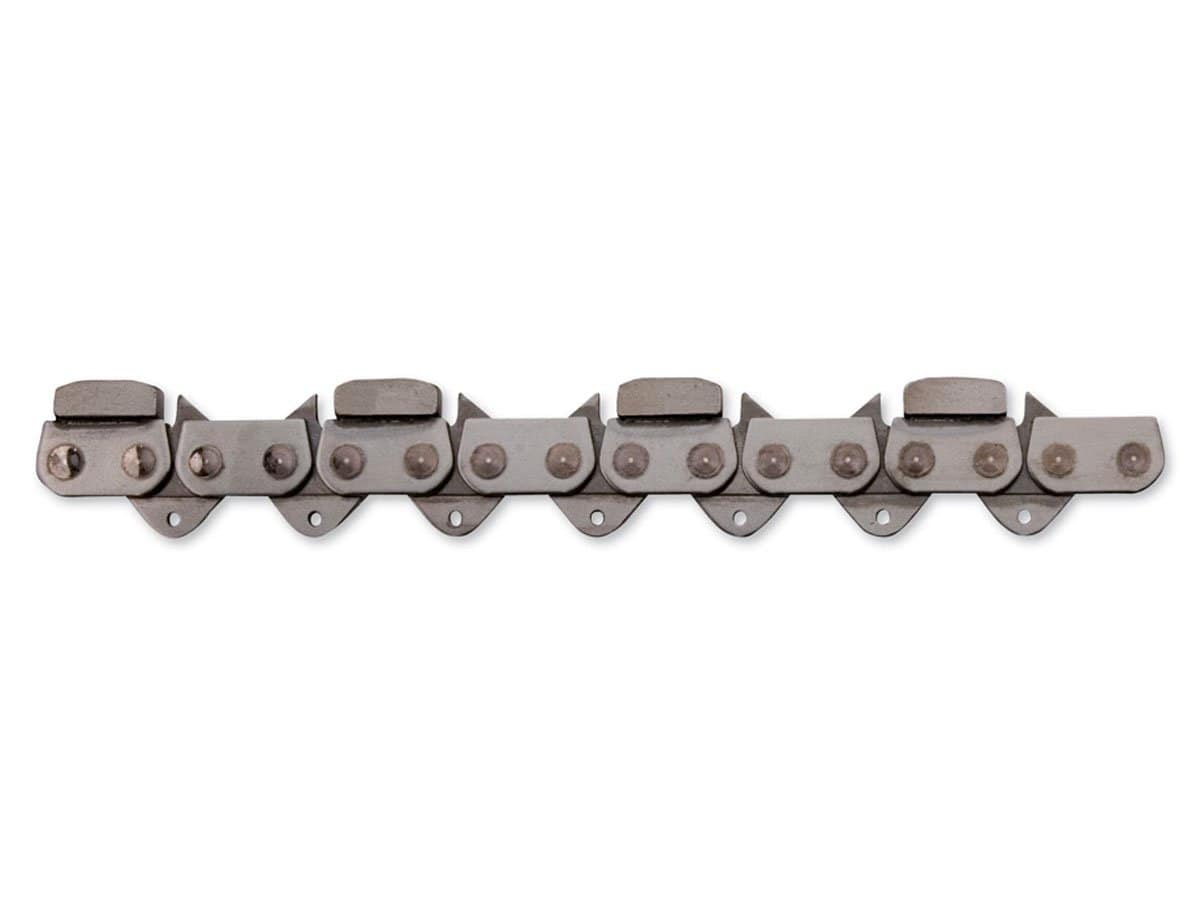

Chains measure .220" wide, pre-cutting with a .235" blade will allow the chainsaw to cut freely without any premature wear on side clearance of chain.  Important in keeping your saw cut straight by scoring the cut first.  This also helps in blade life by using a standard pre-cut diamond blade with cut-off saw.  Pre-Cutting is most commonly achieved with gas K970-14" or K970-16" or hydraulic K2500-16" combined with the Vanguard series blades.

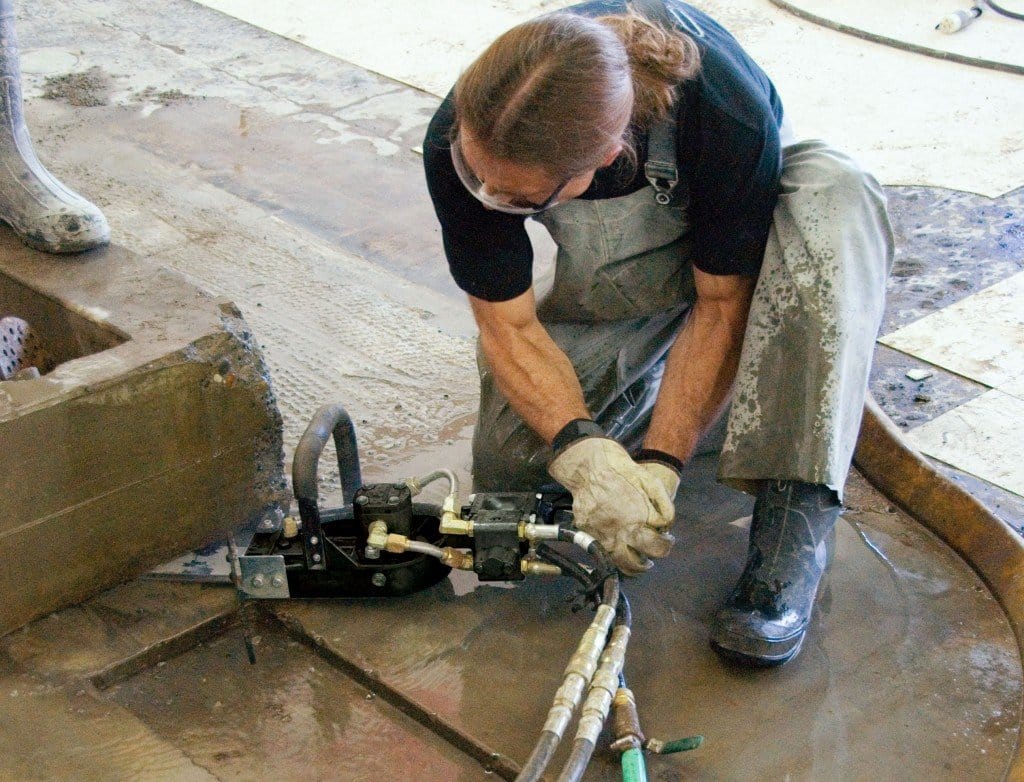

The ICS 890F4 Powerhead is the best way to cut concrete.  With hydraulic there are no fumes, being in tight areas inside or trenches is much safer to operate. Using hydraulic eliminates the problem of fumes while giving more horsepower and torque for a smoother and faster cut.



MORE INFO AND DESCRIPTION

The ICS 890 Series hydraulic cutting system offers the superior strength of FORCE4® technology. From the redesigned, more durable rear handle, to the easy to replace drive sprocket, this power cutter is engineered to stand up to your toughest jobs. In a package that exceeds industry standards this sleek powerhouse is packed with features designed to make it work as hard as you do.

Specs

8 GPM Motor
Weight27.3 lbs with 15" bar and chain
Bar lengthUp to 25"
Motor speed6,100 rpm
Powerhead dimensions LxWxH23" x 10.5" x 9.5"
Torque122 in-lbs
Horsepower6 hp
Hydraulic supply8 gpm @ 2,500 psi
Nose level107 dB @ 3 ft
Water supplyMinimum 20 psi
12 GPM Motor
Weight27.3 lbs with 15" bar and chain
Bar lengthUp to 25"
Motor speed6,500 rpm
Powerhead dimensions23" x 10.5" x 9.5"
Torque170 in-lbs
Horsepower8 hp
Hydraulic supply12 gpm @ 2,500 psi
Noise level107 dB @ 3 ft
Water supplyMinimum 20 psi
