Vendor: Husqvarna

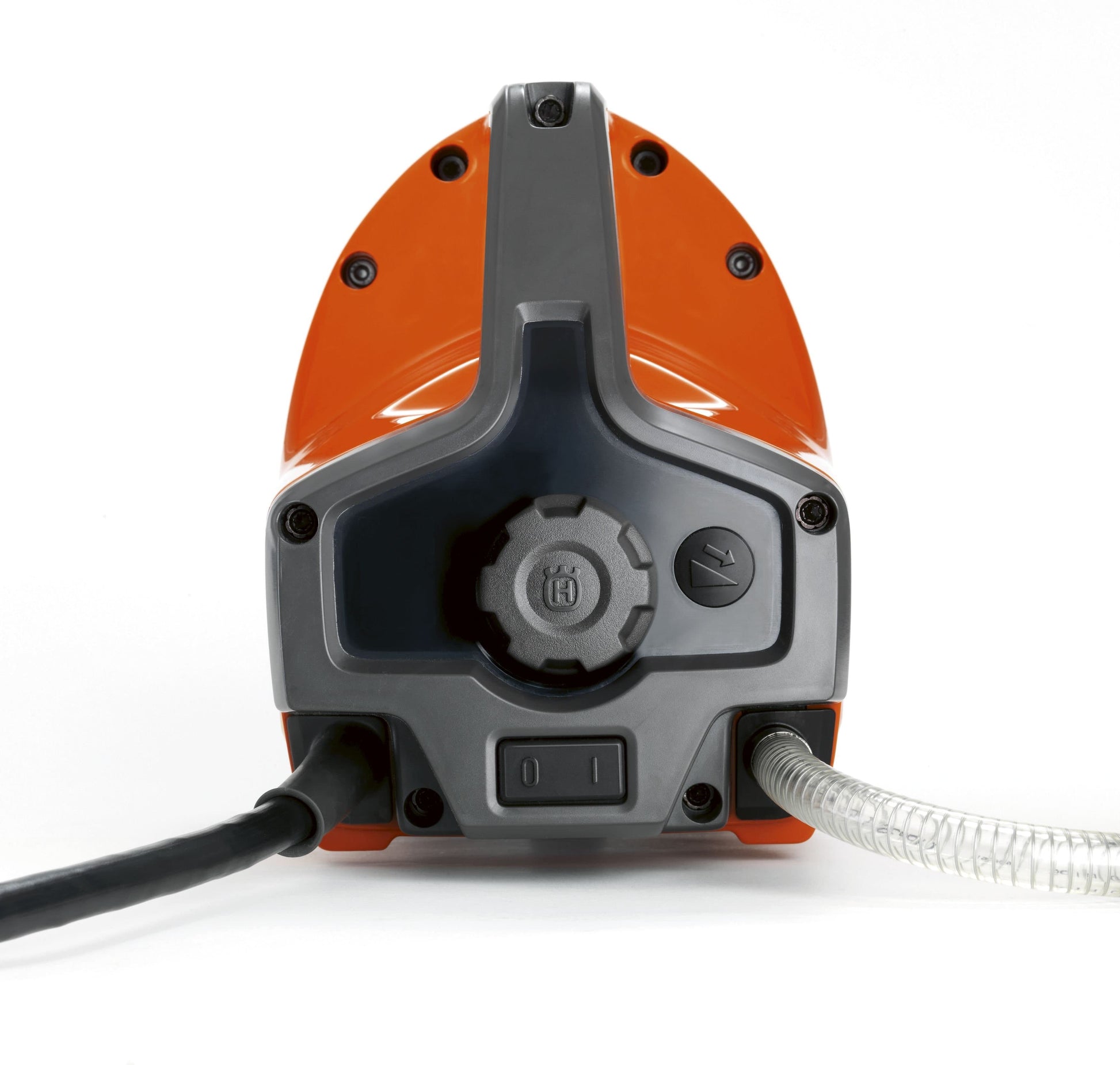

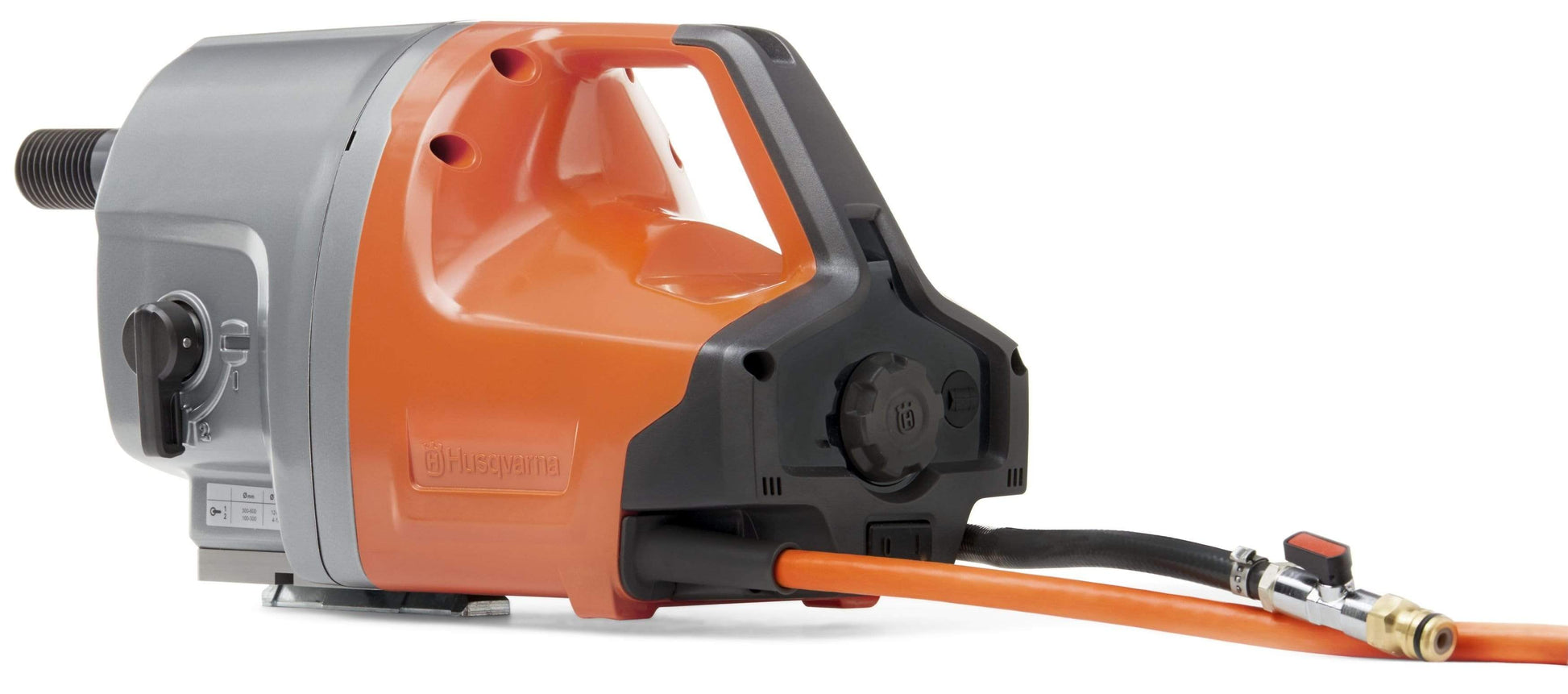

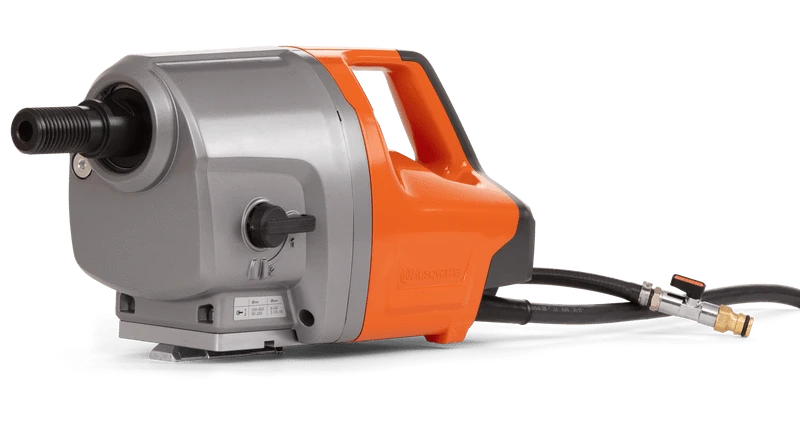

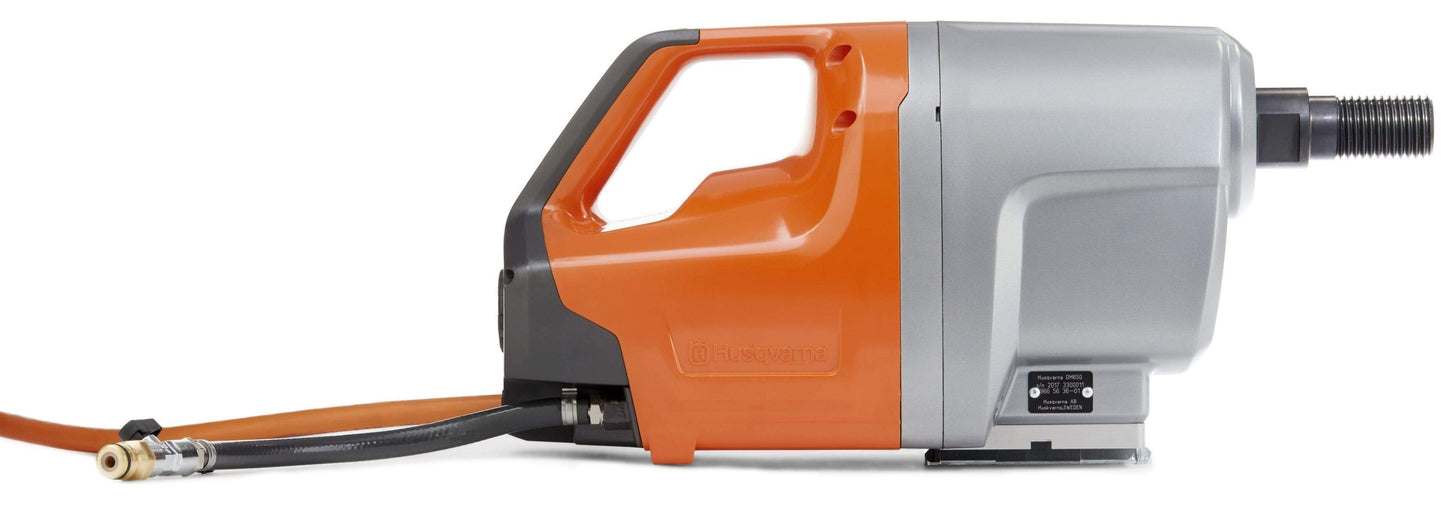

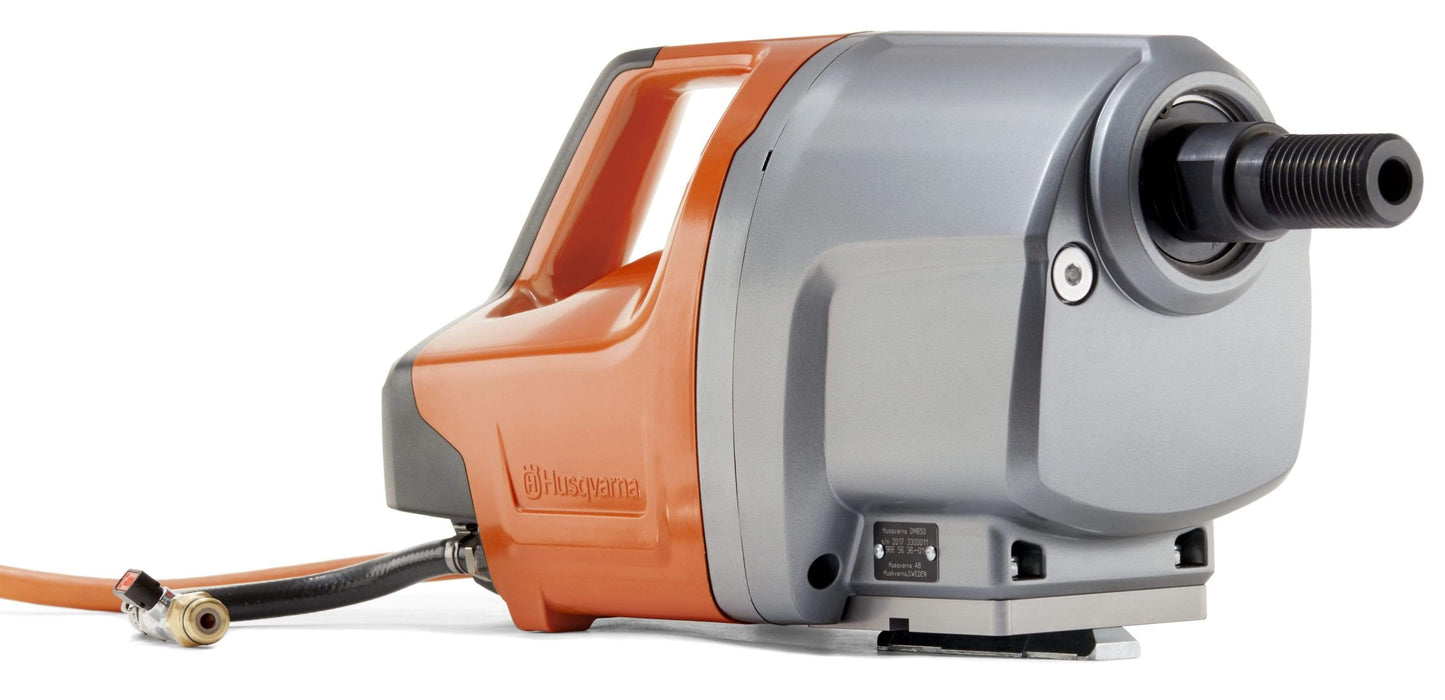

Husqvarna Prime™ DM700 High Frequency Core Drill Motor

Regular price $6,396.00
Regular price Sale price $6,396.00
Sold out
Shipping calculated at checkout.
Sku: 970449401

The Husqvarna DM700 is the most powerful electric drill motor in its range. Designed for all-day use by professional drilling contractors. Equipped with a maintenance-free, water-cooled 8 hp permanent magnet high-frequency motor delivering extremely high torque to handle large drilling dimensions and depths. Intelligent motor control software enables optimized rpms for a wide range of drilling diameters, from 3-24".

Product Reviews

Caret Down
View full details
Husqvarna Prime™ DM700 High Frequency Core Drill Motor
Husqvarna Prime™ DM700 High Frequency Core..

$6,396.00

Additional Info

HUSQVARNA DM700 PRIME HIGH FREQUENCY DRILL MOTOR

Applications

  • Ideal for all core drilling 3" to 24" in reinforced concrete, brick and other building materials
  • Perfect for heavy-duty applications like water drains, ventilation (HVAC), plumbing channels, waste drain pipes, gas supply pipes, gas supply pipes, manholes and barriers

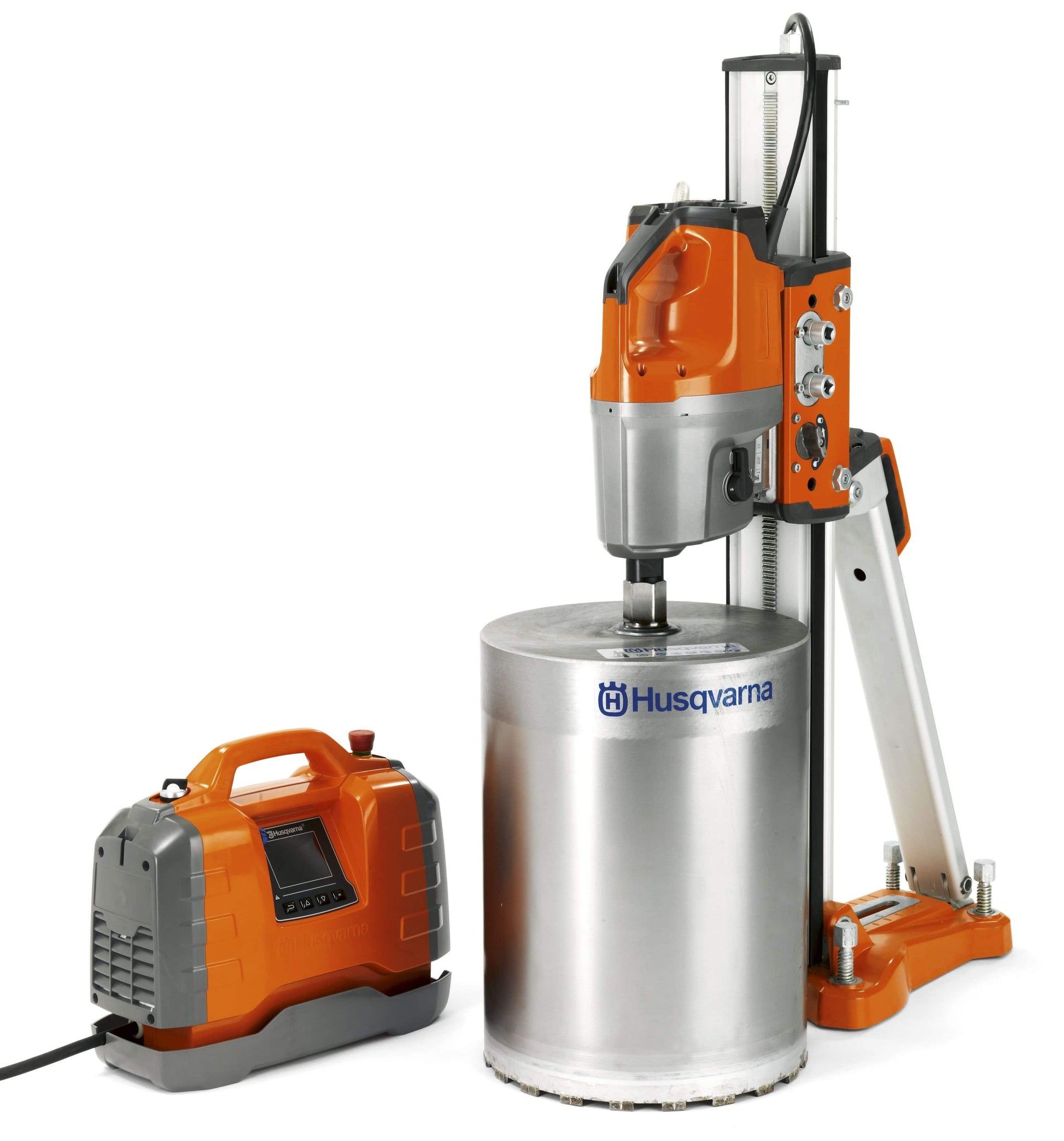

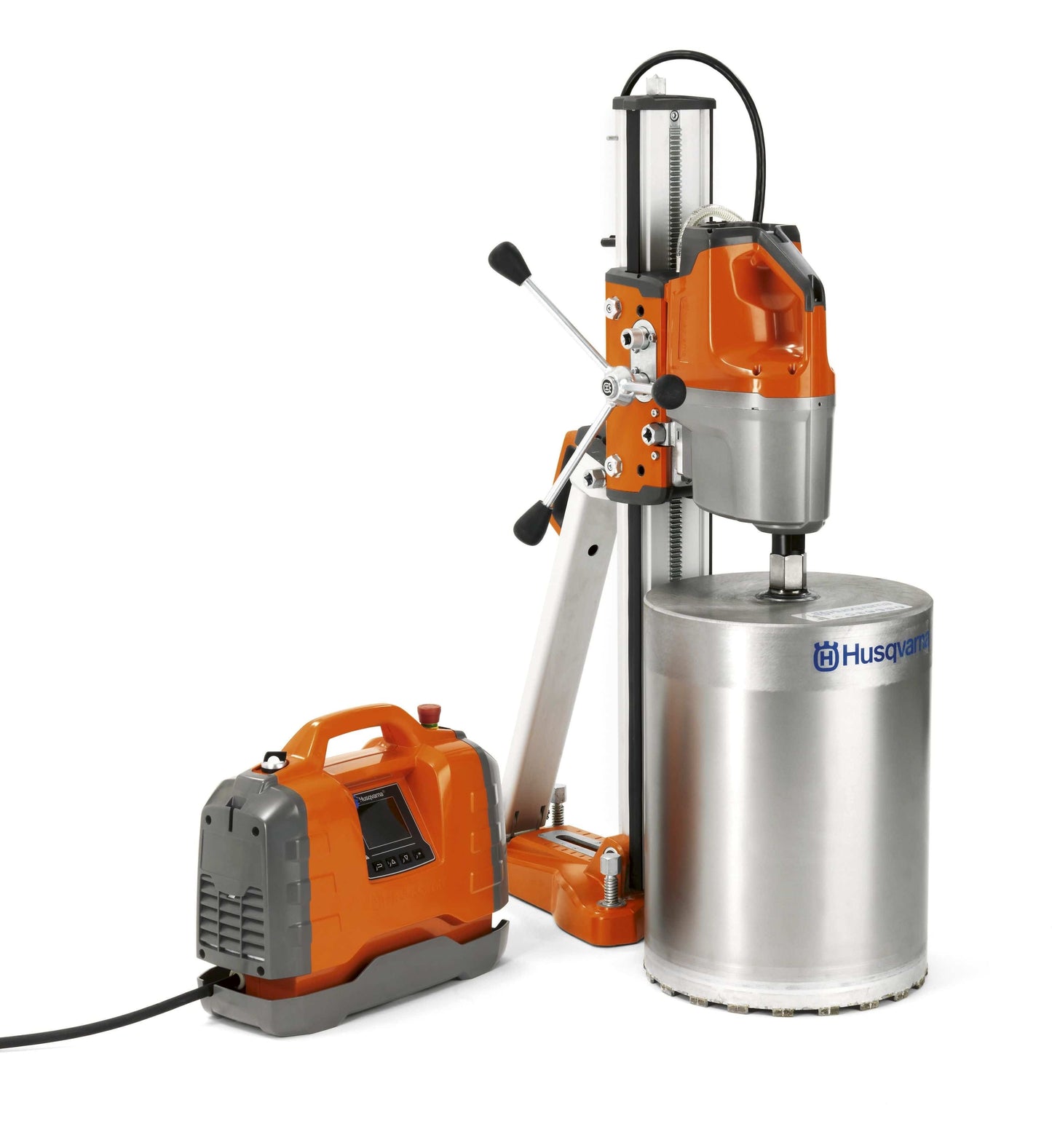

  • Powered by PP70 or PP220

Benefits

  • Very powerful drill motor delivering 6,000 watts on spindle (3,000 watt on 1-phase)
  • 18-step adjustable RPM range ensures optimal speed for all drill bit dimensions

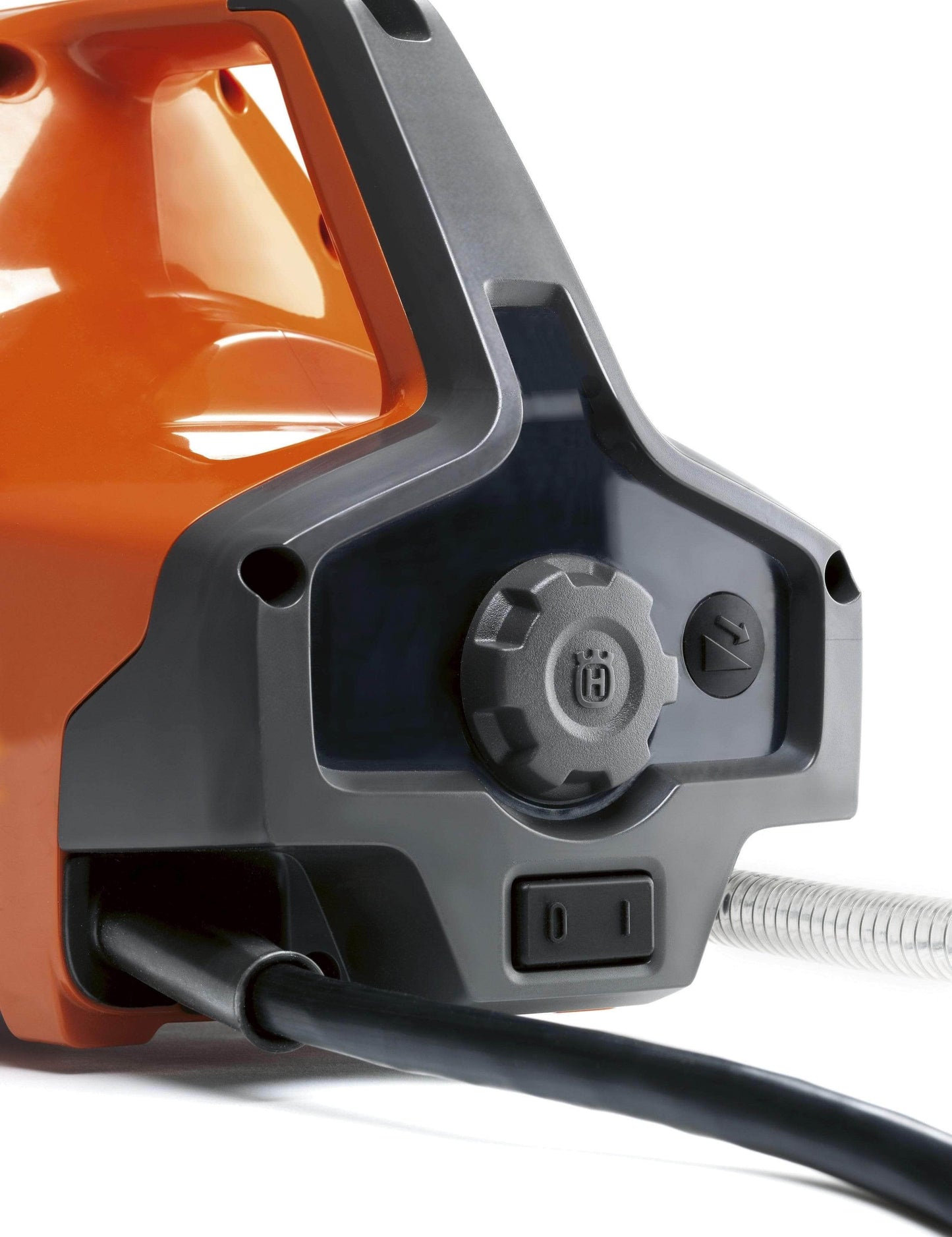

  • Easy to adjust speed while drilling
  • Low weight and ergonomic design makes it easy to carry and mount
  • Dust-proof, water-cooled motor with minimal service requirements
  • When drilling in steel or difficult materials, the torque boost reduces speed to increase drilling torque
  • Durable, shock-proof design protects the electronics
  • Elgard enables drilling at maximum pressure without risk of overload

Rated Input Power, hp8
Output Shaft Max, rpm675
Core Bit Diameter Max, in24"
Core Bit Diameter Min, in3.2"
Number of Gearbox Speeds2
Spindle Thread Size1-1/4"-7 UNC
Product Weight, lbs30.8
