Husqvarna

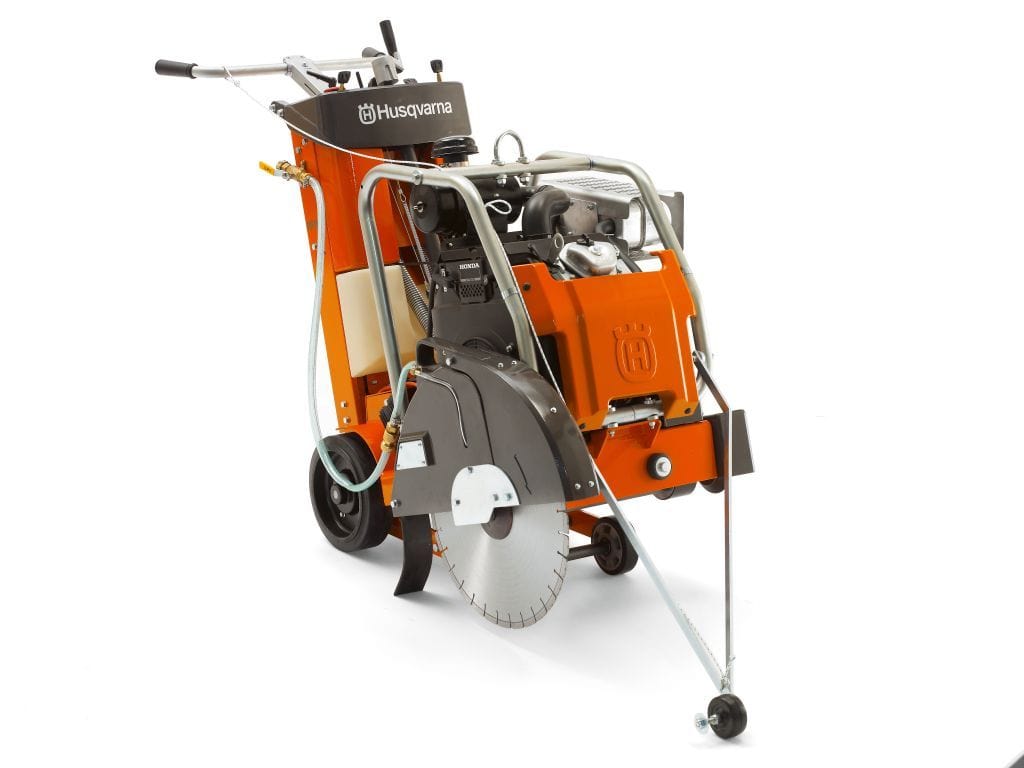

FS500 Husqvarna Self Propelled Gas Saw

SKU: 967045901

Husqvarna FS500 is a powerful, yet compact, self-propelled gas floor saw ideal for asphalt and concrete cutting. Suitable for medium-sized service and repair jobs, up to 9-5/8" cutting depth.  IntelliSeal bladeshaft allows for 250 maintenance-free hours, eliminating daily greasing of bearings.

Regular price $4,479.00
Sale price $4,479.00
Shipping calculated at checkout.
Quantity must be 1 or more

Product options:

Finance Your Next Project With CIT
We accept payment
  • Description
  • Specs
  • Reviews
  • FILES

Description

FS500 HUSQVARNA GAS WALK BEHIND SAW

WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY

Applications

  • Self-propelled group of saws perfect for cutting sidewalks, driveways and other small repair or service work.
Benefits
  • Patented engine and bladeshaft mounting system reduces vibration for improved cutting performance.
  • Patented IntelliSeal bladeshaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings.
  • Dual spring assist raise/lower blade can be mounted on left or right side when necessary.
  • Belt tensioning system does not require frequent adjustment.
  • New locking differential drive system increases blade performance when cutting uneven surfaces.

TECHNICAL SPECIFICATIONS

 Max blade diameter, in 20" 20" 24"
Model  FS 513 FS 520 FS 524
Max power, HP  13 HP 20 HP 20 HP
Max depth of cut, in 7-5/8" 7-5/8" 9-5/8"
Average bladeshaft, RPM 2,620 2,110 2,110
Blade flanges, in 4-1/2" 4-1/2" 4-1/2"
Max weight uncrated, lbs 424 493 502



MORE INFORMATION

Husqvarna FS500 is a very good working mid-size saw.  Husqvarna has made the saw very easy to crank raise and lower.  With spring assist raise / lower assembly, this saw gives deeper cutting ability with standard saw features and design.  Get you in and out of your cuts faster and easier on operator.

Ace Cutting stocks this saw with the 20 HP Honda engine and 24" blade guard.  RPM's are the same with either 20" or 24" setup which makes even more reasoning to order this saw with powerful 20 HP Honda and 24" guard.

Please note water tank is not included with saw.

Specs

Specs for the FS 520 & FS 524

Engine SpecificationsHonda GX630
Maximum power, HP (kW)20.8 (16)
Arbor size, in (mm)1" (25)
Bladeshaft diameter, in (mm)1-3/16" (30)
Cylinders / Cycle2/4
Fuel Capacity, gal (l)2.2 (8.3)
Air FilterDry Type Canister
Starter Electric
Engine CoolingAir
Axle front / rear, in (mm)3/4" (19)
Wheels front, in (mm)5" x 1-1/2" x 3/4" (127 x 38 x 19)
Wheels rear, in (mm)10" x 3" x 7/8" (254 x 76 x 22)
Blade guard typeSlip-on with bolt
Number of belts16 Rib Poly V Belt
Blade depth controlSpring assist screw feed
Dimensions uncrated, pointer and blade guard up, handles in, L x W x H66" x 26" x 42"
Displacement, cu in (l)41.9 (686)
Bore / Stroke, in (mm)3.07 / 2.83 (89/79)
Oil Capacity, qt (l)2 (1.9)
Handlebar adjustmentVariable position
Transmission TypeHydrostatic trans-axle
Transmission speeds, fpm0-80

Specs for the FS 513

Engine SpecificationsHonda GX390
Maximum power, HP (kW)11 (8)
Arbor size, in (mm)1" (25)
Bladeshaft diameter, in (mm)1-3/16" (30)
Cylinders / Cycle1/4
Fuel Capacity, gal (l)1.6 (6.1)
Air FilterDry Type Dual Element Cyclone
Starter Recoil
Engine CoolingAir
Axle front / rear, in (mm)3/4 (19)
Wheels front, in (mm)5" x 1-1/2" x 3/4" (127 x 38 x 19)
Wheels rear, in (mm)10" x 3" x 7/8" (254 x 76 x 22)
Blade guard typeSlip-on with bolt
Number of belts12 Rib Poly V Belt
Blade depth controlSpring assist screw feed
Dimensions uncrated, pointer and blade guard up, handles in, L x W x H66" x 26" x 42"
Displacement, cu in (l)23.7 (389)
Bore / Stroke, in (mm)3.50 / 2.5 (89/64)
Oil Capacity, qt (l)1.2 (1.1)
Handlebar adjustmentVariable position
Transmission TypeHydrostatic trans-axle
Transmission speeds, fpm0-80
