Vendor: Hycon

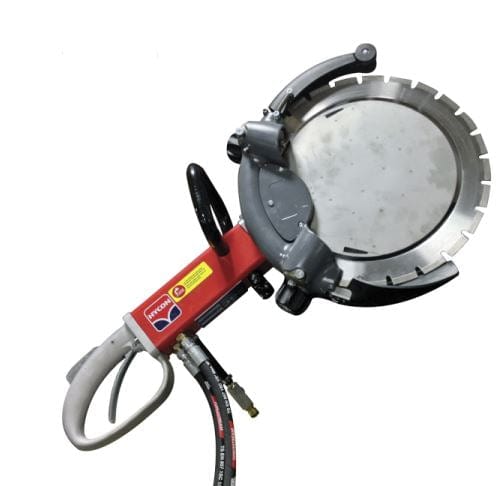

Hycon HRS16 Hydraulic Ring Saw

$4,702.00
$4,702.00
Sold out
Shipping calculated at checkout.
Sku: H00018

The HYCON ring saw has a unique design and state of the art drive mechanism that will give you many hours of use and long lasting wearing parts that will ensure you low operating cost. Investing in a ring saw is investing in more work because it will cut 11-3/4” deep compared to common gas or hydraulic circular hand saws that only cut up to 5-5/8 It is also investing in higher efficiency because it will cut 11-3/4" deep resulting in less work afterward (e.g. a doorway) and less after work means job done faster and much cheaper!

Finance your Next Project

Click Here to Apply for Financing

View full details
Hycon HRS16 Hydraulic Ring Saw
Hycon HRS16 Hydraulic Ring Saw

$4,702.00

Additional Info

HRS16 HYCON HYDRAULIC RING SAW

INCLUDES ONE FREE BLADE!



Applications

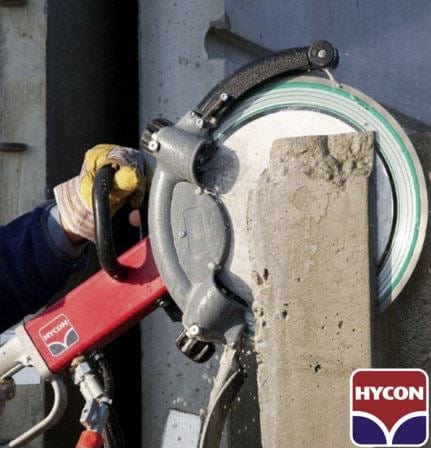

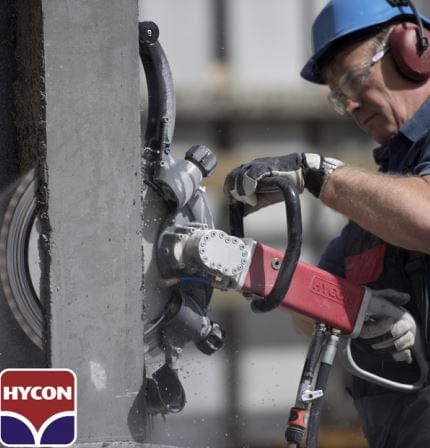

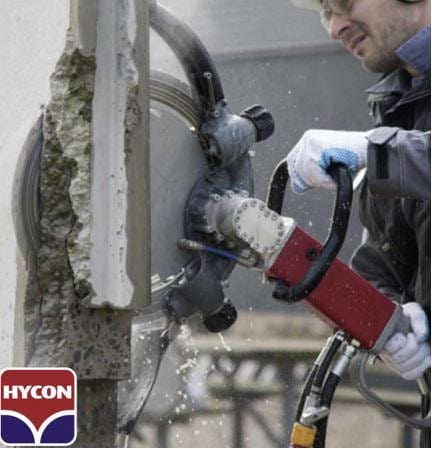

  • Ideal for indoor and outdoor cutting of everything from brick to reinforced concrete and even ductile pipe.
  • Wet cutting only.
  • Designed to cut deep, for window and door openings.
  • Thanks to the peripheral drive you can cut far deeper than with a traditional power cutting.

Benefits

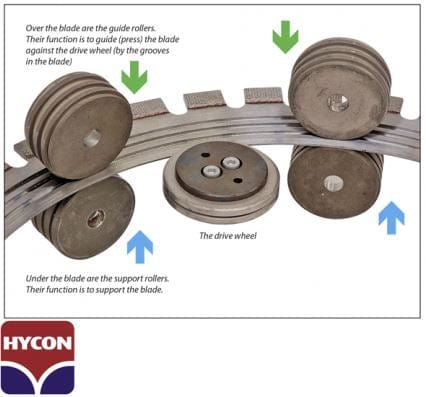

  • Guide rollers use 3 groves compared to competitors single grove for added roller life.
  • Ergonomic design for operator comfort.
  • 16" blade cuts 11-3/4" deep.

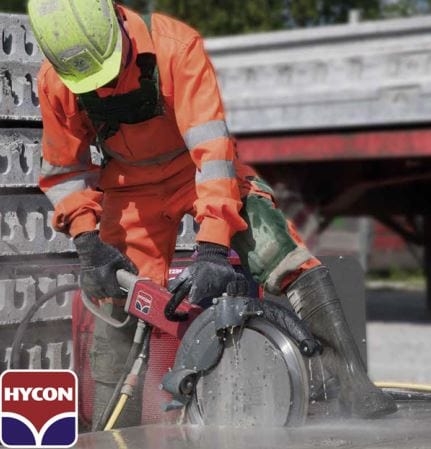

  • Works underwater.
  • Optional track system takes effort off operator and adds safety.

TECHNICAL SPECIFICATIONS

Blade, in 16"
Cutting depth, in 11-3/4"
Power, hp 18hp

Weight with blade, lbs

 24

Blade, in 16"
Cutting depth, in 11-3/4"
Power, hp 18
Maximum pressure, psi2,300
Maximum flow rate, gpm10
Hydraulic gear motorYes
Peripheral driveYes
Works underwaterYes
Vibration level <2.5m/sec2
Water supply minimum1gpm @ 30psi
Weight with blade, lbs.24

HRS16 Ring Saw Operating Manual
