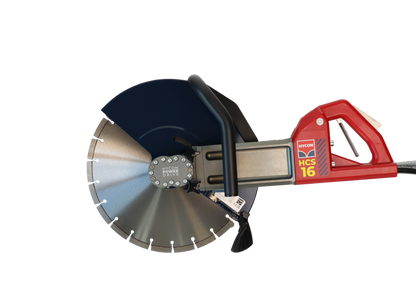

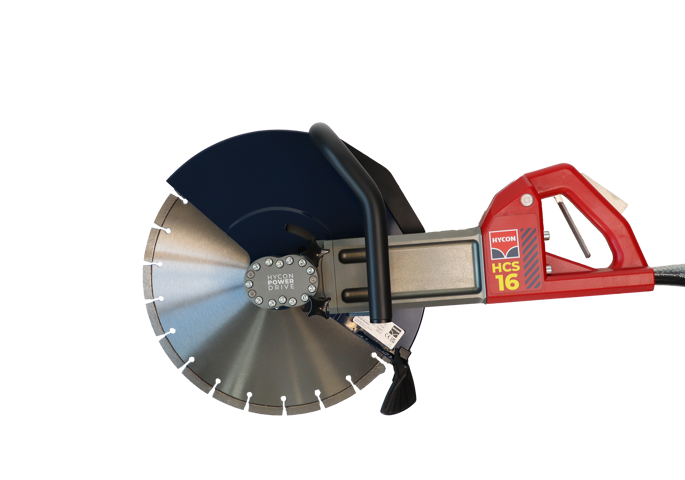

The Hycon HCS16 direct drive cut-off diamond saw cuts all types of concrete, steel, brick wall, asphalt, etc. The HYCON cut-off saw is a very sturdy tool for cutting even under extreme conditions. It is completely unaffected by water and dust, and all parts run in oil. The HYCON HCS saws are built for hard use day after day – without breakdowns.
Applications
Benefits
Blade, in | 16" |
Cutting depth, in | 6-3/8" |
Hydraulic Flow, GPM | 5-8 |
Working Pressure, psi | 1,800 |
Max Pressure, psi | 2,500 |
For Use Underwater |
Yes |
RPM |
2,400-3,600 |
Weight Without Blade, lbs | 17 |
Blade, in (mm) | 16" (400) |
Cutting depth, in (mm) | 6.4" (162) |
Maximum pressure, psi | 2,500 |
Maximum flow rate, gpm | 5-10 |
Hydraulic gear motor | Yes |
Servo for rpm control | Yes |
Reversible cutting arm | Yes |
Wet Kit | Yes |
Replaceable arbor bushing | Yes |
Sound power level, Lwa, dB | 107 |
Sound pressure level, dB | 85 |
Weight without blades, lbs | 18.3 |
