MBW

GP12 MBW 13" Vibratory Plate Compactor 1000 Series

SKU: 12GHC

This lightweight plate compactor weighing 130 lbs. is easy to lift and maneuver about the jobsite.  With intense vibration, this series is ideally suited as an economical alternative for small to medium compaction applications.

Regular price $1,775.00
Sale price $1,775.00
Shipping calculated at checkout.
Quantity must be 1 or more

CIT

Start the easy application process and finance your next project. Apply Now

We accept payment
  • Description
  • Specs
  • Reviews
  • FILES

Description

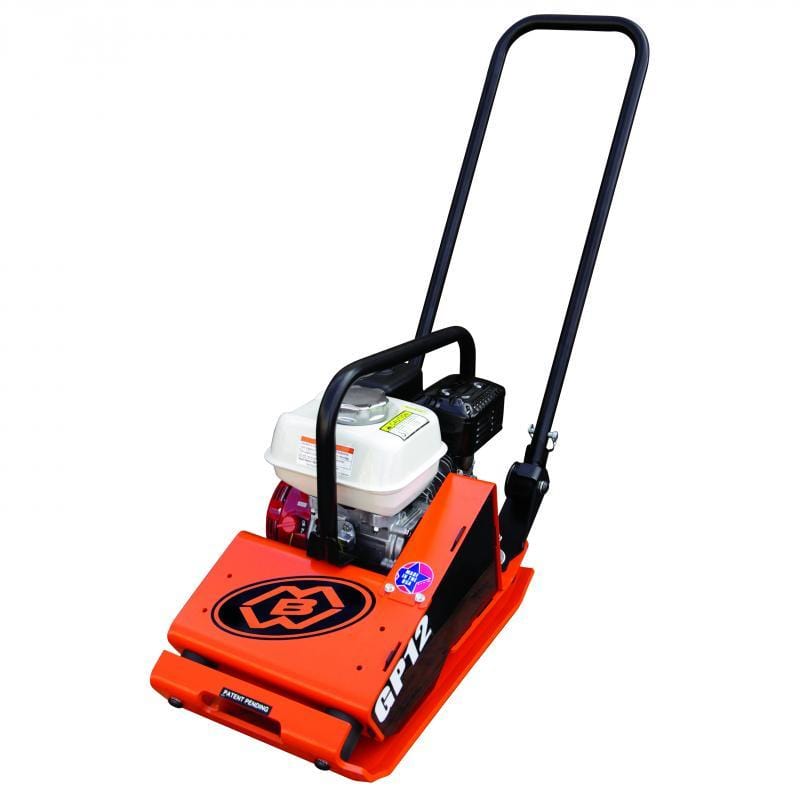

MBW GP12 PLATE COMPACTOR

Features

  • Honda GX120 Engine
  • One piece exciter with self cleaning open base plate design
  • Standard lift cage

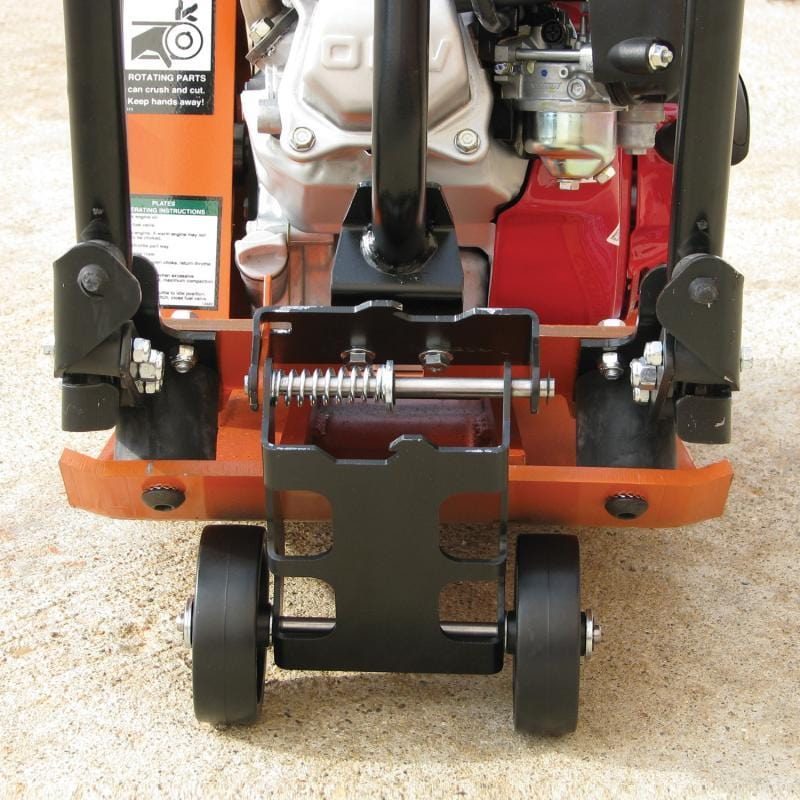

  • Optional transport wheel kit available
  • Optional UHMW paving pad for placing interlocking paving stone/brick/block
  • Optional water tank

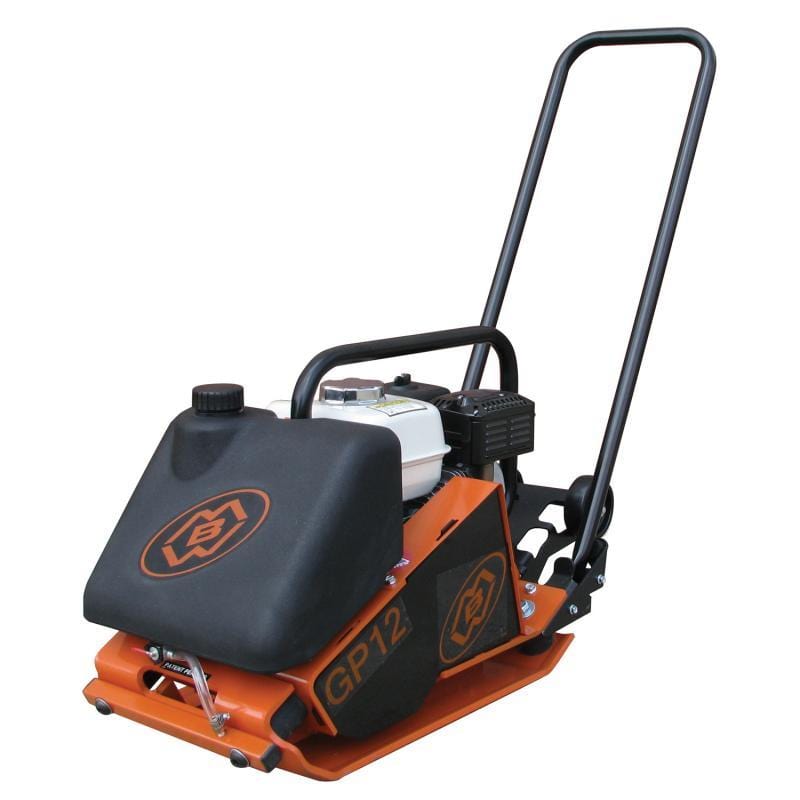

This series of economical vibratory plates, the GP12, GP15 & GP18, are portable, and offer outstanding compaction performance. This system reduces hand arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter. Images shown with water tank not included, available separately.

Specs

EngineHonda GX120
Operating weight130 lbs
Plate size WxL13" x 22.5"
Amplitude0.058"
Centrifugal force1,920 lbs.
Exciter speed5,240 vpm
Compaction depthUp to 10"
Travel speedUp to 83 ft/min
Compaction area5,395 sq. ft. / hour
