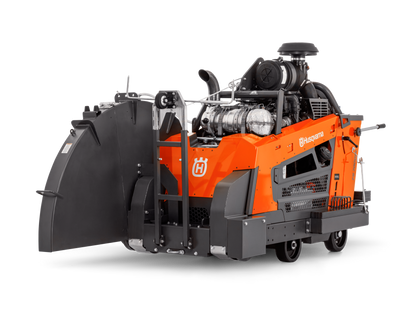

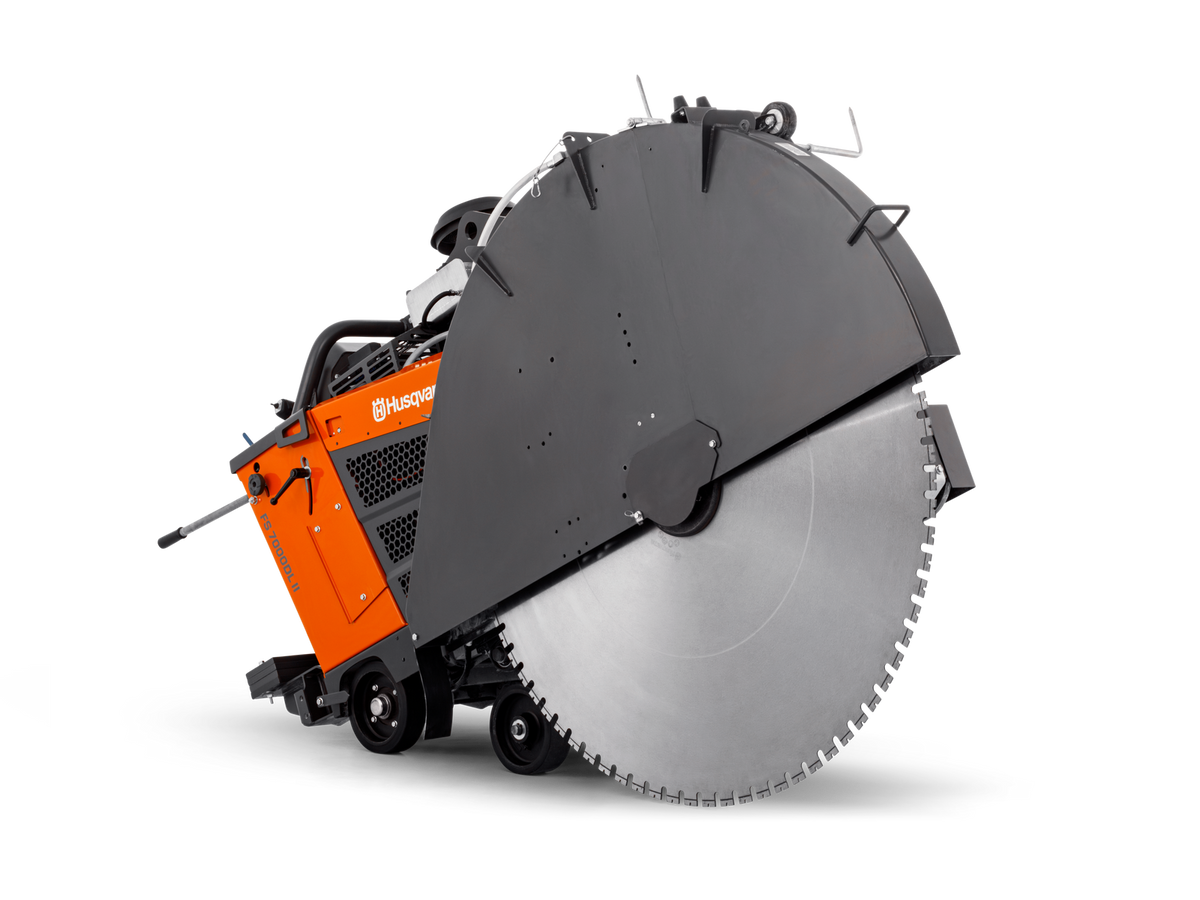

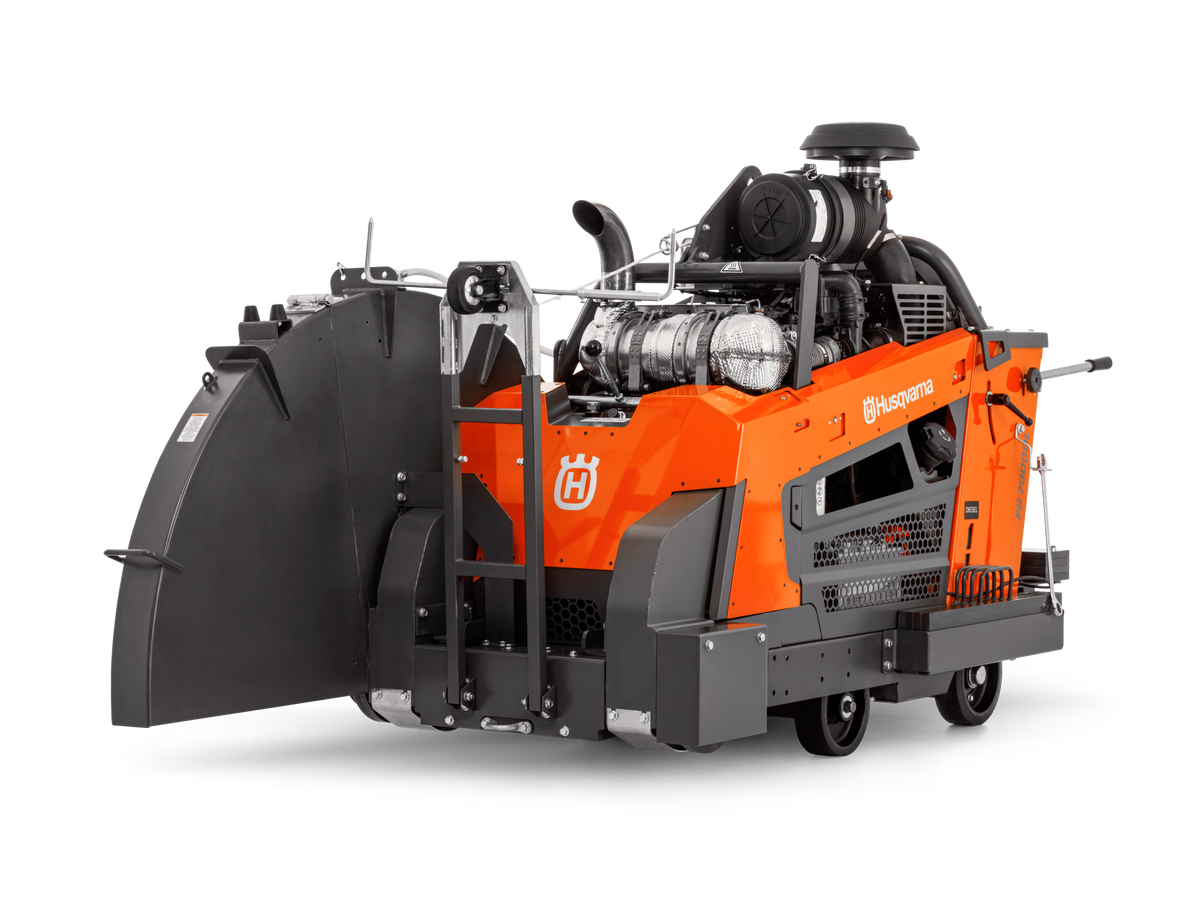

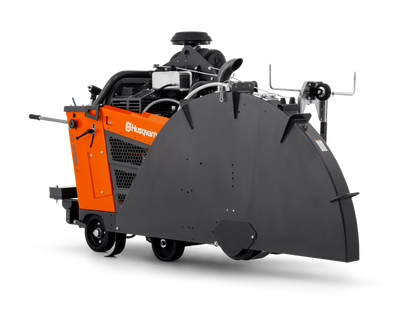

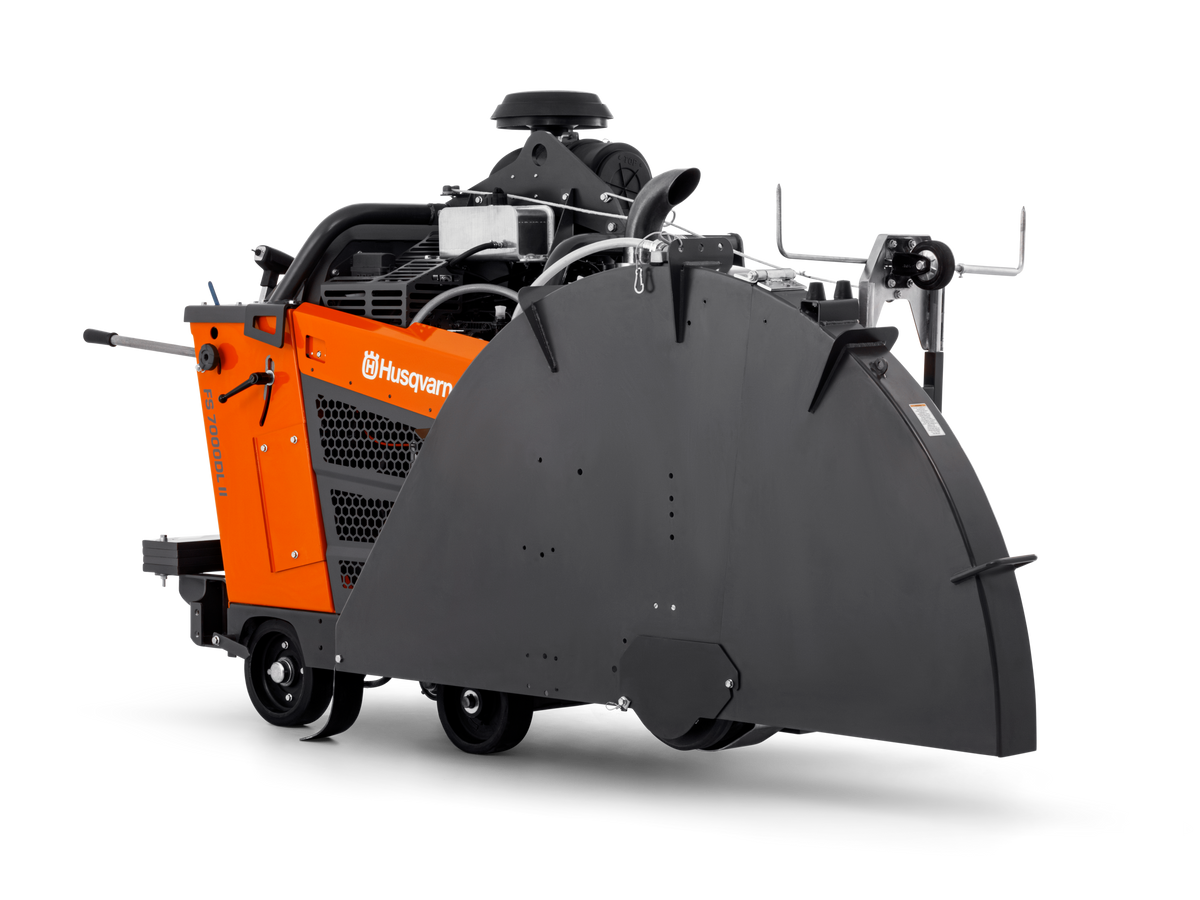

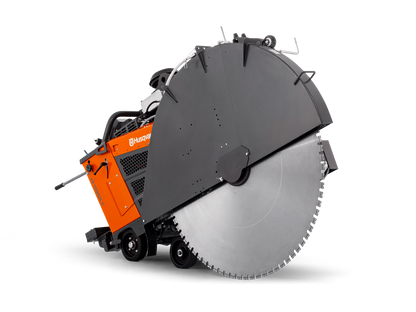

FS 7000 DL II HUSQVARNA 3-SPEED DIESEL WALK BEHIND SAW — DEEP CUTTING
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
The FS 7000 DL II is a powerful diesel walk-behind floor saw designed for deep cutting in asphalt and concrete. Its EPA Tier 4 / EU Stage V-compliant Deutz turbo diesel engine delivers high sustainable torque for maximum productivity in the toughest conditions. All FS 7000 DL models are equipped with a fifth wheel as standard for easy operation.
Applications
- Large jobs such as airports, highways, larger service work, and other applications where production is a priority.
- Projects requiring deep sawing — up to a 60" blade with 25" depth of cut.
Benefits
- Tier 4 compliant 74.3 HP Deutz TD 2.9 L4 turbo diesel engine meets current EPA regulations.
- Right-angle 3-speed gearbox allows different blade sizes to run at their ideal RPM without changing pulleys or belts.
- Fifth wheel standard on all models for easy operation; blade clutch versions available.
- IntelliSeal™ blade shaft housing creates a barrier to protect the bearings and keep contaminants out, eliminating daily maintenance.
- E-trak™ electronic tracking with a centering feature that memorizes the previous setting for a consistent line.
- Can be equipped with light kit, water pump kit, and weight kits.
TECHNICAL SPECIFICATIONS
| Max blade diameter, in | 48" | 60" |
| Max depth of cut, in | 20" | 25" |
| Blade shaft speed, RPM | 1,015 | 792 |
| Blade flanges, in | 8" | 10" |
| Arbor | 1" with 5 drive pins | 1" with 5 drive pins + 6 screws |
| Nominal weight (uncrated), lbs | 2,315 | 2,844 |
| Max operating weight, lbs | 2,469 | 2,998 |
Blade guard: bolt-on. Blade shaft output approx. 50 HP.
| Engine | Deutz TD 2.9 L4, EPA Tier 4 / EU Stage V |
|---|---|
| Engine Power | 74.3 hp |
| Cylinders / Cycle | 4 / 4-stroke |
| Engine Cooling | Liquid / Air |
| Power Source | Diesel |
| Gearbox | 3-speed right-angle |
| Max Blade Diameter | 48" / 60" (by blade guard) |
| Max Cutting Depth | 20" (48") / 25" (60") |
| Arbor Diameter | 1" |
| Blade Depth Control | Electric hydraulic |
| Output Shaft RPM | 1,015 (48") / 792 (60") |
| Transmission Speed | 250 fpm forward / 250 fpm reverse |
| Dimensions (L x W x H) | 93.3"-107" x 38.9" x 57.7" |
| Weight | 3,086 lbs |
| Manufacturer | Husqvarna |
| Fuel Capacity | 10.6 gallons |
