FS7000D II Husqvarna 3-Speed Diesel Concrete..

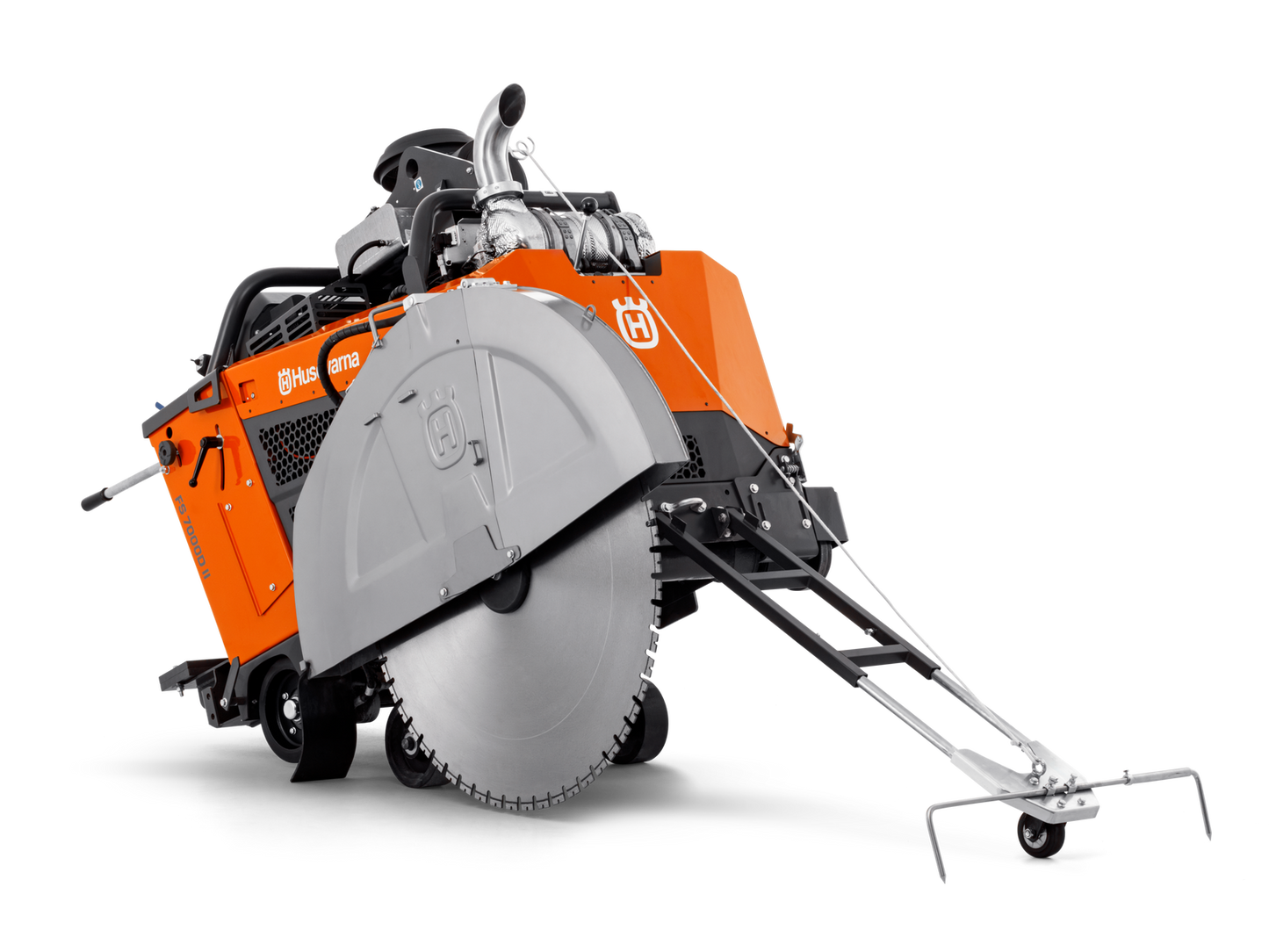

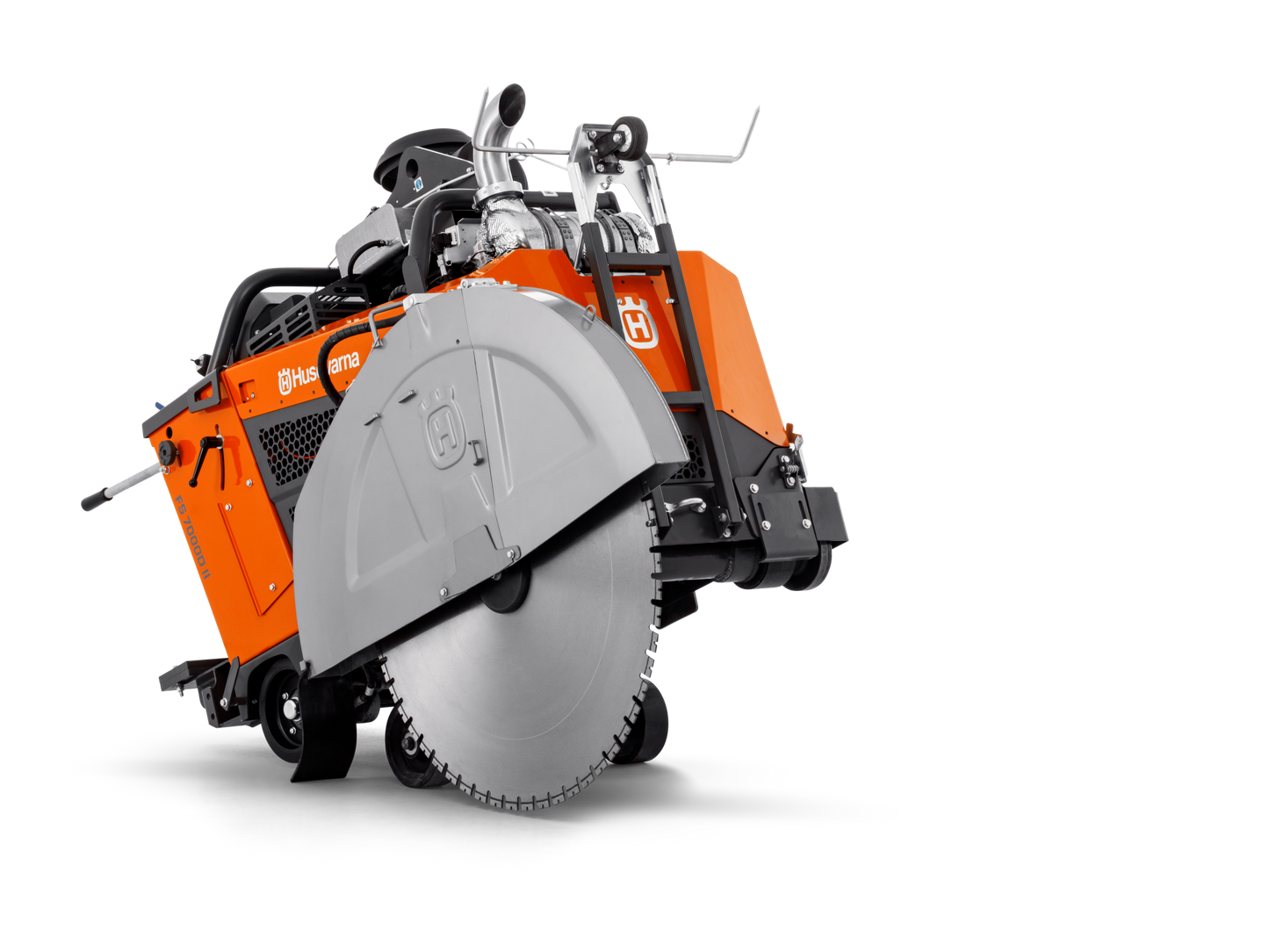

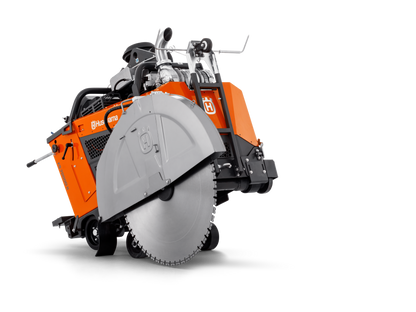

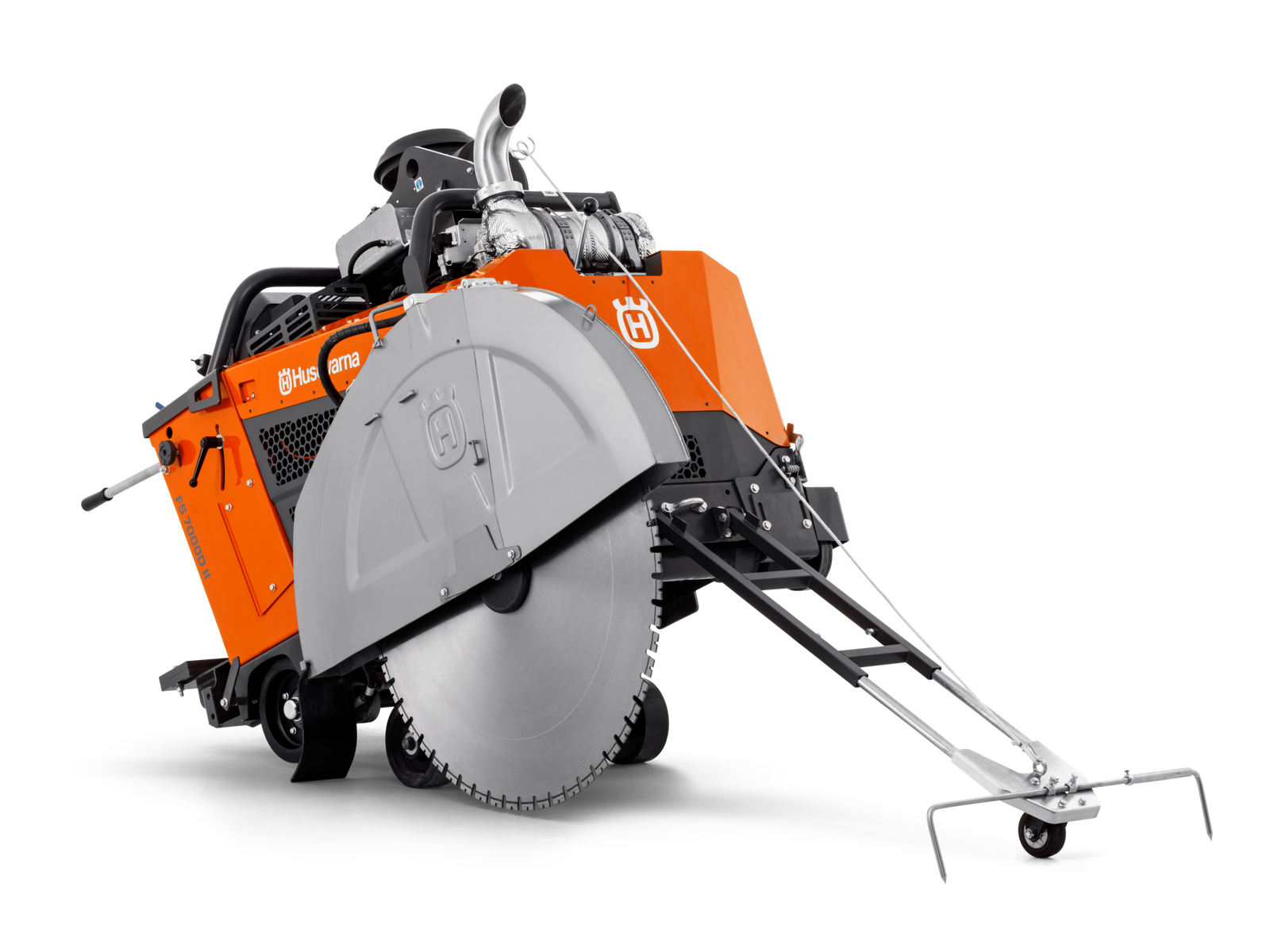

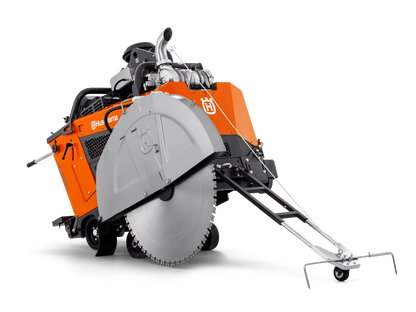

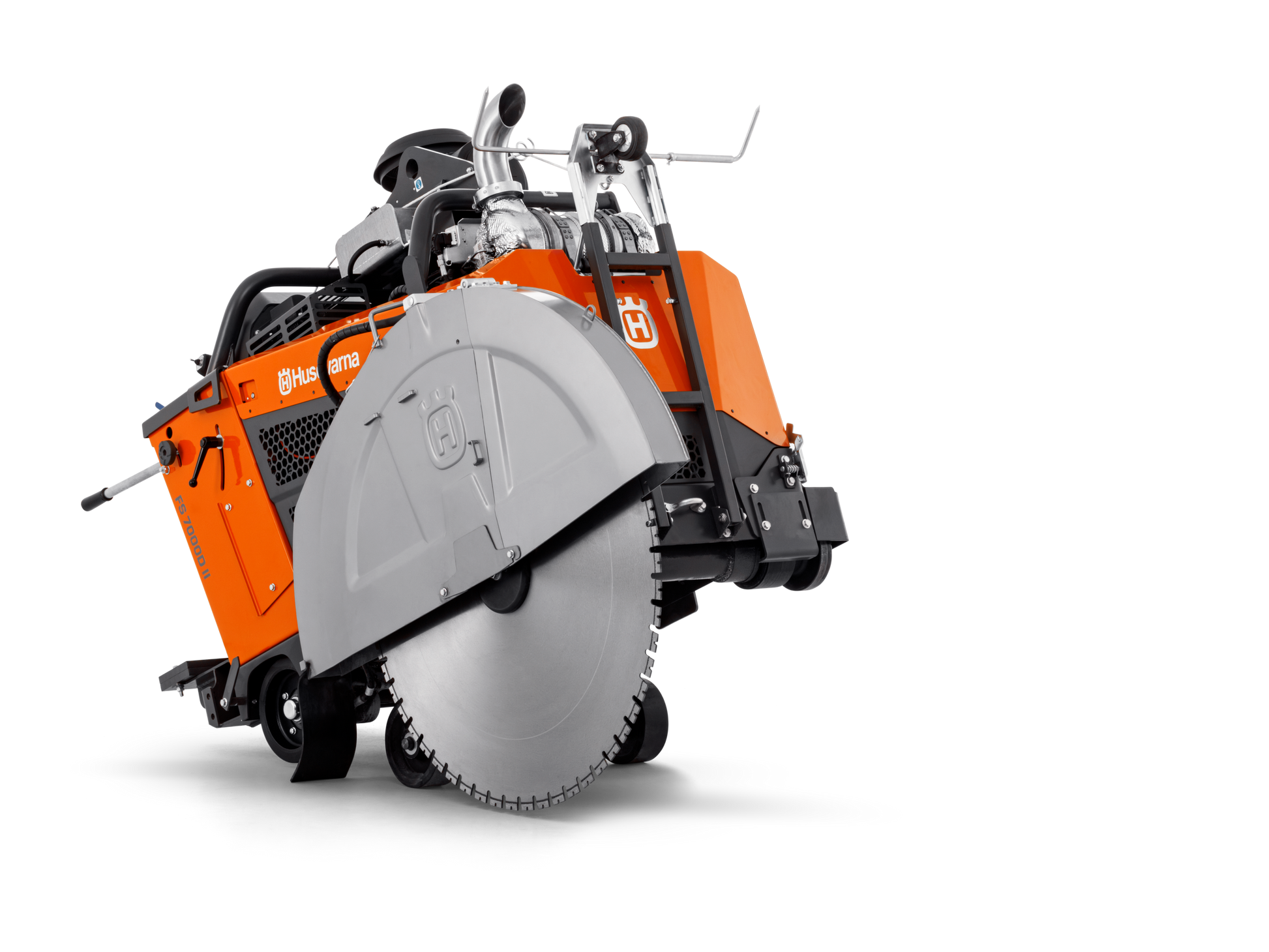

FS 7000 D II HUSQVARNA 3-SPEED DIESEL WALK BEHIND SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
The FS 7000 D II is a powerful diesel walk-behind floor saw designed for high-performance cutting in asphalt and concrete. Equipped with an EPA Tier 4 / EU Stage V-compliant Deutz turbo diesel engine for low emissions, it delivers exceptional torque for maximum productivity in tough conditions.
Applications
- Large jobs such as airports, highways, larger service work, and other applications where production is a priority.
- Mid-size jobs that require high production rates.
Benefits
- Tier 4 compliant 74.3 HP Deutz TD 2.9 L4 turbo diesel engine meets current EPA regulations.
- Right-angle 3-speed gearbox allows a range of blade sizes on one guard — change gears instead of pulleys and belts to run each blade at its ideal RPM.
- IntelliSeal™ blade shaft housing creates a barrier to protect the bearings and keep contaminants out, eliminating daily maintenance.

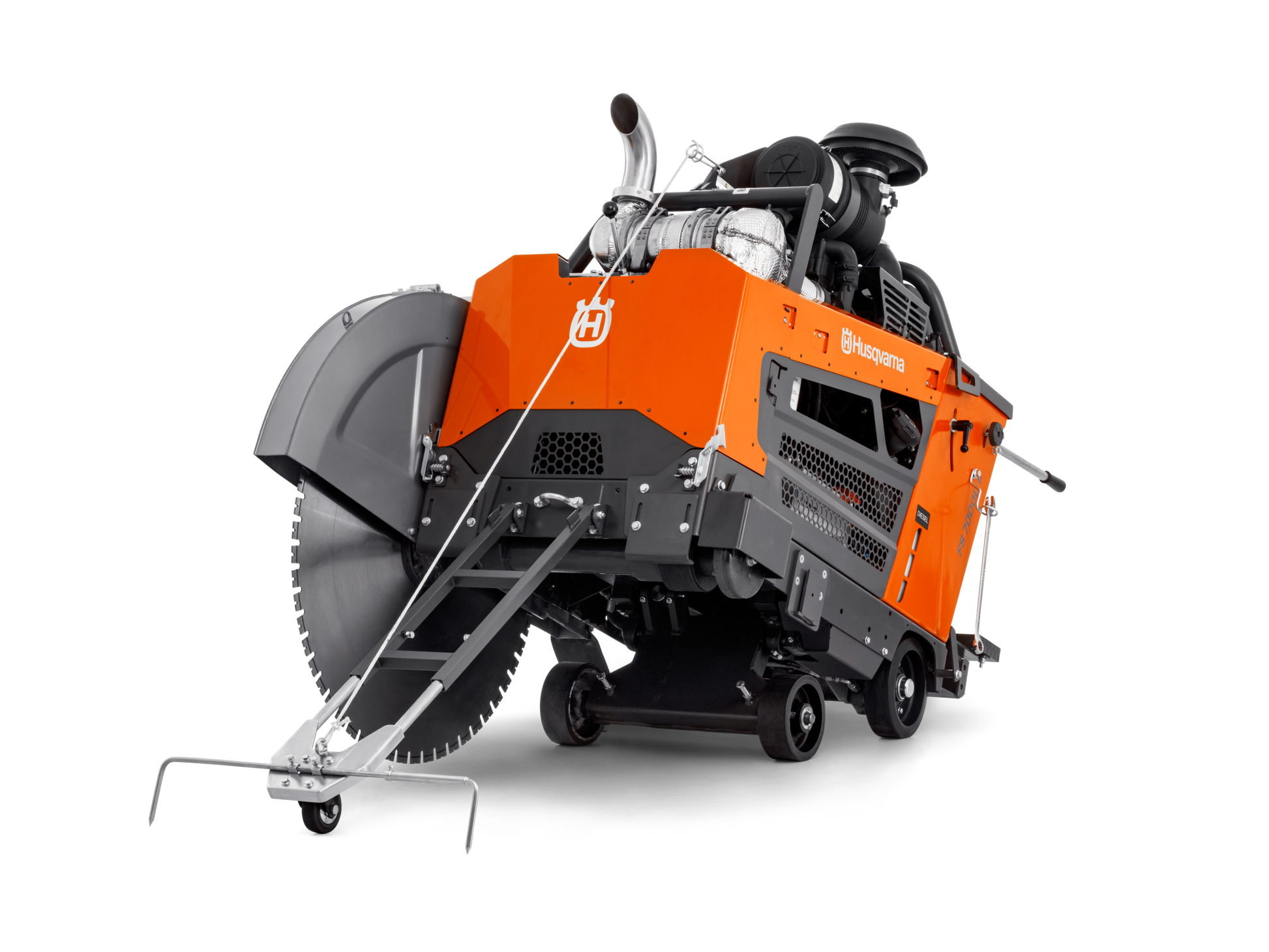

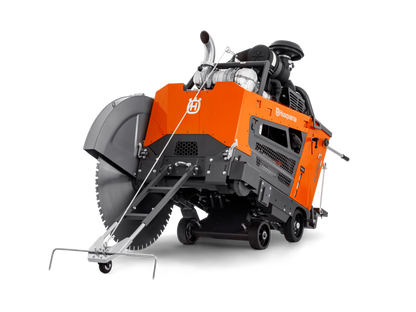

- Optional E-trak™ system lets operators adjust tracking to cut a straighter line, with a centering feature that memorizes the previous setting.
- Optional blade clutch disengages the drive if the blade is pinched or slammed, preventing damage to blade and belts.
- Can be customized with 5th wheel, light kit, water pump kit, and weight kits.
TECHNICAL SPECIFICATIONS
| Max blade diameter, in | 26" | 30" | 36" | 42" |
| Max depth of cut, in | 10-1/2" | 12-1/2" | 15" | 17-1/2" |
| Blade shaft speed, RPM | 1,762 | 1,624 | 1,354 | 1,150 |
| Blade flanges, in | 5" | 5" | 6" | 7" |
| Nominal weight (uncrated), lbs | 2,161 | 2,161 | 2,205 | 2,315 |
| Max operating weight, lbs | 2,315 | 2,315 | 2,359 | 2,469 |
Arbor: 1" with 5 drive pins. Blade guard: slip-on, auto-latch. 3-speed gearbox runs a range of blade sizes per guard at their ideal RPM.
| Engine | Deutz TD 2.9 L4, EPA Tier 4 / EU Stage V |
|---|---|
| Engine Power | 74.3 hp |
| Cylinders / Cycle | 4 / 4-stroke |
| Engine Cooling | Liquid / Air |
| Power Source | Diesel |
| Gearbox | 3-speed right-angle |
| Max Blade Diameter | 26" / 30" / 36" / 42" (by blade guard) |
| Max Cutting Depth | 10.5" / 12.5" / 15" / 17.5" (by blade guard) |
| Arbor Diameter | 1" |
| Blade Depth Control | Electric hydraulic |
| Output Shaft RPM | Nominal per guard: 1,762 (26") / 1,624 (30") / 1,354 (36") / 1,150 (42") — 3 selectable gears |
| Transmission Speed | 250 fpm forward / 280 fpm reverse |
| Dimensions (L x W x H) | 80.2" x 39.5" x 57.7" |
| Weight | 2,535 lbs |
| Emissions (CO2, EU V) | 225 g/kWh |
| Manufacturer | Husqvarna |
| Fuel Capacity | 10.6 gallons |
