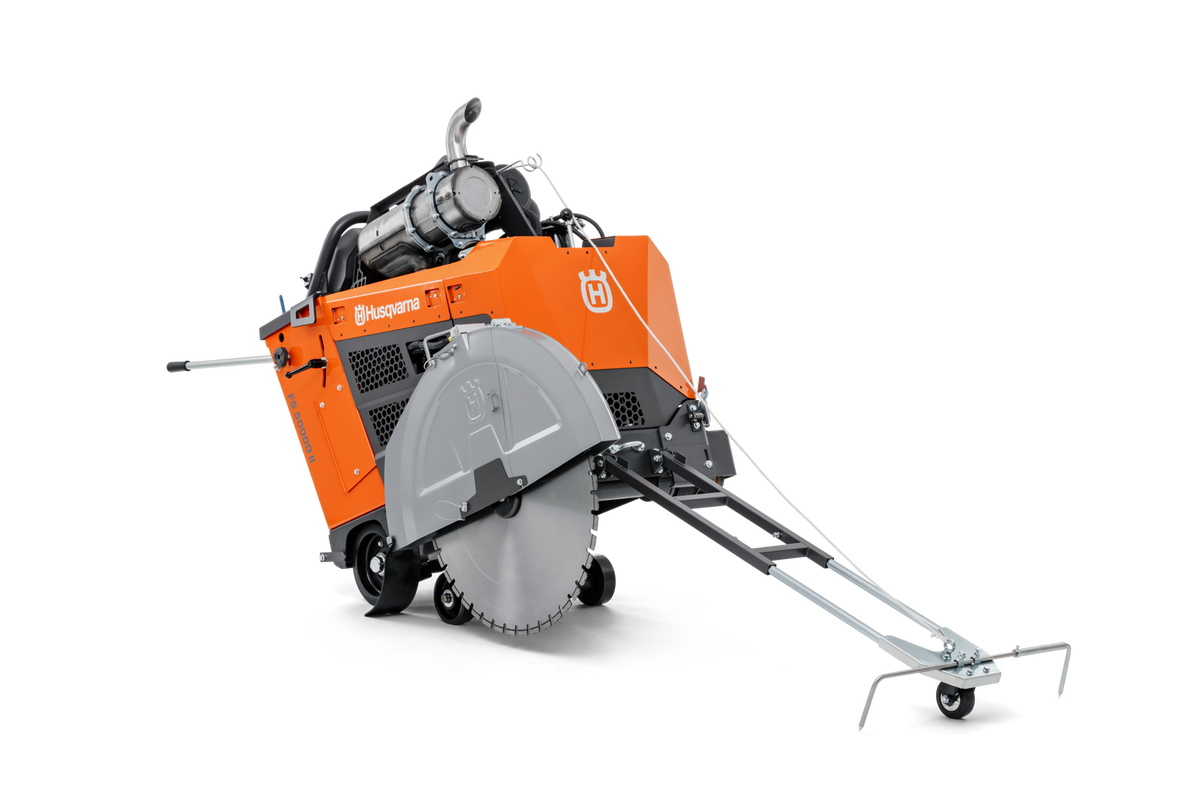

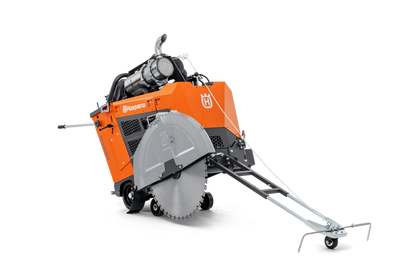

• Husqvarna FS 5000 D II diesel walk-behind floor saw

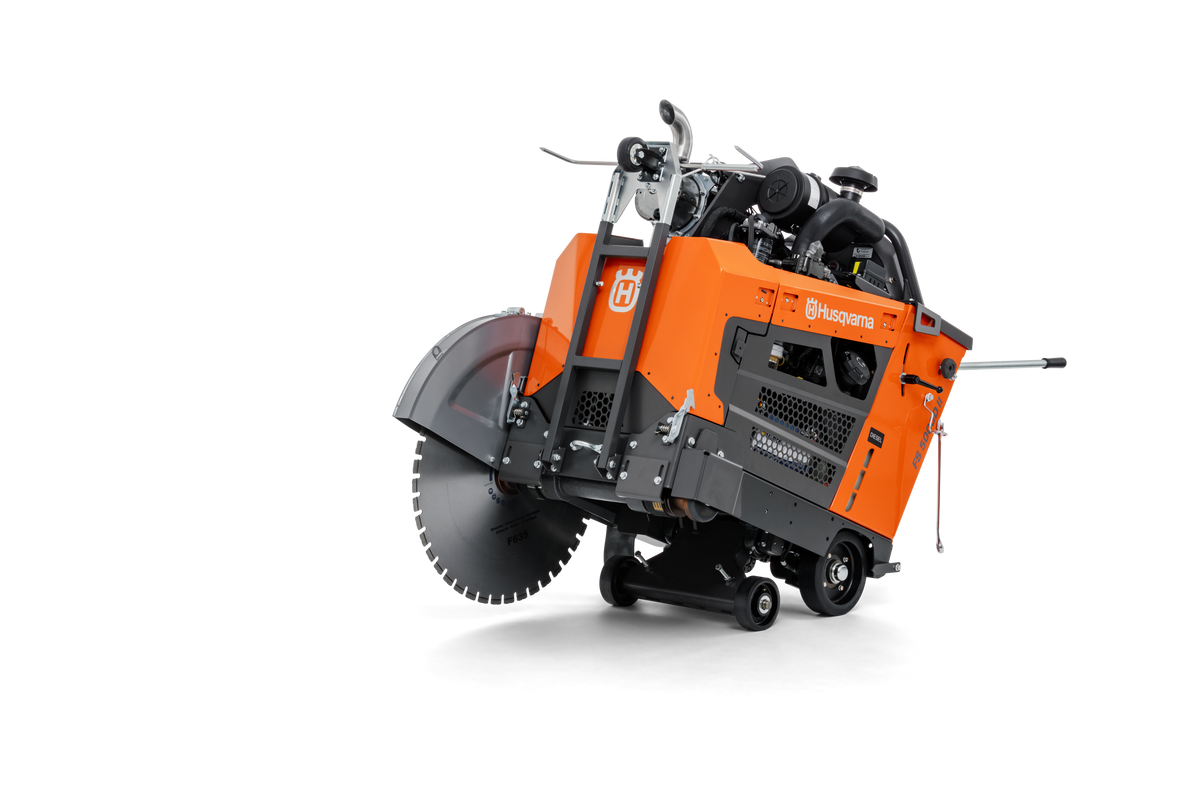

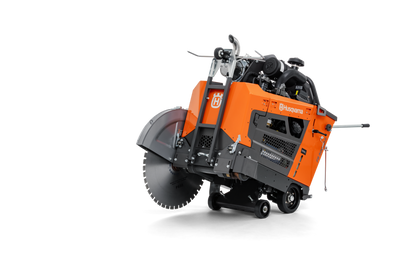

  • Husqvarna FS 5000 D II diesel floor saw - front left view

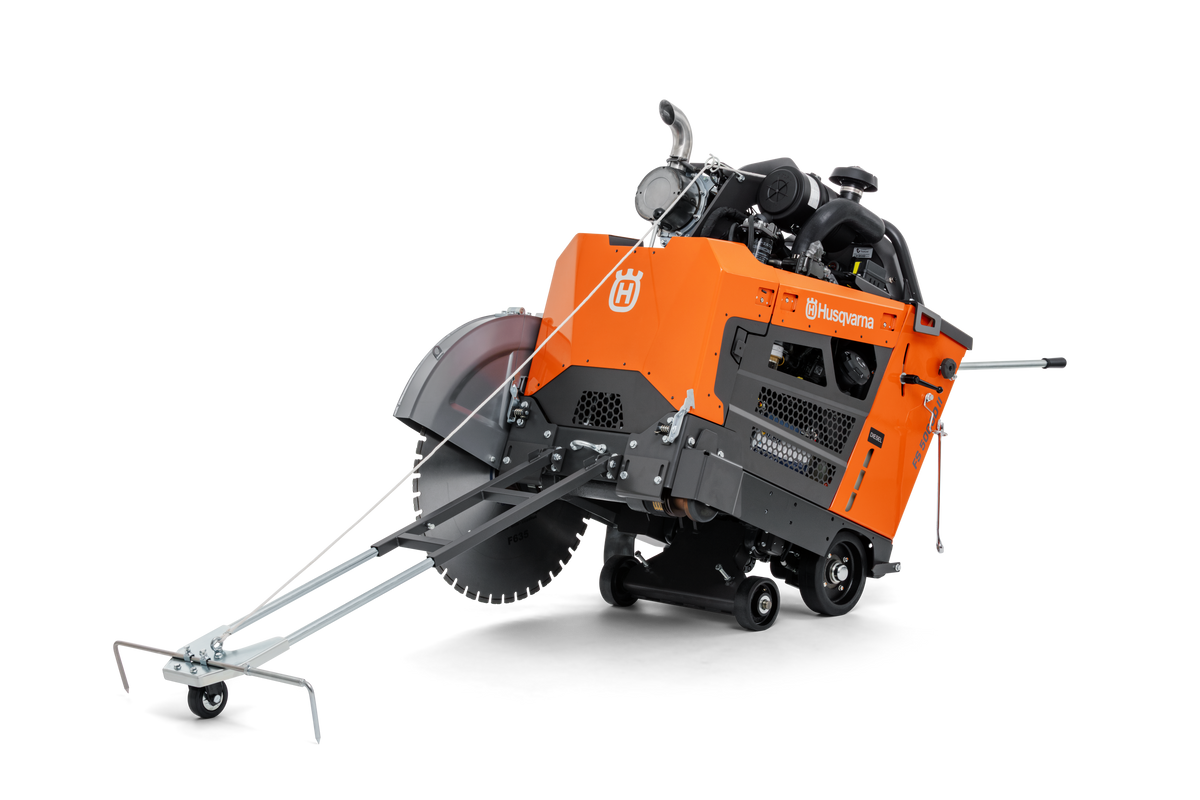

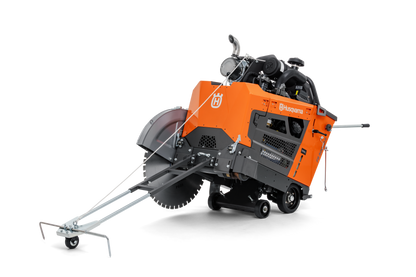

  • Husqvarna FS 5000 D II with E-track guide system - rear view

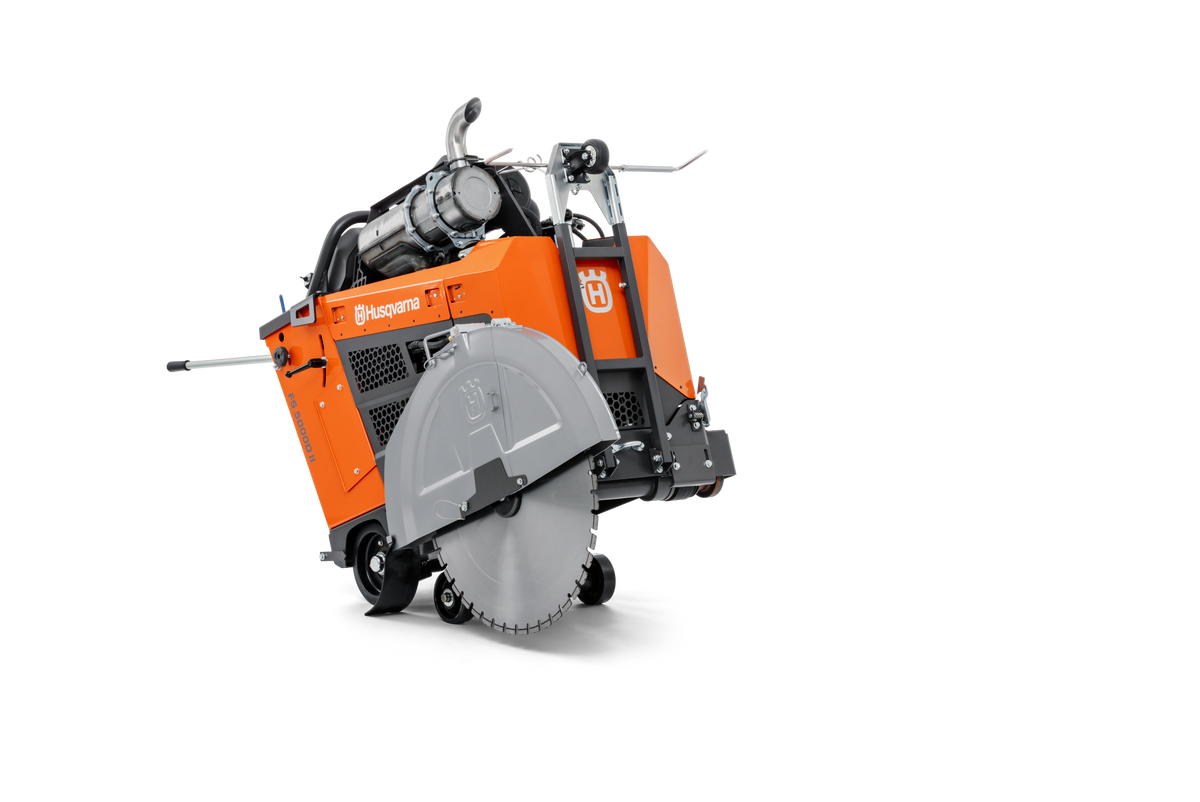

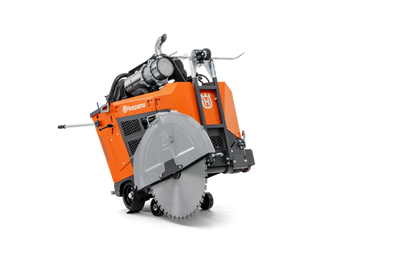

  • Husqvarna FS 5000 D II with blade guard - front right view
1 4
Vendor: Husqvarna

FS5000D II Husqvarna Diesel Concrete Saw

$39,199.00
$39,199.00
Sold out
Shipping calculated at checkout.
Sku: 970750201

Caret Down
Caret Down
Freight Shipping Required Due to its weight, this item ships via freight carrier and must be delivered to a commercial address. If a residential address is entered, a sales rep will contact you about additional charges.

Finance your Next Project

Click Here to Apply for Financing

View full details
Husqvarna FS 5000 D II diesel walk-behind floor saw
FS5000D II Husqvarna Diesel Concrete Saw
Caret Down

FS 5000 D II HUSQVARNA DIESEL WALK BEHIND SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

The FS 5000 D II is a powerful diesel walk-behind floor saw designed for high-performance cutting in asphalt and concrete. Compliant with EPA Tier 4 and EU Stage V emission regulations, it delivers exceptional torque from its Yanmar diesel engine for maximum productivity in tough conditions.

Applications

  • Perfect for jobs such as airports, highways, service work, and other applications where production is a priority.
  • Compact, well-balanced design makes it ideal for service work applications.

Benefits

  • Tier 4 compliant 47.6 HP Yanmar 4TNV88C diesel engine meets current EPA regulations.
  • IntelliSeal™ blade shaft housing creates a barrier to protect the bearings and keep contaminants out, eliminating daily maintenance.
  • Optional E-trak™ system lets operators adjust tracking to cut a straighter line, with a centering feature that memorizes the previous setting.
  • Optional blade clutch disengages the drive if the blade is pinched or slammed, preventing damage to blade and belts.
  • Can be customized with 5th wheel, light kit, water pump kit, and weight kits.

TECHNICAL SPECIFICATIONS

Max blade diameter, in 20"* 26" 30" 36"
Max depth of cut, in 7-3/4" 10-1/2" 12-1/2" 15"
Blade shaft speed, RPM 2,400 1,866 1,628 1,355
Blade flanges, in 4-1/2" 5" 5" 6"
Nominal weight (uncrated), lbs 1,667 1,678 1,687 1,700
Max operating weight, lbs 1,761 1,781 1,801 1,828

Arbor: 1" with single drive pin. Blade guard: slip-on, auto-latch. *20" is a dealer-configurable setup — contact ACE.
