Vendor: Diamond Products
First-Cut CC190PRO-EE Early Entry Saw
Regular price
$17,424.00
Regular price
Sale price
$17,424.00
Unit price
per
Shipping calculated at checkout.
Sku:
5801129

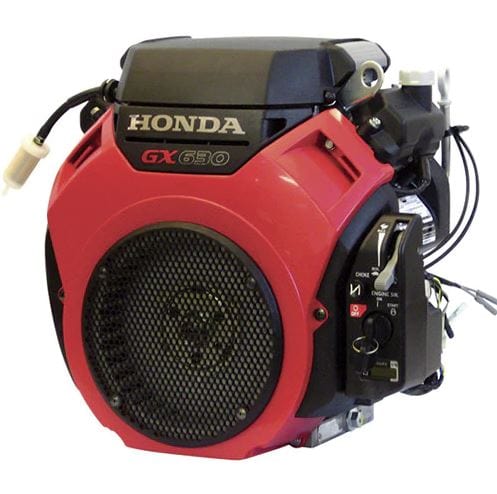

First-Cut CC190PRO Early Entry self propelled walk behind saw. Professional grade early entry saw designed to cut control joints in concrete the same day it has been placed. Honda GX630 20hp engine produces smooth torque needed for a clean cut while providing a high rate of production. Saw takes up to a 14" diameter blade and can cut up 3.5" deep. Adjustable handlebars aid in operator comfort and include electric raise-lower switch mounted by handle grips. Speed and guide arm controls are lever operated similar to competitor saws. Up-cut design pushes cutting debris away from blade to maintain a clean cut. Spring loaded skid plate helps prevent spalling and blade block diverts dust to optional vacuum side cover.
Notified by email when this product becomes available
First-Cut CC190PRO-EE Early Entry Saw
$17,424.00
FIRST-CUT CC190 EARLY ENTRY SAW
Features & Benefits:
- Maximum cutting depth of 3.5" with 14" blade (competition style saw is 2.75" with 13.5" blade)
- Self propelled drive system
- Self aligning blade shaft bearings
- Capable of blade widths ranging from .110" to .250"
- Up-cut design keeps debris out of the cut
- Lifting point for convenient transport
- Spring-loaded skid plate prevents spalling of edges
- Adjustable handlebars for operator comfort
- Optional vacuum side cover for dust collection
- Optional spot light kit
- Honda GX690 engine
- Electric actuated raise-lower
- Handlebar mounted raise-lower switch
- Guide bar operated from lever/cable system
- Speed control conveniently mounted near handlebars
| Max Depth of Cut | 3.5" |
| Blade Shaft RPM | 3500 |
| Blade Shaft Diameter | 1.250" |
| Arbor Size | 1" |
| Blade Raise/Lower | Electric Actuation |
| Transmission | Eaton Model 6 |
| Drive Speed | 0-80 Feet/Min |
| Dimensions | 44" L x 67" T x 26" W |
| Electric Start | Yes |
