    CC3500 Propane Self Propelled Core Cut Walk Behind Saw
    CC3500 Propane Self Propelled Core Cut Walk Behind Saw
    CC3500 Propane Self Propelled Core Cut Walk Behind Saw
    CC3500 Propane Self Propelled Core Cut Walk Behind Saw
    Online Safety with payment
    Diamond Products

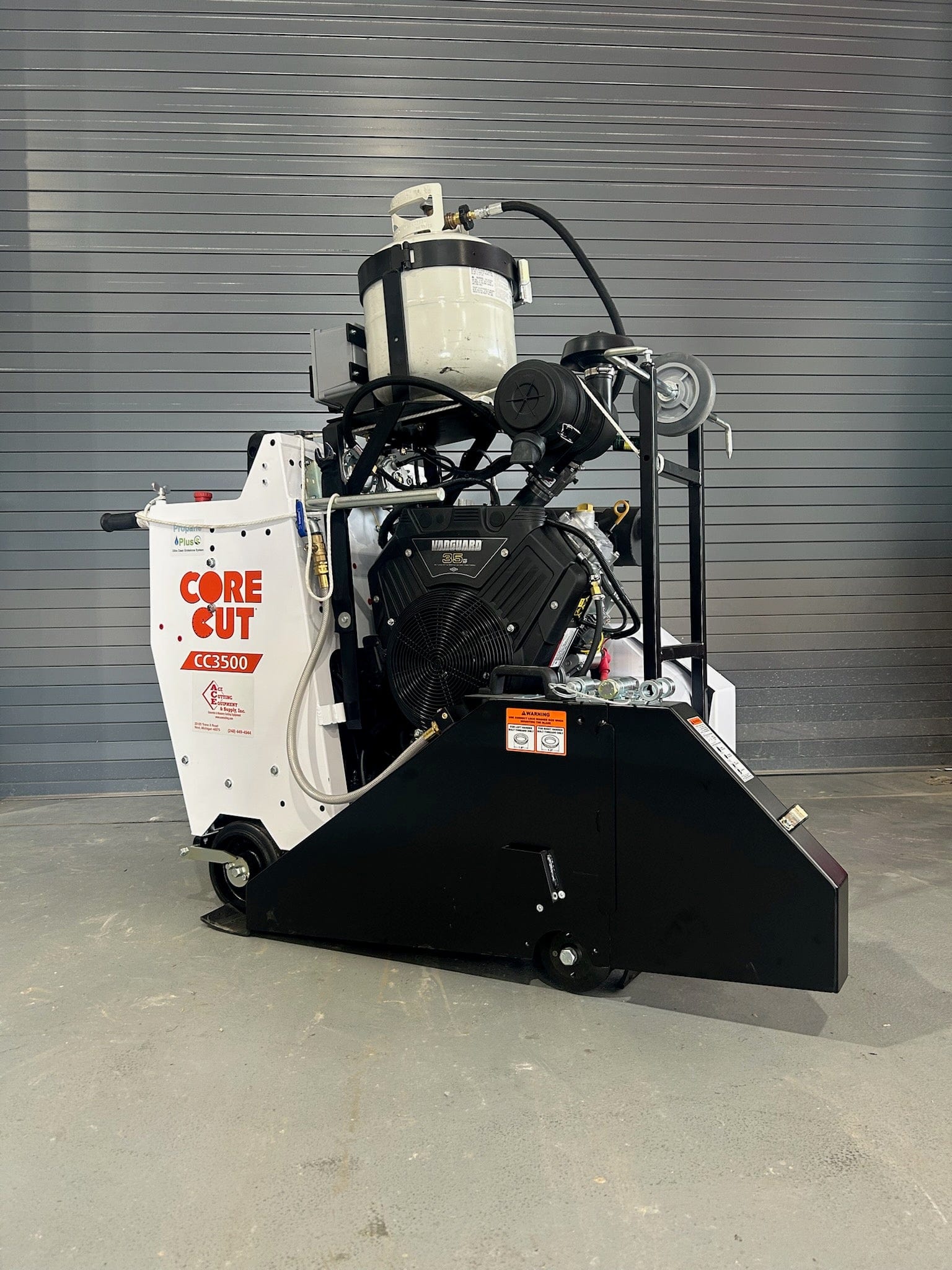

    CC3500 Propane Self Propelled Core Cut Walk Behind Saw

    SKU: 5801306 PRO

    Core Cut CC 3500 is the largest propane saw option, ability to cut 12" deep with a strong 35 HP Briggs motor.  Ability to run off either liquid propane or gas, fits through a 30" door with the strongest frame on the market!

    $20,477.00
    $20,477.00
    Shipping calculated at checkout.
    Quantity must be 1 or more

    Product options:

    Finance Your Next Project With HIL Financial

    Click Here to Apply for Financing

    We accept payment
    • Description
    • Specs
    • Reviews
    • FILES

    Description

    DIAMOND PRODUCTS CC3500 PROPANE CORE CUT SAW

    BLADE NOT INCLUDED, AVAILABLE SEPARATELY

    Propane Saws

    • Empty propane tank included for shipping reasons
    • Standard fork-lift 33 lb liquid propane tank
    • Dual fuel, propane and gas powered.  Activated by switch to go from one fuel system to another
    • Catalytic Converter (Scrubber) optional add-on for added stage of filtration from exhaust, contact for more details
    • Priced with Briggs motor - highly recommended for propane conversion and better running operation.  Kohler engine available upon request, contact for more details.

    Features & Benefits

    • Great mid-size saw for service, utility work and rental
    • Jack shaft allows full engine power
    • Easy to maneuver self propelled drive
    • Engine adjustment mechanism for belt tightening and maintenance
    • Strongest frame on the market
    • 30% more torque with new jack shaft design
    • Fits through a 30" door frame
    • Made in the USA!

    CC 3500 SPECIFICATIONS

    Max blade diameter, in 30"
    Max depth of cut, in 12-3/8"
    Bladeshaft drive 6 belts
    Weight, lbs 1,050

    Specs

    Max depth of cut with 14" blade4-5/8"
    Max depth of cut with 20" blade7-3/8"
    Max depth of cut with 26" blade10-3/8"
    Max depth of cut with 30" blade12-3/8"
    Blade shaft diameter1-3/4"
    Arbor size1" with single drive pin
    Blade shaft drive6 belts
    Blade mountingRight or left
    TransmissionEaton Model 10
    Drive speed0-200 feet per minute
    Blade raise / lowerElectro-hydraulic pump
    Air Filter4-stage
    Fuel capacity6 gallons

    Reviews

    FILES

    CC3500 Spec Sheet

    CC3500 Gas Parts List
