Vendor: Diamond Products
CC6571D Diesel Core Cut Walk Behind Saw
Regular price
$41,513.00
Regular price
Sale price
$41,513.00
Unit price
/
per
Shipping calculated at checkout.
Sku:
5801160
Couldn't load pickup availability
Product Reviews
Product Reviews



Notified by email when this product becomes available

CC6571D Diesel Core Cut Walk Behind..
Additional Info

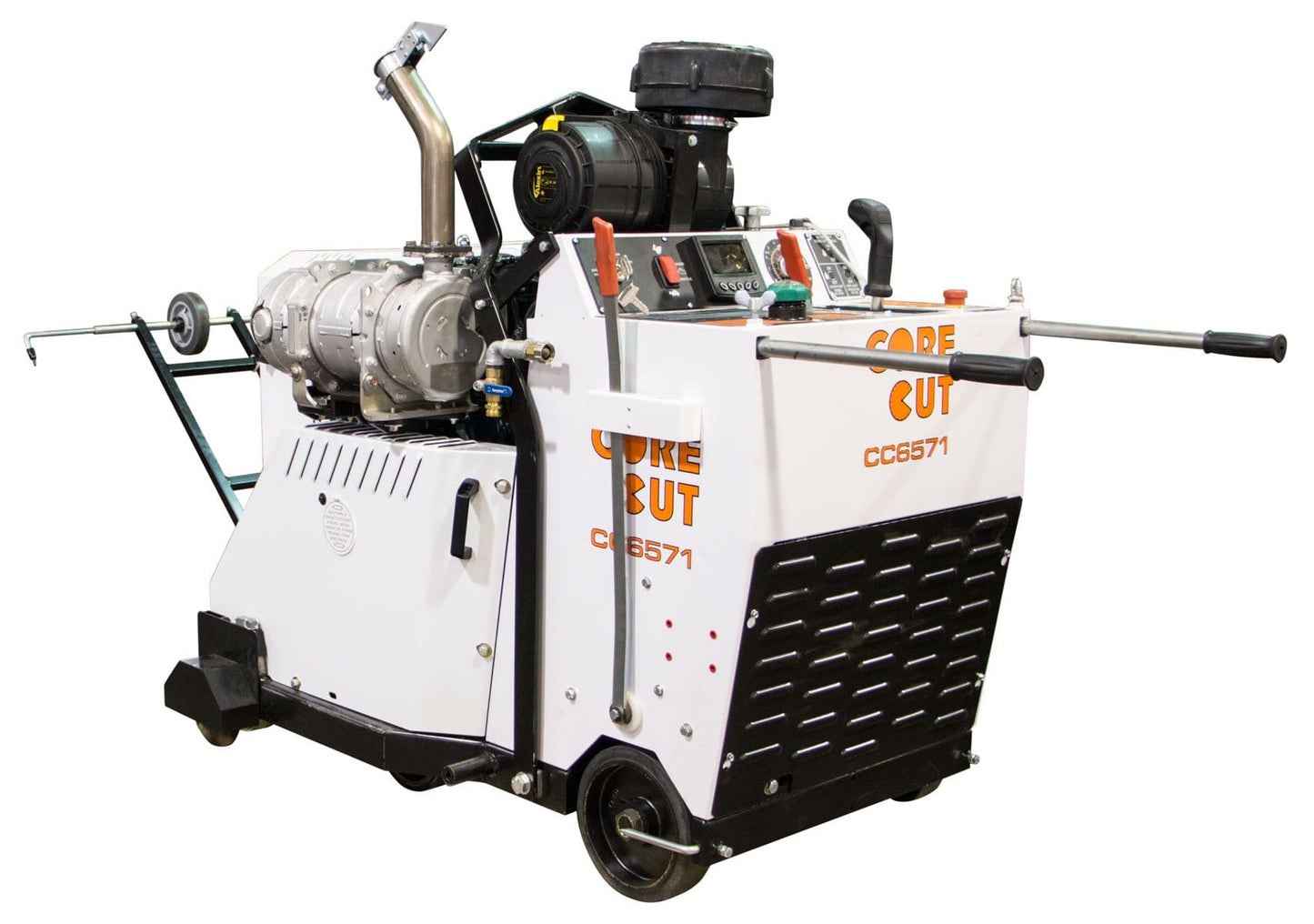

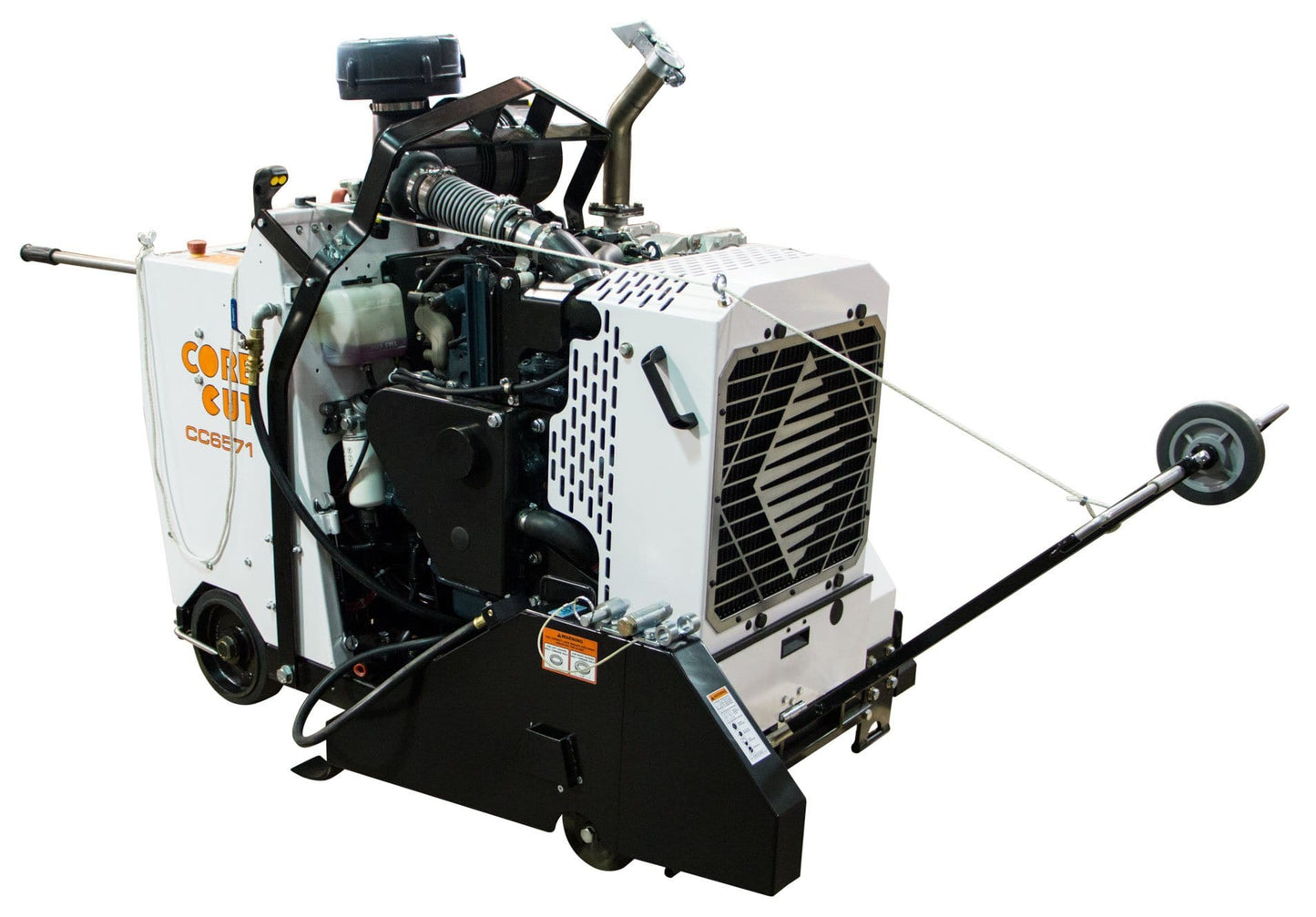

DIAMOND PRODUCTS CC6571D CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS
- Tier 4 Final liquid-cooled engine allows for a smoother running, longer lasting saw with higher productivity
- Strongest frame on the market
- Less rear weight for easy maneuvering and reduced operator fatigue
- Oil bath blade shaft comes standard
- One-hand sawing control and parking brake
- Fits through a 36” wide door frame (when guards removed)
- Quick release blade shaft / flange
- Blade shaft tachometer – where its needed – not at the engine, giving you true blade speed

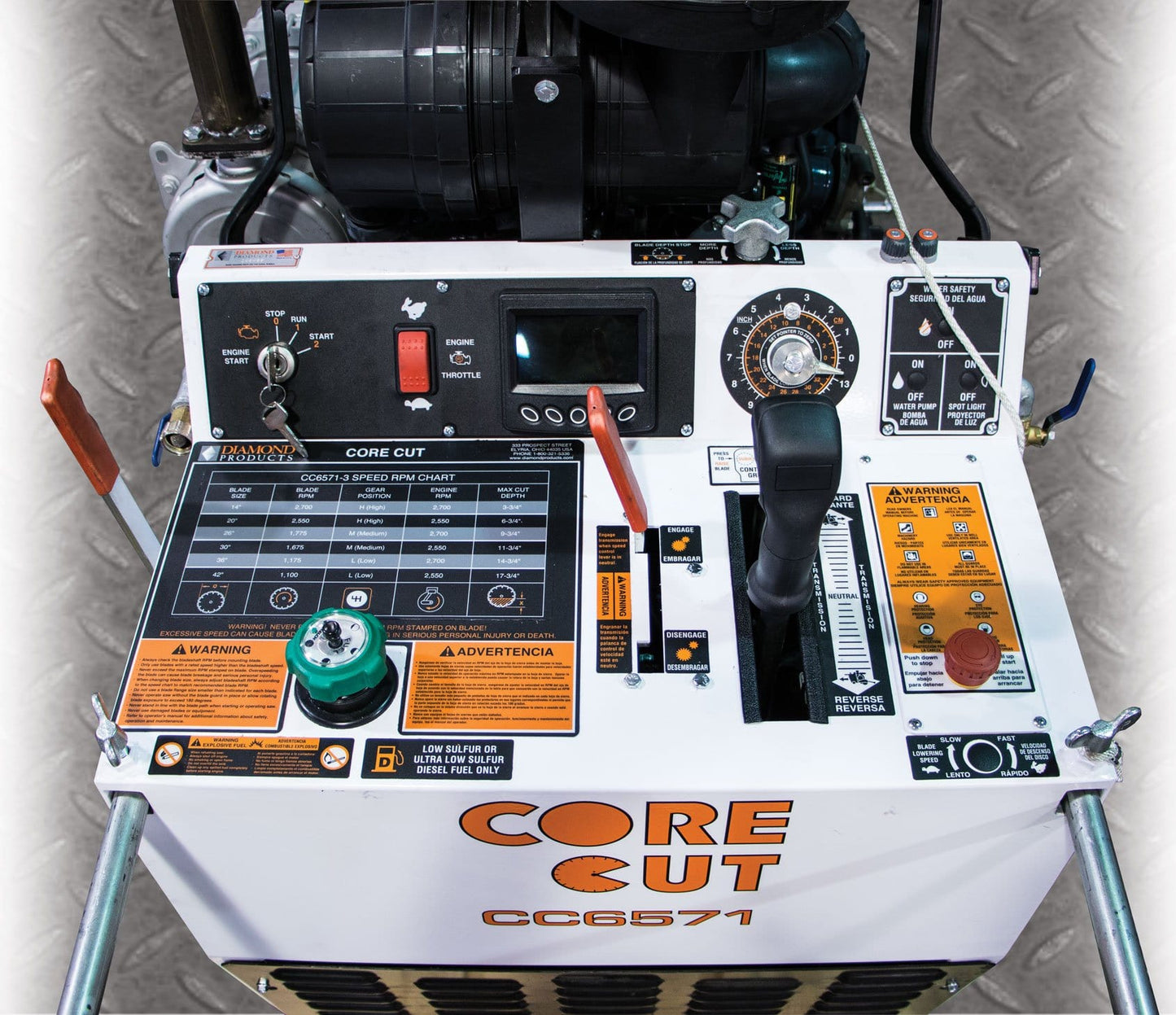

- Digital display control panel provides simple operation and complete access to diagnostic information
CC 6571D SPECIFICATIONS
Horsepower | 71 hp |
Motor | Kubota Turbo |
Max depth of cut with 42" blade | 17-3/4" |
Bladeshaft drive | 10 belts |
Bladeshaft diameter | 2" |
Weight, lbs | 1,855 |
Max depth of cut with 14" blade | 4-1/2" (3-speed 3-3/4") |
Max depth of cut with 20" blade | 7-1/2" (3-speed 6-3/4") |
Max depth of cut with 26" blade | 10-3/8" (3-speed 9-3/4") |
Max depth of cut with 30" blade | 12-3/8" (3-speed 11-3/4") |
Max depth of cut with 36" blade | 14-3/4" (3-speed 14-3/4") |
Max depth of cut with 42" blade | 17-3/4" (3-speed 17-3/4") |
Engine | Kubota Turbo Diesel |
Engine Model | V2607 Tier 4 |
Cylinders | 4 |
Blade shaft diameter | 2" |
Arbor size | 1" with single drive pin |
Blade shaft drive | 10 belts |
Blade mounting | Right or left |
Blade raise / lower | Electro-hydraulic pump |
Transmission | Eaton Model 10 |
Drive speed | 0-200 feet per minute |
Air filter | 4-stage |
Includes | Bladeshaft tachometer, Frame lift, parking brake, quick disconnect blade flanges, hour meter, telescoping front pointer, cutting depth indicator, oil bath bladeshaft |
