Vendor: Diamond Products
CC1800XL Hydraulic Self Propelled Core Cut Walk Behind Saw
Regular price
$7,164.00
Regular price
Sale price
$7,164.00
Unit price
per
Shipping calculated at checkout.
Sku:
5800647A
Core Cut's CC 1800XL medium hydraulic self propelled walk behind concrete saw is available with a 14" blade or a 20" blade and 7-5/8" max cut depth with a 20" blade. The CC 1800XL has a Danfoss hydraulic motor and is available in a 15, 20 or 25 GPM.
Notified by email when this product becomes available
CC1800XL Hydraulic Self Propelled Core Cut..
DIAMOND PRODUCTS CC1800XL HYDRAULIC SELF PROPELLED CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY

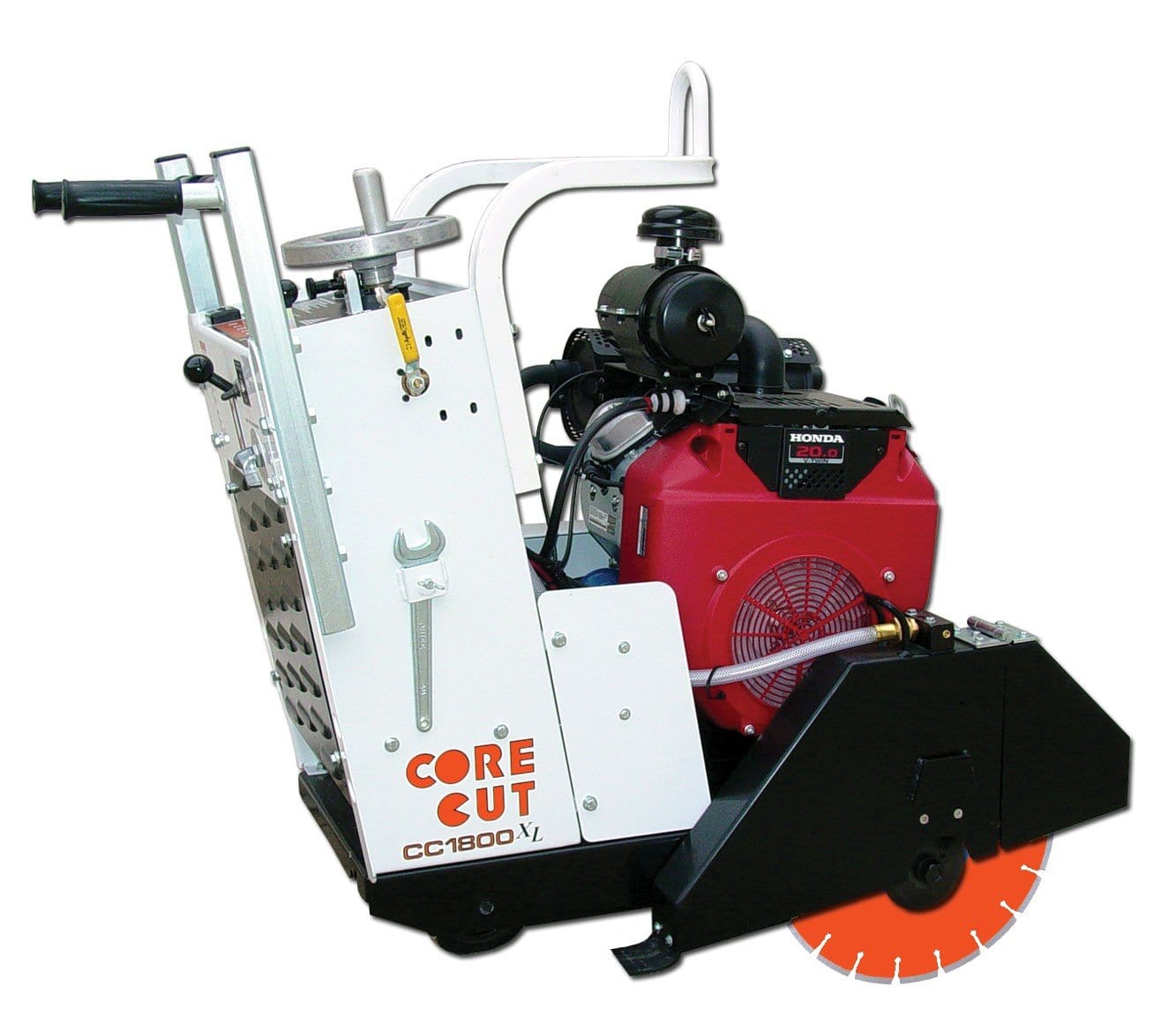

PICTURES SHOWS GAS MOTOR, HYDRAULIC IMAGE NOT AVAILABLE
Features & Benefits
- Many power options to fit your applications
- Screw feed raise and lower
- Left or right side sawing
- Lifting hook standard on all models
- Self aligning blade shaft bearings
- Made in the USA!

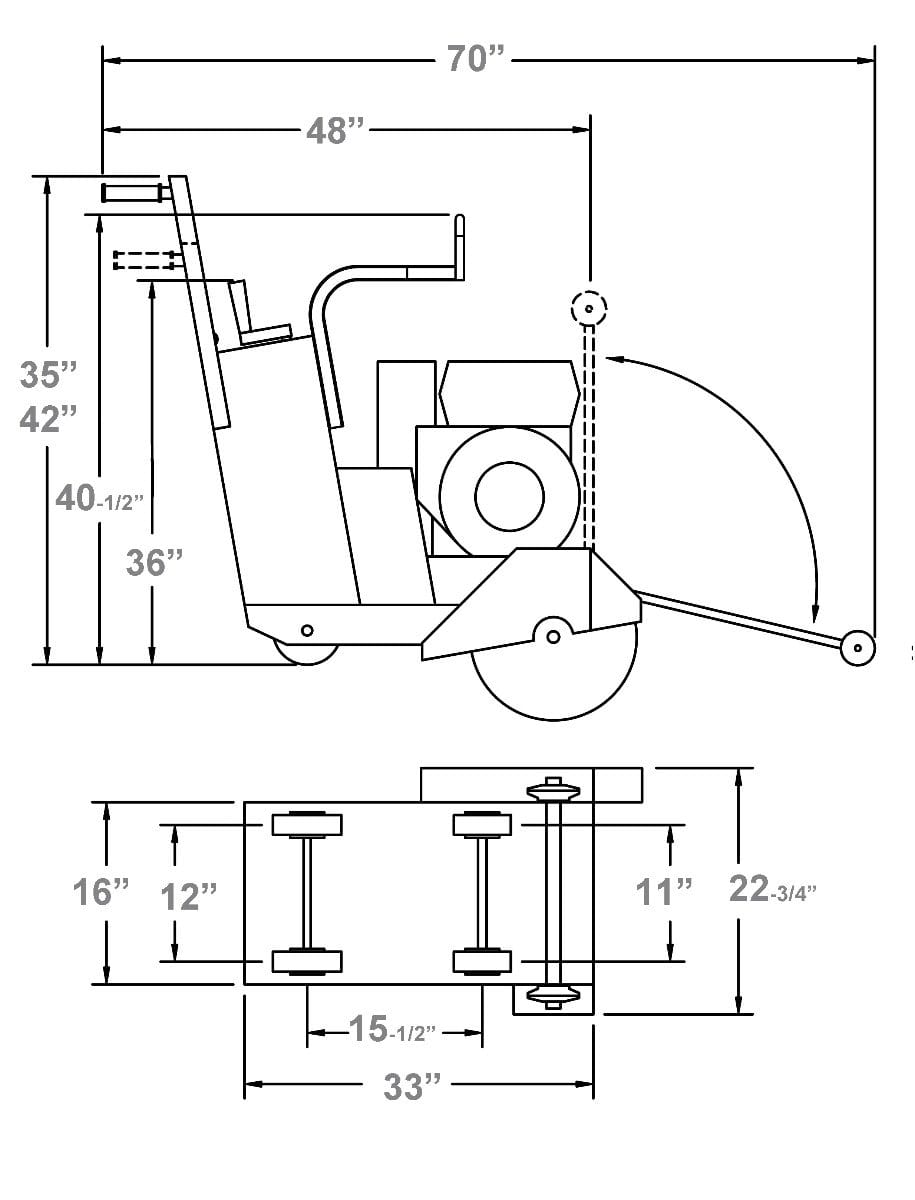

CC 1800XL SPECIFICATIONS
| Motor | 15 GPM | 20 GPM | 25 GPM |
| Power | 18 hp | 18 hp | 18 hp |
| Drive | Self Propelled | Self Propelled | Self Propelled |
| Weight, lbs | 300 | 300 | 300 |
| Max depth of cut, in | 7-5/8" | 7-5/8" | 7-5/8" |
| Bladeshaft, rpm | 2,600 | 2,600 | 2,600 |
| Max depth of cut with 20" blade | 7-5/8" |
| Blade shaft RPM | 2,600 |
| Blade shaft diameter | 1-1/4" |
| Arbor size | 1" with single drive pin |
| Blade shaft drive | 4 belts |
| Blade mounting | Right or left |
| Transmission | Eaton Model 6 |
| Drive speed | 0-80 feet per minute |
| Blade raise / lower | Precision screw feed |
