Vendor: Diamond Products

CC1300XL Hydraulic Push Core Cut Walk Behind Saw

Regular price $6,324.00
Regular price Sale price $6,324.00
Sold out
Shipping calculated at checkout.
Sku: 5800724A

Core Cut CC1300 small hydraulic walk behind concrete saw is available with a 20" blade and 7-5/8" max cut depth. Danfoss® hydraulic motor available in 15, 20 or 25 GPM. Heavy duty frame and solid sealed self-aligning blade shaft bearings make this the perfect saw for the professional contractor.

Caret Down

Product Reviews

Caret Down
View full details
CC1300XL Hydraulic Push Core Cut Walk Behind Saw
CC1300XL Hydraulic Push Core Cut Walk..
Caret Down

Additional Info

DIAMOND PRODUCTS CC1300XL HYDRAULIC SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

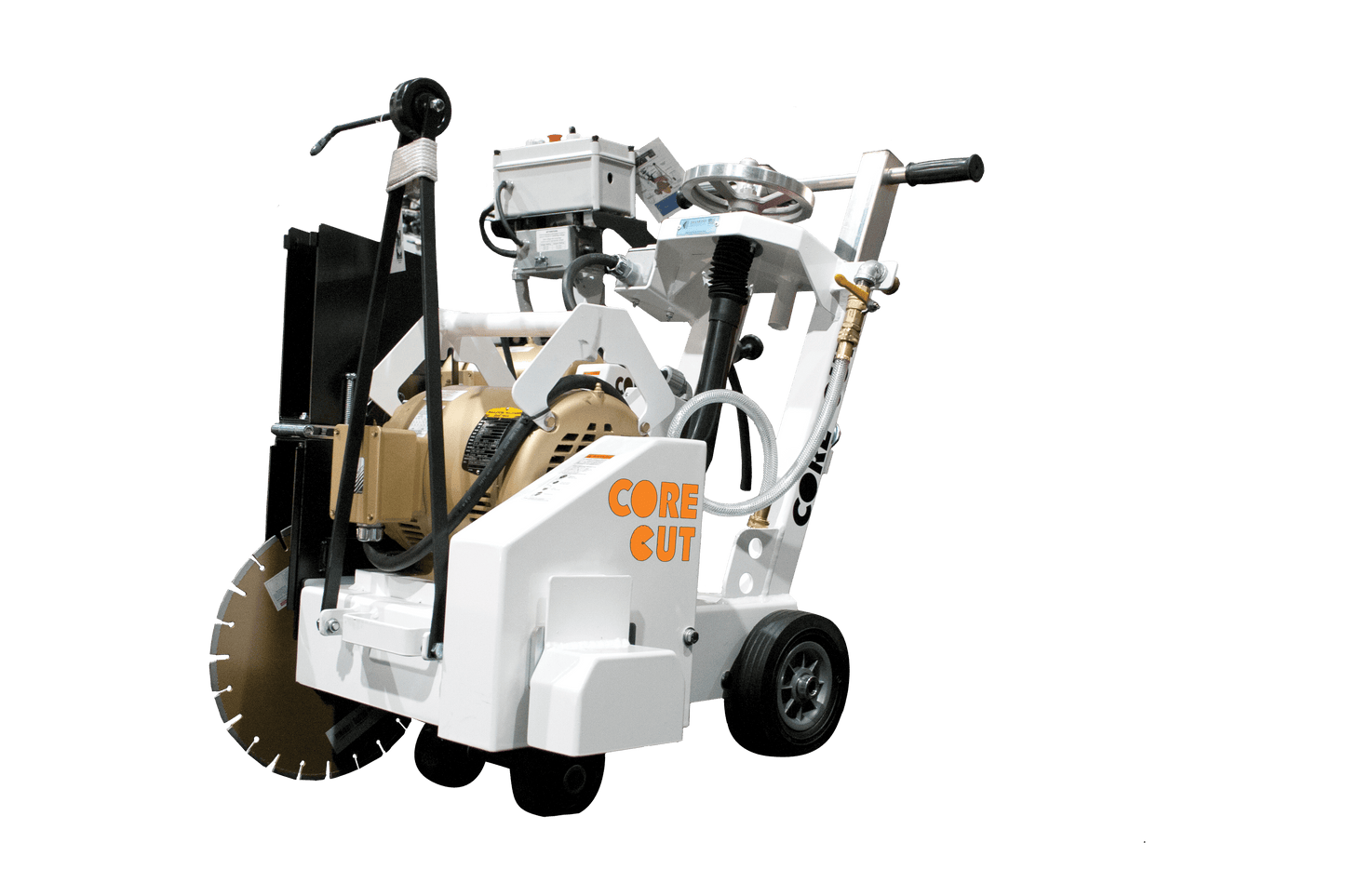

PICTURE SHOWS ELECTRIC MOTOR, HYDRAULIC IMAGE NOT AVAILABLE

Features & Benefits

  • Heavy duty frame design
  • Easy to maneuver push drive
  • Four position heavy duty handles
  • Solid sealed and self aligning blade shaft bearings
  • Slip-on blade guard for easy blade access
  • Three V-belts for extra power delivery to the bladeshaft
  • Left or right side sawing
  • Optional water tank available

CC1300XL SPECIFICATIONS

Max blade diameter, in 20"
Max depth of cut, in 7-5/8"
Average bladeshaft, RPM 2,600
Weight, lbs 230

Max depth of cut with 14" blade4-5/8"
Max depth of cut with 18" blade6-5/8"
Max depth of cut with 20" blade7-5/8"
Blade shaft RPM2,600
Blade shaft diameter1-1/4"
Arbor size1" with single drive pin
Blade mountingRight or left
Blade raise / lowerPrecision screw feed
