Diamond Products

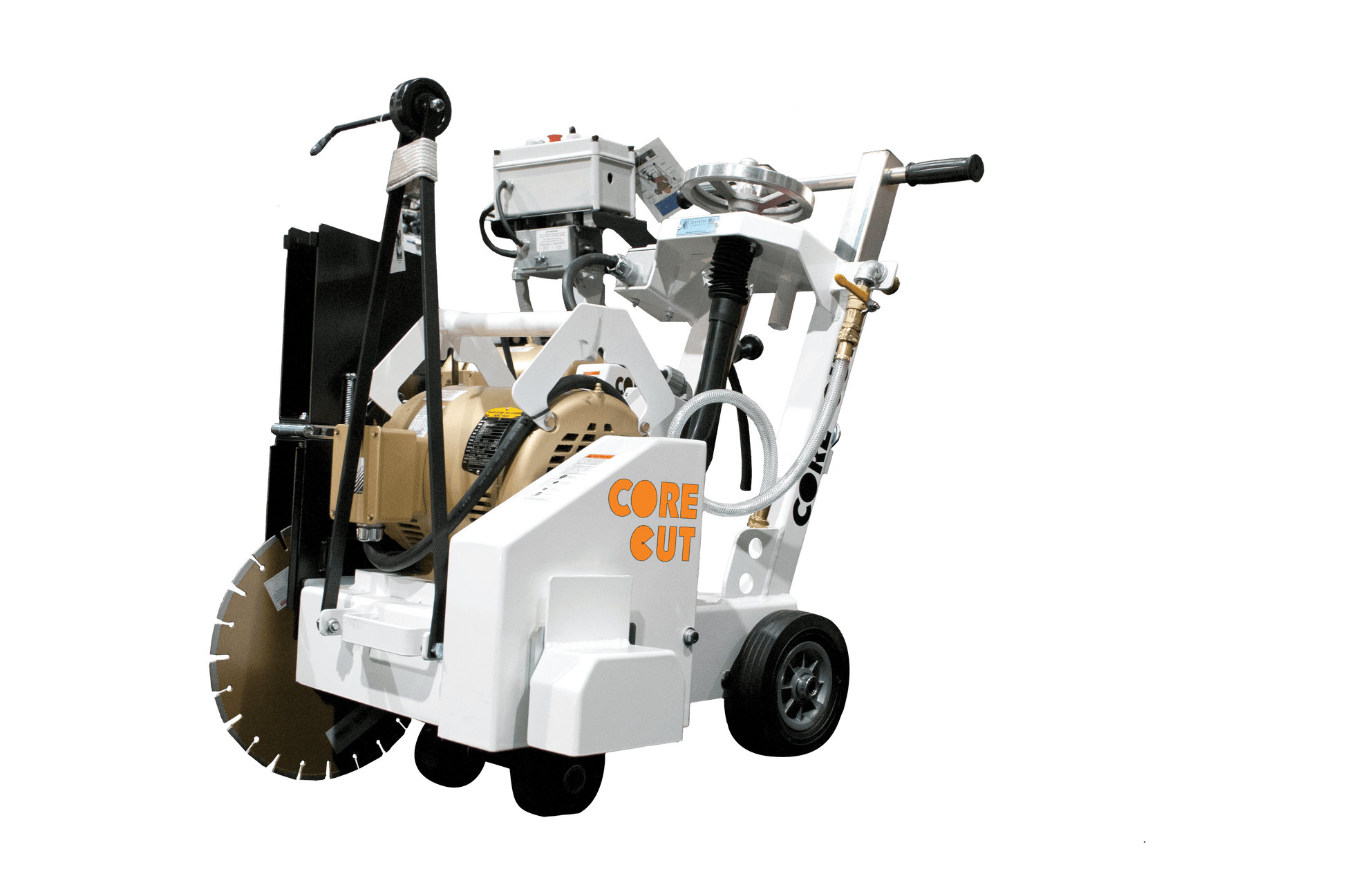

CC1300XL Electric Core Cut Walk Behind Saw

SKU: 5800577

A powerful and durable option for inside saw cutting with a light-weight saw that has many different HP and voltage options to match your needs.

Regular price $3,595.00
Sale price $3,595.00
Shipping calculated at checkout.
Quantity must be 1 or more

Product options:

Finance Your Next Project With CIT
We accept payment
  • Description
  • Specs
  • Reviews
  • FILES

Description

DIAMOND PRODUCTS CC1300XL ELECTRIC SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

NOTE 20" BLADE GUARD ONLY AVAILABLE WITH 10 HP MOTOR

Features & Benefits

  • Heavy duty frame design
  • Easy to maneuver push drive
  • Four position heavy duty handles
  • Solid sealed and self aligning blade shaft bearings
  • Slip-on blade guard for easy blade access
  • Three V-belts for extra power delivery to the bladeshaft
  • Left or right side sawing

CC1300XL SPECIFICATIONS

Max blade diameter, in 20" 18" 14"
Max depth of cut, in 7-5/8" 6-5/8" 4-5/8"
Average bladeshaft, RPM 2,600 2,600 2,600
Weight, lbs

5 hp: 280

10 hp: 320

Specs

Max depth of cut with 14" blade4-5/8"
Max depth of cut with 18" blade6-5/8"
Max depth of cut with 20" blade7-5/8"
Blade shaft RPM2,600
Blade shaft diameter1-1/4"
Arbor size1" with single drive pin
Blade mountingRight or left
Blade raise / lowerPrecision screw feed
