CC1200XL Gas Push Core Cut Walk Behind Saw
CC1200XL Gas Push Core Cut Walk..
Caret Down

Additional Info

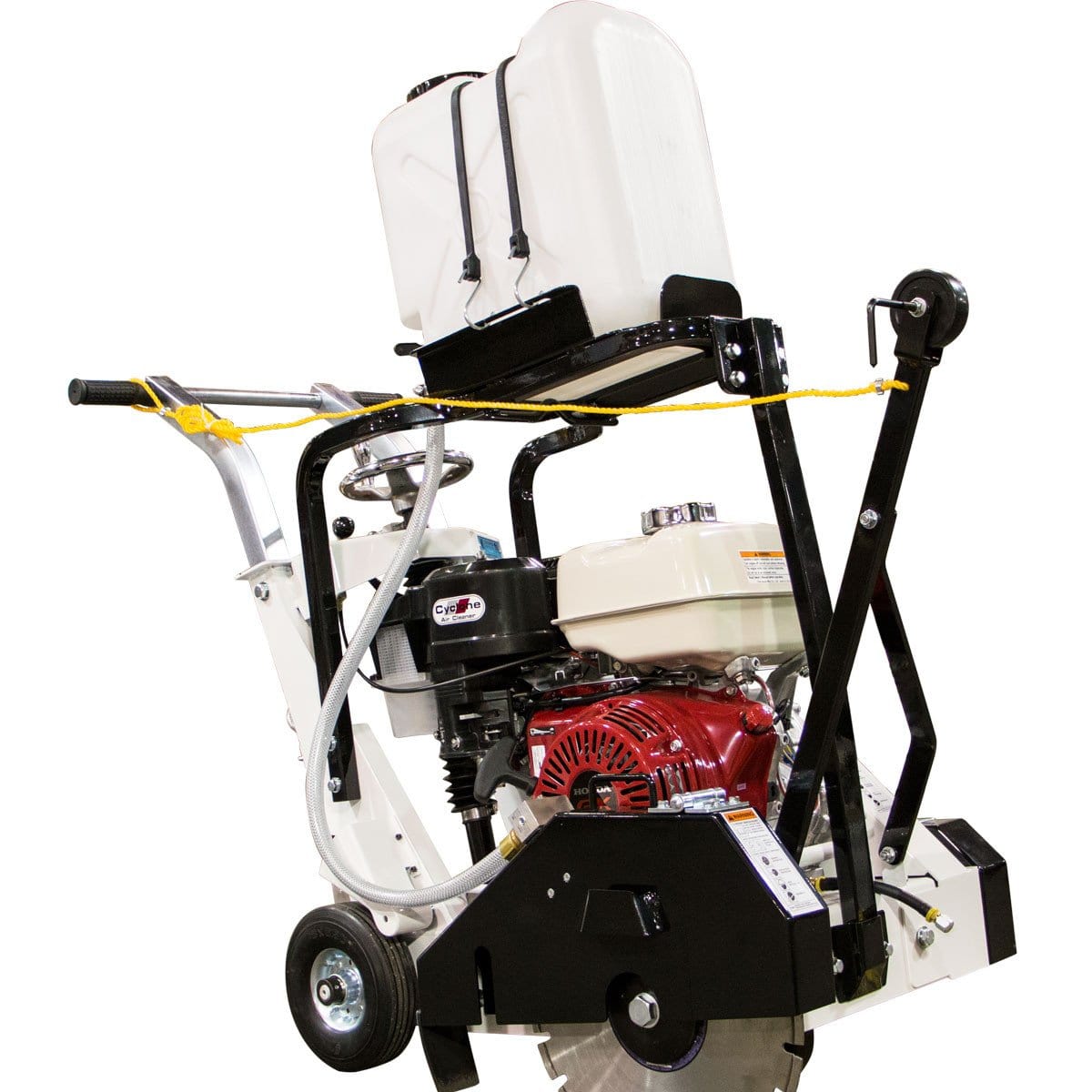

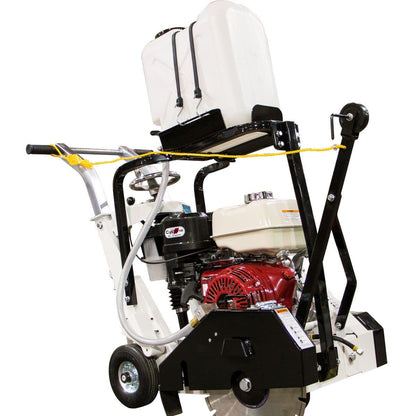

DIAMOND PRODUCTS CC1200XL GAS CORE CUT SAW

BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits

  • Heavy duty design, but light weight enough for two people to lift and carry
  • Cyclone air filter (Honda models)

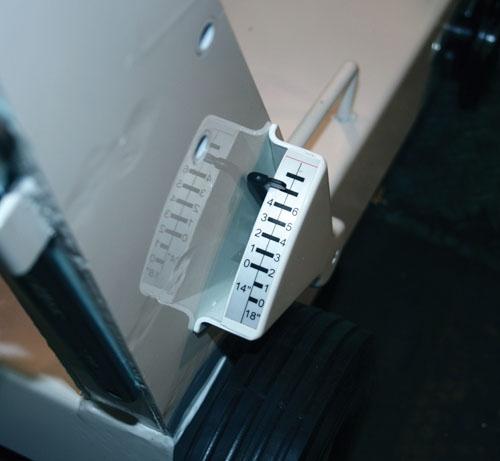

  • Easy to read built-in depth indicator
  • Slip-on blade guard
  • Heavy duty handles do not rattle
  • Left or right hand sawing
  • Poly V-belts
  • Water tank and lifting bale (tank optional-for dust suppression)
The CC1200XL is a very good, durable frame saw option for cutting up to 7" deep.  Crank raise / lower is standard quality, CC1300 is significantly better design and stronger. Ability to cut from left or right side of saw with built-in depth indicator. Water is gravity fed from optional tank. Good general purpose saw for concrete and asphalt cutting.

CC1200XL SPECIFICATIONS

Max blade diameter, in 18"
Max depth of cut, in 6-5/8"
Average bladeshaft, RPM 2,600
Weight, lbs 290

Max depth of cut with 14" blade4-5/8"
Max depth of cut with 18" blade6-5/8"
Blade shaft RPM2,600
Blade shaft diameter1-1/4"
Arbor size1" with single drive pin
Blade mountingRight or left

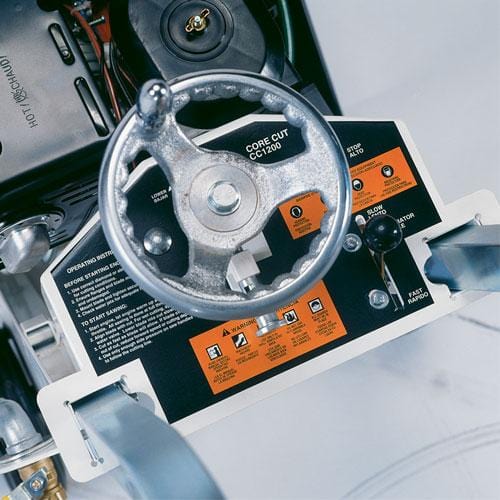

Blade raise / lowerPrecision screw feed
Depth indicatorStandard
