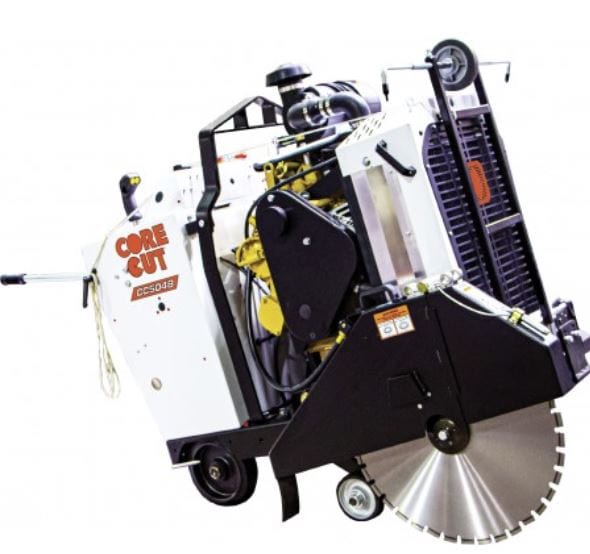

CC5048DC Diesel Core Cut Walk Behind Saw
CC5048 is equipped with Caterpillar's latest Diesel engine technology. Increase production, lower maintenance cost and better fuel efficiency with a Tier 4 Final complaint motor for powerful deep cutting demands. Able to cut up to 17.5" deep with a 42" blade.
Notified by email when this product becomes available
DIAMOND PRODUCTS CC5048DC CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
Features & Benefits
- Certified EPA / CARB Tier 4 Engine for clean reliable power with Caterpillar's latest engine technology
- Up to 17.5" deep sawing with 42" blade and 7" quick disconnect flanges
- Adjustable blade lowering speed that is dash mounted for quick precise adjustment
- Single hand sawing control with forward / reverse / raise / lower all in one ergonomic grip
- Three position handle bars set and lock at comfortable, preferred angles
- Large 6 gallon fuel tank with convenient left side filler door along with electronic low fuel level indication
- Quick access rear cover screen for inspecting and service with simple latch convenience
- Heavy duty wheels with durable polyurethane tread on front and thick rubber tread on the rear
- Automatic parking brake with hydraulic activation in stop position gate
- Robust blade shaft offers reliable support from 2 pillow block style, precision ball bearings
- Spline drive PTO gives precision zero side load drive to dampen vibration and shock loads
- Advanced air cleaner with radial seal primary and secondary filters with maintenance indicator
- Sealed electronics protection resists heat, moisture, shock and vibration
Advanced Digital Display
Enhanced, rich color graphics for superior visibility in sunlight. Three view modes to choose from: blade speed, engine speed and engine torque. Blade overspeed alert that warns of blade RPM exceeding safe limit. Engine service alerts offer maintenance reminders for optimum engine function.
Includes: Telescoping front and rear pointers, fuel cooler, low coolant level sensor, oil drain valve, air restriction indicator, travel speed push/pull cable, positive front axle depth stop, slip-on blade guard flange, polycarbonate decals, blade shaft wrench
CC5048DC SPECIFICATIONS
| Horsepower | 48.8 hp |
| Motor | CAT C2.2 (DIT) |
| Max depth of cut with 42" blade | 17-1/2"" |
| Bladeshaft drive | 8 V-belts (3VX) |
| Weight, lbs | 1,785 |
| Max depth of cut with 14" blade | 4.25" (4.5" flange) |
| Max depth of cut with 20" blade | 7.25" (4.5" flange) |
| Max depth of cut with 26" blade | 10.5" (5" flange) |
| Max depth of cut with 30" blade | 12.5" (6" flange) |
| Max depth of cut with 36" blade | 15" (6" flange) |
| Max depth of cut with 42" blade | 17.5" (7" flange) |
| Engine brand | CAT C2.2 (DIT) |
| Engine specification | 4-cylinder, 2.2 Liter |
| Max engine power | 48.8 hp @ 2,800 rpm |
| Emission regulation | EPA Tier 4 Final compliant |
| Blade shaft diameter | 1-3/4" |
| Arbor size | 1" with single drive pin |
| Blade shaft drive | 8 V-belts (3VX) |
| Blade mounting | Right or left |
| Blade raise / lower | Electro-hydraulic power unit with push button control |
| Transmission | Hydro pump powering dual wheel motors |
| Drive speed | 0-220 feet per minute |
| Air filter | 4-stage with restriction indicator |
| Fuel Capacity | 6 gallons |
