Vendor: Diamond Products

CC3500 Electric Self Propelled Core Cut Walk Behind Saw

Regular price $18,803.00
Regular price Sale price $18,803.00
Sold out
Shipping calculated at checkout.
Sku: 5800784A

The Core Cut CC 3500 electric self propelled saw comes standard with electro-hydraulic pump for easily raising and lowering the blade. Ability to cut up to 12" deep, powerful and compact features able to handle larger cutting jobs.

Caret Down
Caret Down
Caret Down

Product Reviews

Caret Down
View full details
CC3500 Electric Self Propelled Core Cut Walk Behind Saw
CC3500 Electric Self Propelled Core Cut..
Caret Down

Additional Info

DIAMOND PRODUCTS CC3500 ELECTRIC CORE CUT SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

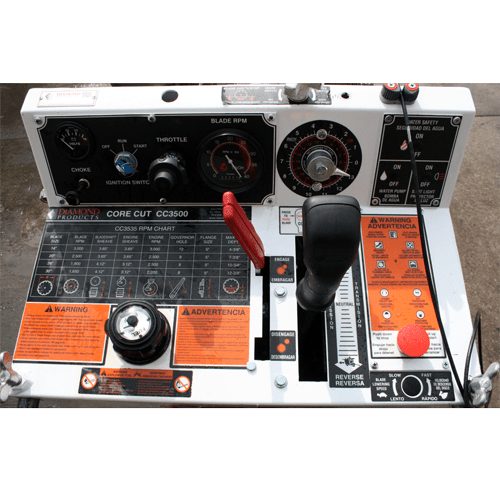

PICTURES SHOWS GAS MOTOR, ELECTRIC IMAGE NOT AVAILABLE

Features & Benefits

  • Great mid-size saw for service, utility work and rental
  • Jack shaft allows full engine power
  • Easy to maneuver self propelled drive
  • Engine adjustment mechanism for belt tightening and maintenance
  • Strongest frame on the market
  • Fits through a 30" door frame

CC 3500 SPECIFICATIONS

Horsepower, hp 20 20 30
Voltage, v 230v 460v 460v
Power supply, phase 3-phase 3-phase 3-phase
Motor Amps 52 26 37
Weight, lbs 1,050 1,050 1,095

Max depth of cut with 14" blade4-3/8"
Max depth of cut with 20" blade7-3/8"
Max depth of cut with 26" blade10-3/8"
Max depth of cut with 30" blade12-3/8"
Blade shaft diameter1-3/4"
Arbor size1" with single drive pin
Blade shaft drive6 belts
Blade mountingRight or left
Blade raise / lowerElectro-hydraulic pump
TransmissionEaton Model 10
Drive speed0-200 feet per minute
Blade raise / lowerElectro-hydraulic pump
IncludesHour meter, frame lift, cutting depth indicator, quick disconnect blade flanges, telescoping front pointer
