Vendor: Diamond Products

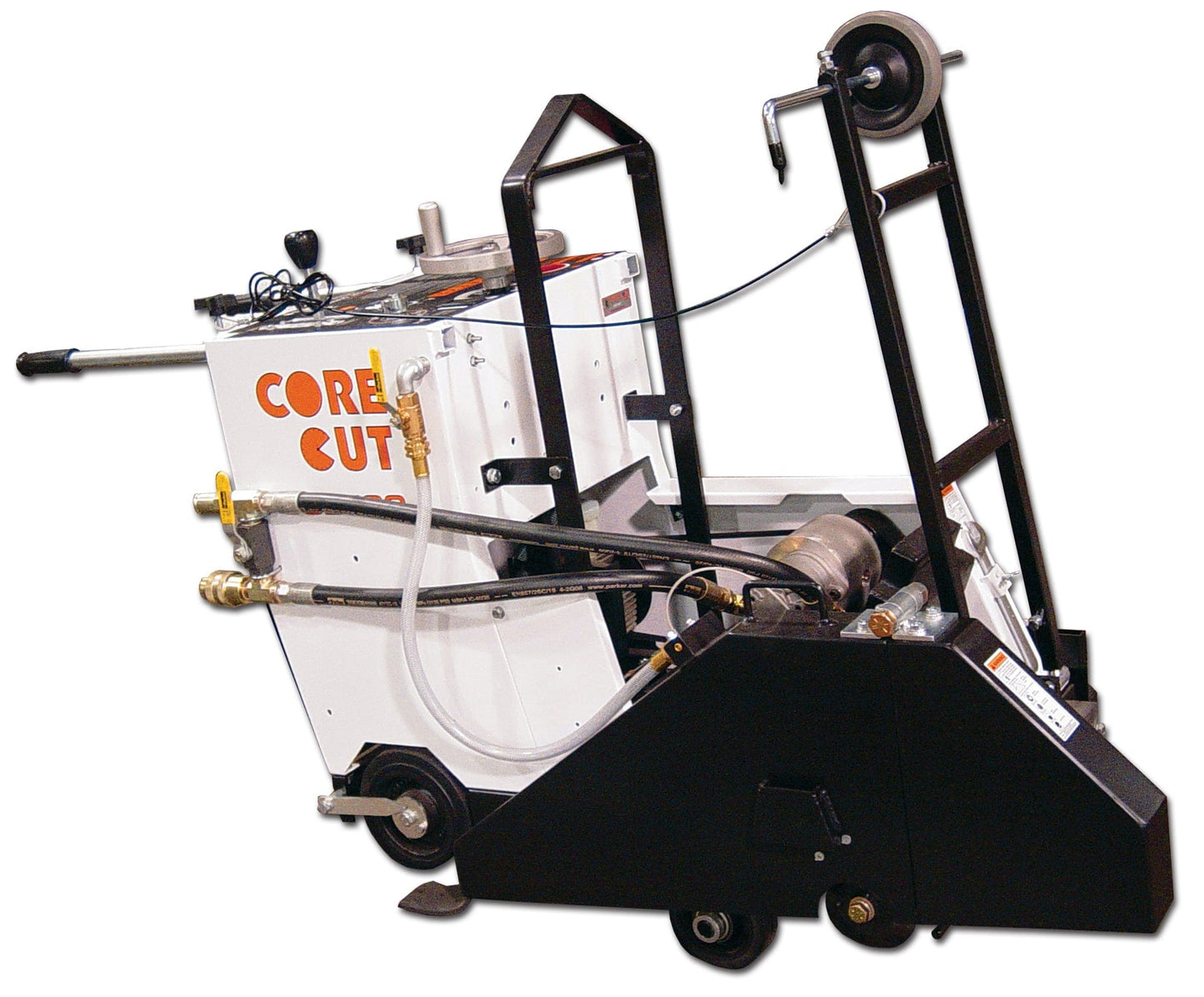

CC2500 Hydraulic Self Propelled Core Cut Walk Behind Saw
Regular price
$10,116.00
Regular price
Sale price
$10,116.00
Unit price
per
Shipping calculated at checkout.
Sku:
5800489
This mid-size self-propelled hydraulic saw comes standard with a crank raise and lower assembly with electric start. Ability to hold a 26" blade with maximum 10-3/8" cutting depth.
Notified by email when this product becomes available
CC2500 Hydraulic Self Propelled Core Cut..
DIAMOND PRODUCTS CC2500 HYDRAULIC CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
Features & Benefits
- Rigid high strength 3/16" steel box frame with heavy bar reinforcement
- 2 position tilt handle bars
- Screw feed raise and lower with optional power raise / lower (shown in picture)
- Two position tilt handle bars
- Positive gear drive to rear axle via Eaton hydrostatic transmission
- Frame lift
- Cutting depth indicator
- Made in the USA!
CC 2500 SPECIFICATIONS
| Horsepower | 25 HP |
| Motor | Webster 25 GPM |
| Weight, lbs | 625 |
| Max depth of cut with 14" blade | 4-5/8" |
| Max depth of cut with 20" blade | 7-3/8" |
| Max depth of cut with 26" blade | 10-3/8" |
| Engine/Motor Power | 25 HP, 25 GPM @ 2000 PSI |
| Blade shaft RPM | Varies |
| Blade shaft diameter | 1-1/2" |
| Arbor size | 1" with single drive pin |
| Starter | Electric start |
| Blade shaft drive | 4 belts on 20.8 hp 5 belts on 25 hp |
| Blade mounting | Right or left |
| Transmission | Eaton Model 7 |
| Drive speed | 0-130 feet per minute |
| Blade raise / lower | Precision screw feed |
