Vendor: Diamond Products
CC2500 Electric Self Propelled Core Cut Walk Behind Saw
Regular price
$12,134.00
Regular price
Sale price
$12,134.00
Unit price
per
Shipping calculated at checkout.
Sku:
5800400A

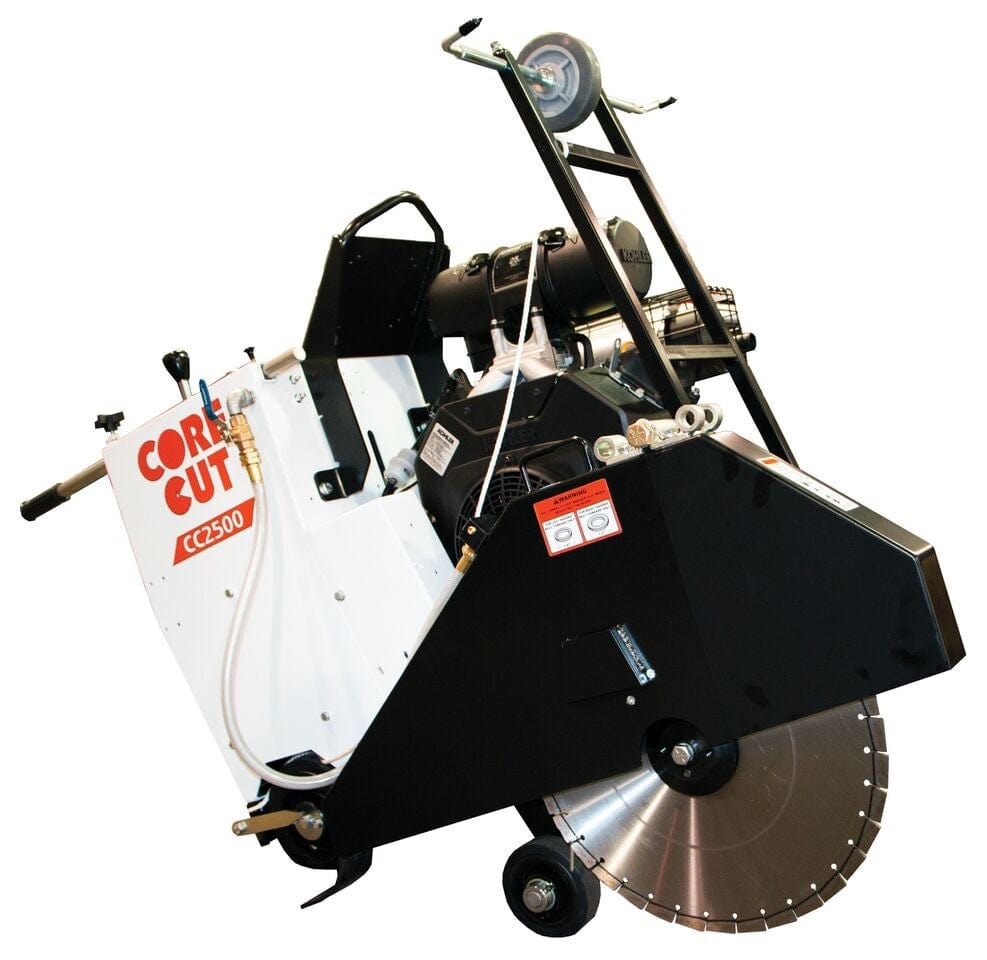

This mid-size self-propelled electric saw comes standard with a crank raise and lower assembly with optional hydraulic control switch. Ability to hold up to a 26" blade with max 10-3/8" cutting depth. Delivers the power of a large saw in a compact frame!
Notified by email when this product becomes available
CC2500 Electric Self Propelled Core Cut..
DIAMOND PRODUCTS CC2500 ELECTRIC CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
Features & Benefits
- Rigid high strength 3/16” steel box frame with heavy bar reinforcement
- 2 position tilt handle bars
- Screw feed raise and lower with optional power raise / lower
- Two position tilt handle bars
- Positive gear drive to rear axle via Eaton hydrostatic transmission
- Frame lift
- Cutting depth indicator
- Made in the USA!
CC 2500 SPECIFICATIONS
| Horsepower, hp | 15 | 15 | 15 |
| Voltage, v | 230v | 460v | 460v |
| Power supply, phase | 3-phase | 3-phase | 3-phase |
| Motor Amps | 36 | 18 | 18 |
| Blade guard, in | 14" | 20" | 26" |
| Max depth of cut | 4-5/8" | 7-3/8" | 10-3/8" |
| Weight, lbs | 670 | 700 | 705 |
| Max depth of cut with 26" blade | 10-3/8" |
| Motor | Leeson 15 HP |
| Blade shaft RPM | Varies |
| Blade shaft diameter | 1-1/2" |
| Arbor size | 1" with single drive pin |
| Blade shaft drive | 4 belts |
| Blade mounting | Right or left |
| Transmission | Eaton Model 6 |
| Drive speed | 0-130 feet per minute |
| Blade raise / lower | Precision screw feed |
