Vendor: Diamond Products

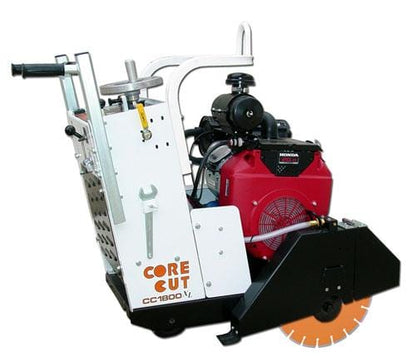

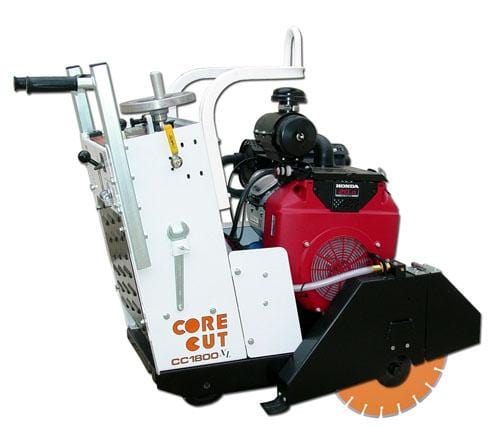

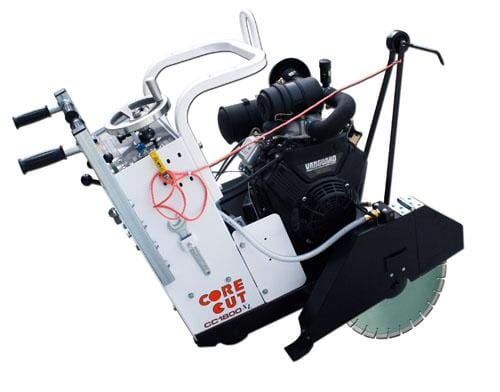

CC1800XL Gas Self Propelled Core Cut Walk Behind Saw

$6,459.00
$6,459.00
Sold out
Shipping calculated at checkout.
Sku: 5800643

Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
CC1800XL Gas Self Propelled Core Cut Walk Behind Saw
CC1800XL Gas Self Propelled Core Cut..
Caret Down

Additional Info

DIAMOND PRODUCTS CC1800XL GAS SELF PROPELLED CORE CUT SAW

BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits

  • Many power options to fit your applications
  • Electric start option on Honda and Briggs Vanguard models
  • Pull start backup on Briggs Vanguard model
  • Easy access to battery with heavy duty isolator switch to prevent battery drain
  • Screw feed raise and lower
  • Left or right side sawing
  • Lifting hook standard on all models
  • Self aligning blade shaft bearings
  • Made in the USA!

CC 1800XL SPECIFICATIONS

Motor Honda GX390 Honda GX390 E/S Briggs Vanguard Honda GX630 Briggs Vanguard E/S
Power 11.7 hp 11.7 hp 16 hp 20.8 hp 23 hp
Starter Recoil Electric start Recoil Electric start Electric start
Weight, lbs 380 395 380 470 460
Max depth of cut, in 7-5/8" 7-5/8" 7-5/8" 9-5/8" 7-5/8"
Bladeshaft, rpm 2,600 2,600 2,600 2,600 2,600

Max depth of cut with 24" blade9-5/8"
Blade shaft RPM2,600
Blade shaft diameter1-1/4"
Arbor size1" with single drive pin
Blade shaft drive3 belts on 11.7 hp
4 belts
Blade mountingRight or left
TransmissionEaton Model 6
Drive speed0-80 feet per minute
Fuel capacity2 gallons
Blade raise / lowerPrecision screw feed

CC1800XL Spec Sheet

CC1800XL Gas Parts List
