Vendor: Diamond Products
CC1800XL Electric Push Core Cut Walk Behind Saw
Regular price
$7,877.00
Regular price
Sale price
$7,877.00
Unit price
per
Shipping calculated at checkout.
Sku:
5800628
Notified by email when this product becomes available
CC1800XL Electric Push Core Cut Walk..
DIAMOND PRODUCTS CC1800XL ELECTRIC PUSH CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY

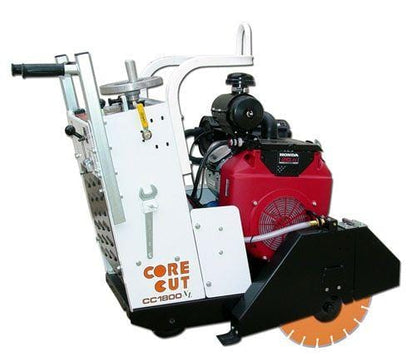

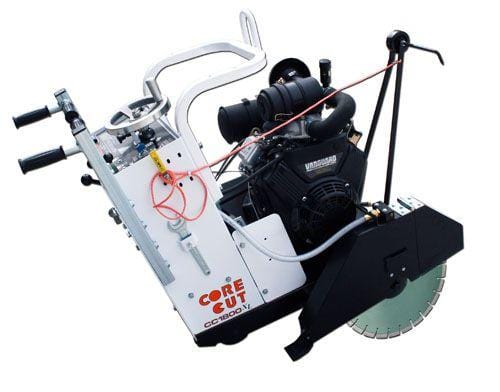

PICTURE SHOWS GAS MOTOR, ELECTRIC IMAGE NOT AVAILABLE
Features & Benefits
- Many power options to fit your applications
- Screw feed raise and lower
- Left or right side sawing
- Lifting hook standard on all models
- Self aligning blade shaft bearings
- Made in the USA!
CC 1800XL SPECIFICATIONS
| Horsepower, hp | 7.5 | 10 | 10 |
| Voltage, v | 230v | 230v | 460v |
| Power supply, phase | 1-phase | 3-phase | 3-phase |
| Motor Amps | 33 | 24 | 12 |
| Weight, lbs | 395 | 420 | 425 |
|
Max depth of cut with 20" blade |
7-5/8" | 7-5/8" | 7-5/8" |
| Max depth of cut with 20" blade | 7-5/8" |
| Blade shaft RPM | 2,600 |
| Blade shaft diameter | 1-1/4" |
| Arbor size | 1" with single drive pin |
| Blade shaft drive | 4 belts |
| Blade mounting | Right or left |
| Blade raise / lower | Precision screw feed |
