Vendor: Ace Cutting
CC1300XL Propane Core Cut Walk Behind Saw
Regular price
$6,532.00
Regular price
Sale price
$6,532.00
Unit price
per
Shipping calculated at checkout.
Sku:
5800723-P
Notified by email when this product becomes available
CC1300XL Propane Core Cut Walk Behind..
$6,532.00

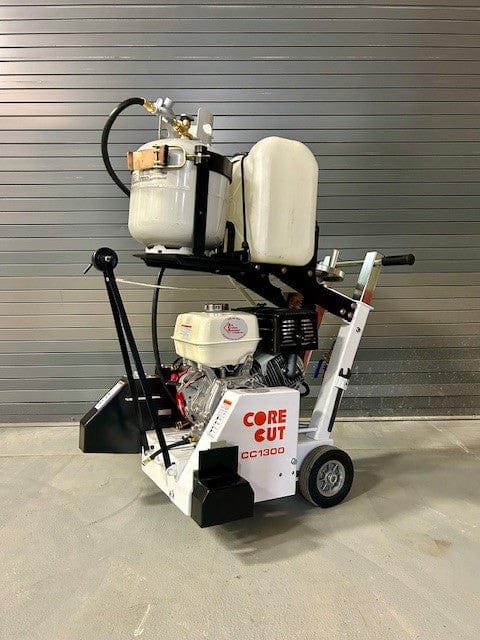

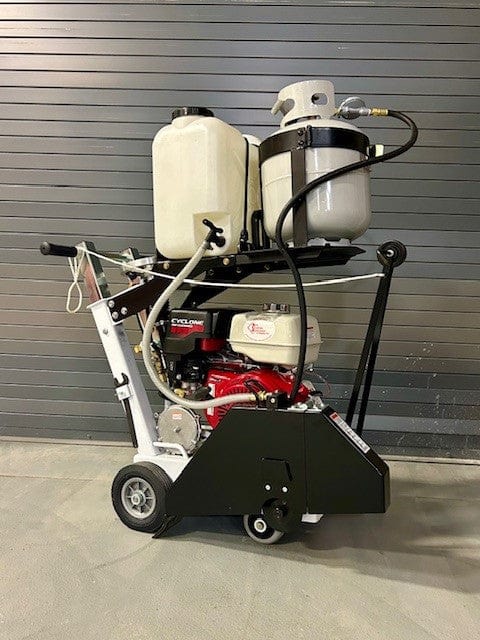

DIAMOND PRODUCTS CC1300XL PROPANE CORE CUT SAW
BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY
Propane Saws
- Propane tank not included for shipping reasons
- Catalytic Converter (Scrubber) optional add-on for added stage of filtration from exhaust, contact for more details
- Dual fuel, propane and gas powered. Easily activated by switch from one fuel system to the other
Features & Benefits
- Heavy duty frame design
- Easy to maneuver push drive
- Four position heavy duty handles
- Solid sealed and self aligning blade shaft bearings
- Slip-on blade guard for easy blade access
- Three V-belts for extra power delivery to the bladeshaft
- Left or right side sawing
- Optional water tank available
Core Cut CC1300 is the best option for a small portable push saw if a strong, durable frame is important. Crank raise / lower is reliable and easy to turn, holds up to 20" blade for nearly 8" depth of cut. Optional water tank option for dust suppression and extending blade life.
CC1300XL SPECIFICATIONS
| Max blade diameter, in | 20" |
| Max depth of cut, in | 7-5/8" |
| Average bladeshaft, RPM | 2,600 |
| Weight, lbs | 365 |
| Max depth of cut with 14" blade | 4-5/8" |
| Max depth of cut with 18" blade | 6-5/8" |
| Max depth of cut with 20" blade | 7-5/8" |
| Blade shaft RPM | 2,600 |
| Blade shaft diameter | 1-1/4" |
| Arbor size | 1" with single drive pin |
| Blade mounting | Right or left |
| Blade raise / lower | Precision screw feed |
