Vendor: Bartell Global

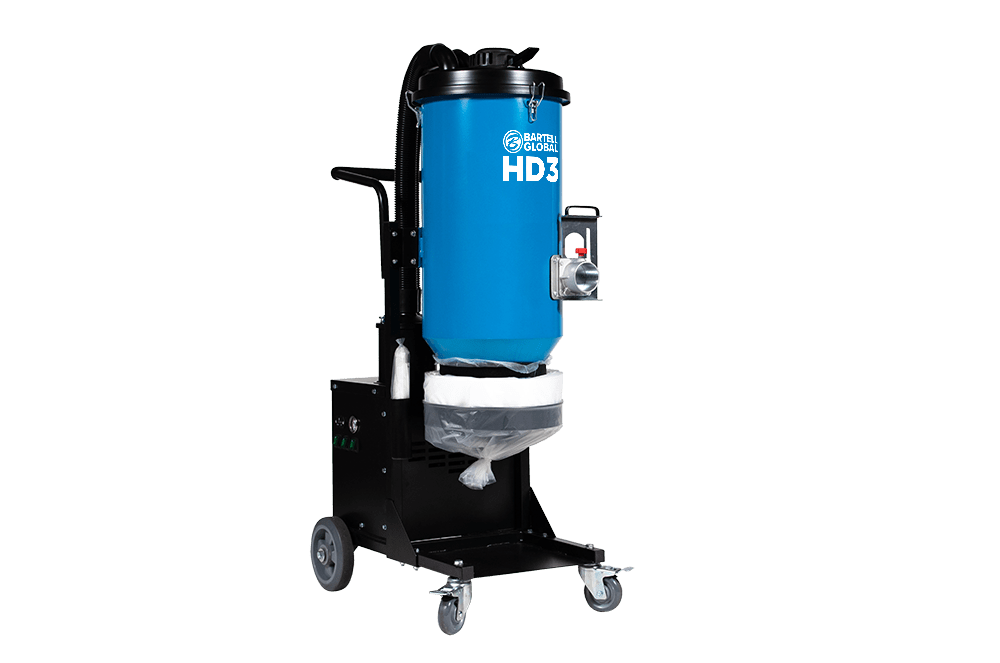

Bartell Global HD3 HEPA Dust Extractor

$5,135.00
$5,135.00
Sold out
Shipping calculated at checkout.
Sku:

Bartell Global HD3 HEPA Dust Extractor features two-stage filtering with jet-pulse filter cleaning. Dual motors offer 288 cfm air flow on the 120V option and 356 cfm air flow on the 220V option. Three individual motor switches allow for variable suction power. Users of the discontinued Husqvarna S36 will find the HD3 to be an exceptionally equivalent option.

Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
Bartell Global HD3 HEPA Dust Extractor
Bartell Global HD3 HEPA Dust Extractor
Caret Down

Additional Info

BARTELL GLOBAL HD3 HEPA DUST EXTRACTOR


Features & Benefits
  • Two stage filter system with jet-pulse cleaning

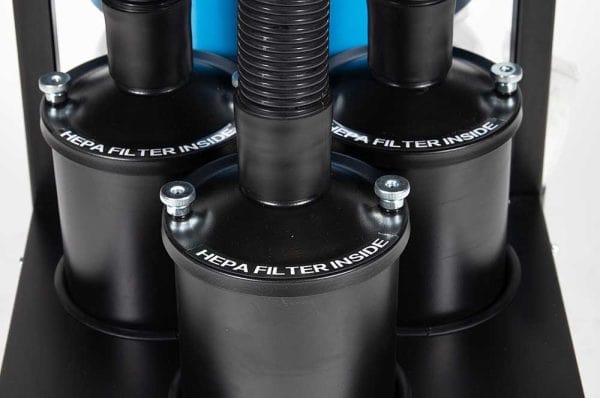

  • Equipped with 3 HEPA filters
  • 3 individual motor switches provides variable suction and power requirements
  • "Reverse-air" jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters
  • Easy-to-use inlet closure door eliminates the need to remove hoses when pulsing and cleaning filters
  • Equipped with a continuous-bag disposal system for effective dust collecting

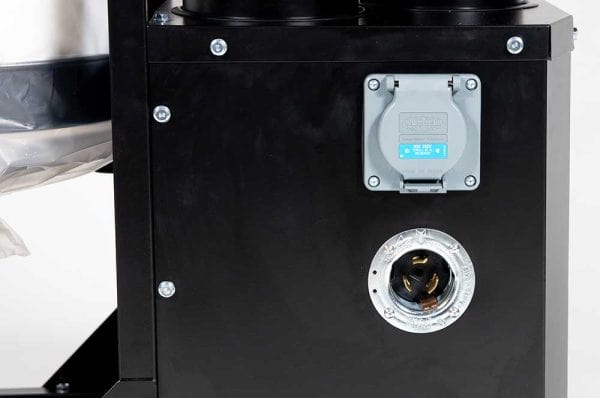

  • 30 Amp distribution box
  • Comes with 25ft hose and floor wand


HD3 Dust Extractor Specifications

Volts, V
 120
 220
Amps, A
 16
 12
Inlet Diameter, in
 2.5" 2.5"
Power, hp
 3.2 4.8
Air Flow, cfm
 288
 356
Water Lift, in
 74 90
Dimensions (L x W x H), in
 31" x 23" x 58" 31" x 23" x 58"
Weight, lbs
 149 141



HD3 Product Files

HD3 Spec Sheet

HD3 Manual & Parts Book
