Vendor: Ace Cutting

PRO-SERIES Complete Combination Core Drill Rig

$5,715.00
$5,715.00
Sold out
Shipping calculated at checkout.
Sku: PROSERIES-212

Looking to level-up core drilling game? Look no further. The PRO-SERIES package core drill assembly has it all. The PRO-SERIES comes equipped with a powerful and reliable 4-speed drill motor able to core up to a 14" diameter bit standard. The durable drill motor, anchor base, and vacuum base make this rig package a solid, long-term investment for your core drilling needs.

Caret Down

Finance your Next Project

Click Here to Apply for Financing

Product Reviews

Caret Down
View full details
PRO-SERIES Complete Combination Core Drill Rig
PRO-SERIES Complete Combination Core Drill Rig
Caret Down

Additional Info

PRO-SERIES COMPLETE COMBINATION CORE DRILL RIG

12" Standard Bit Capacity (Vacuum Base)
14" Standard Bit Capacity (Anchor Base)
36" Standard Bit Capacity (Torque Doubler Added - contact Ace for details)

Spacer Block Available Separately

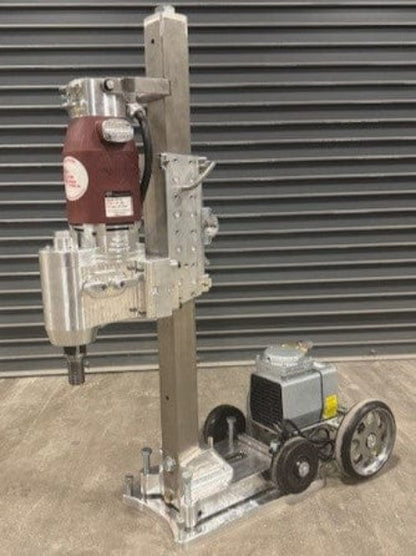

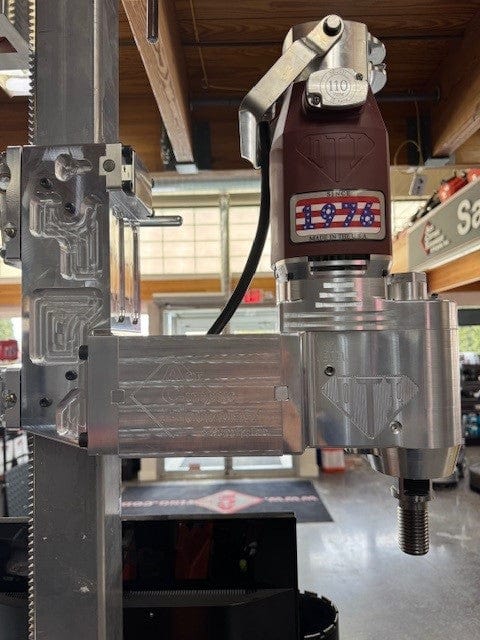

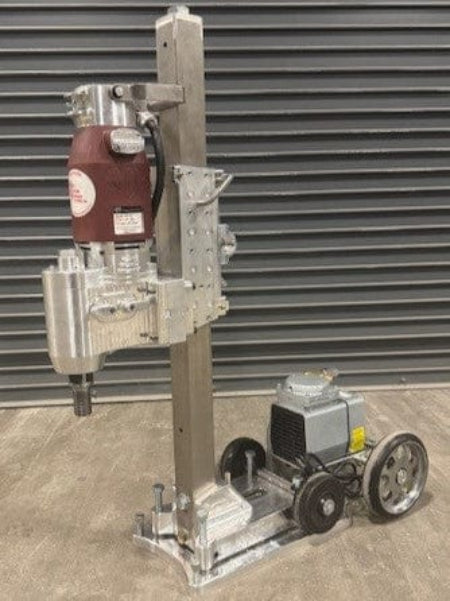

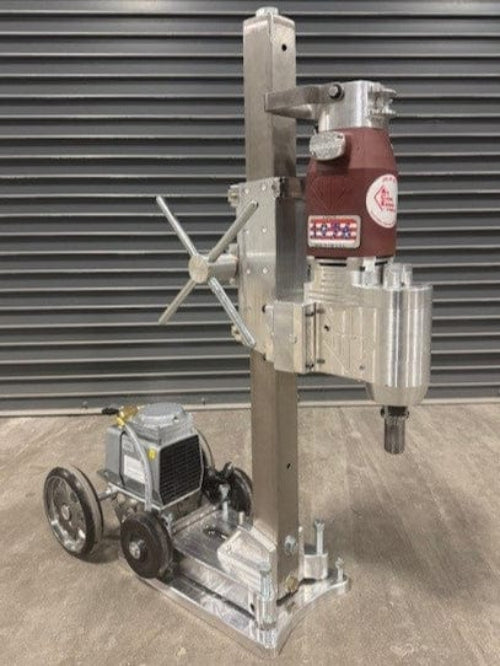

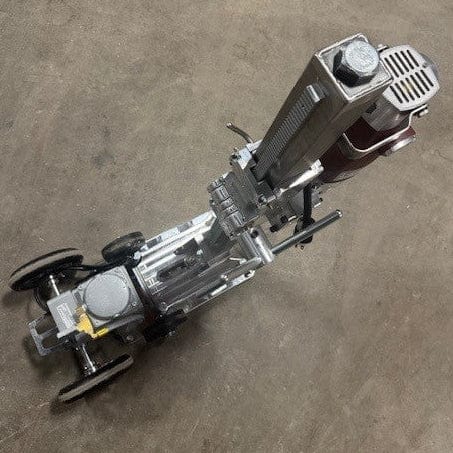

  • Includes: 4-Speed Core Drill Motor, 40" mast, Detachable Anchor-Only Base, Vacuum Base, Vacuum Pump
  • 2-1/2” or 2-7/8" square column (mast)
  • Vacuum base comes with 8" wheels for easy transport, 5" wheels for anchor base
  • On/off switch for safety feature

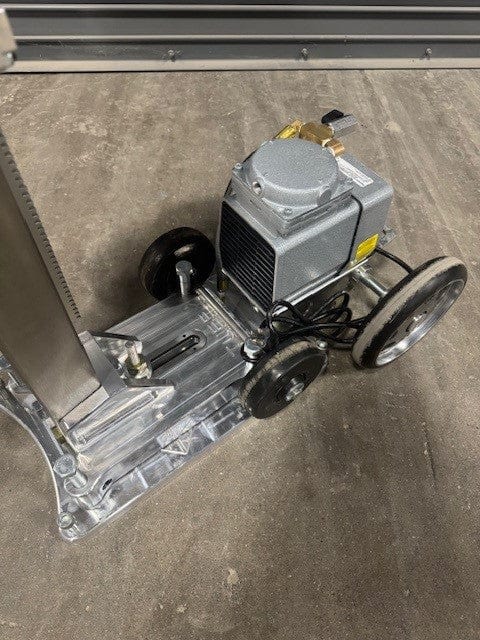

  • Vacuum pump for quick mounting to flat surfaces without drilling an anchor hole
  • 4 leveling screws for even mount
  • Contact Ace about the torque doubler to core up to 36" diameter hole
There are thousands of ways to build your custom rig.  Please call Ace Cutting if you have any questions.

Motor Amps, A25
Voltage, V110

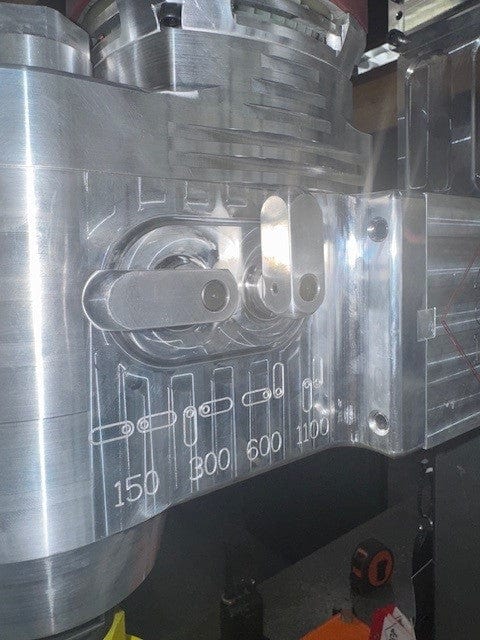

 Motor Speeds, RPMs150 / 300 / 600 / 1100
Spindle Size, in1-1/4"-7
Mast Height, in40"
Mounting StyleAnchor / Vacuum
