Vendor: Bw Manufacturing

A404 BW Manufacturing Pulse Vacuum

$15,635.00
$15,635.00
Sold out
Shipping calculated at checkout.
Sku: A-404-G

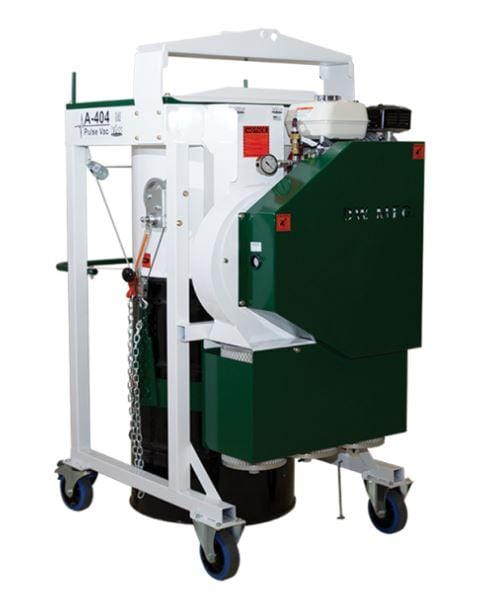

The A-404 Pulse Vac has been designed for the contractor who requires large amounts of dust containment. The A-404 has four primary filters that are pulsed clean every 6 seconds with a reversed charge of compressed air, ensuring a continuous vacuum. With your reduction in filter cleaning labor combined with it’s adaptability to all shrouded equipment, the A-404 Pulse Vac is the most essential and recommended dust collector system for today’s contractor.

Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
A404 BW Manufacturing Pulse Vacuum
A404 BW Manufacturing Pulse Vacuum
Caret Down

Additional Info

A404 BW MANUFACTURING PULSE VACUUM

Features & Benefits

  • All steel construction
  • Large 55 gallon dust bin
  • Built in compressed air pulsation for continuous dust-free operation.
  • Gas or Electric motor options
  • Easy to dump barrel

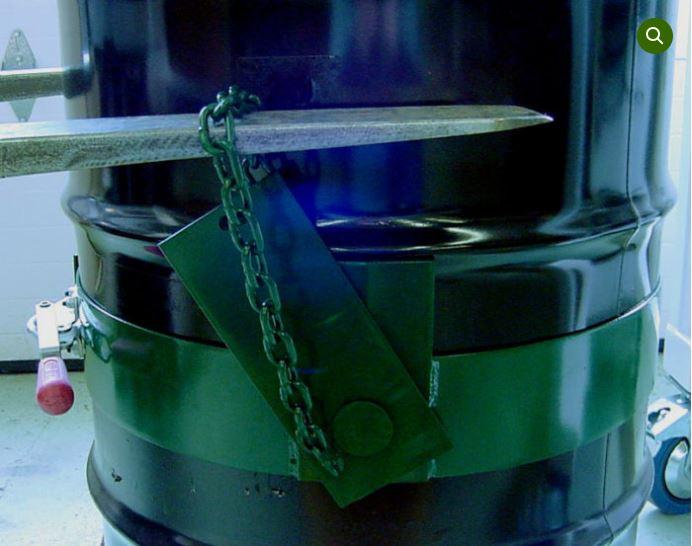

BW Manufacturing A-404 Pulse Vac was designed for the contractor who requires a larger amount of dust containment, automatic filter pulsation, and a high CFM.  The A-404 utilizes a 55-gallon drum that can contain up to 1,000 lbs. of material, and with the optional Drum Liner, material can be disposed of quickly and properly.
The A-404 offers two 5" inlet ports, field tested and proven pulsation control is designed for maximum productivity in the field.  And with a reversed charge of compressed air, the filters are alternately pulsed clean every 10-15 seconds ensuring the A-404 has a continuous vacuum.
With your reduction in filter cleaning labor, adaptability to all shrouded equipment, and rugged construction make the A-404 a perfect fit for your dust containment needs.

Air Flow1 @ 5" - 1,175 CFM
2 @ 5" - 620 each port
Inch LiftSealed - 18.2"
1 @ 5" - 3.0"
2 @ 5" - 1.5"
ConstructionPowder coated steel
Vacuum hose5" x 15' wire reinforced
Gas motor5.5 hp Honda
Compressor2.5 cfm air cooled - oil less
Dimensions (LxWxH)42" x 34" x 61"
Wheels 2 @ 8" Rubber stationary casters
2 @ 8" Rubber swivel casters
FiltersHEPA 10129-H (Standard Filter in all BW Manufacturing equipment)

A-404 Pulse Vac PDS

A-404 Complete Manual
