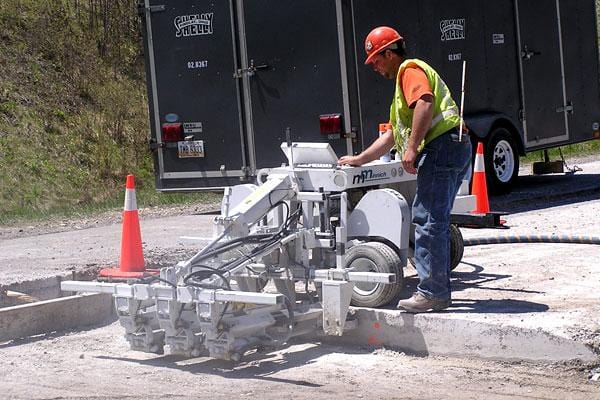

Minnich A-3SC multiple-drill self-propelled units with skid steering offer highly productive on-slab drilling solutions. A-3SC drills have the weight and strength to tow their own air compressor. Capable of horizontal and vertical drilling, the drills have crab steering that boosts efficiency by letting operators drive down the slab without raising and lowering the drill bed.
|Drill steel shank (Chuck size)||7/8" x 4-1/4"|
|Drill steel length||24" under collar|
|Drill bit diameter||5/8" to 2-1/2"|
|Max drill depth||18"|
|Drill distance from top of slab||3-1/2" to 12"|
|Minimum cutout width||48"|
