Minnich Manufacturing

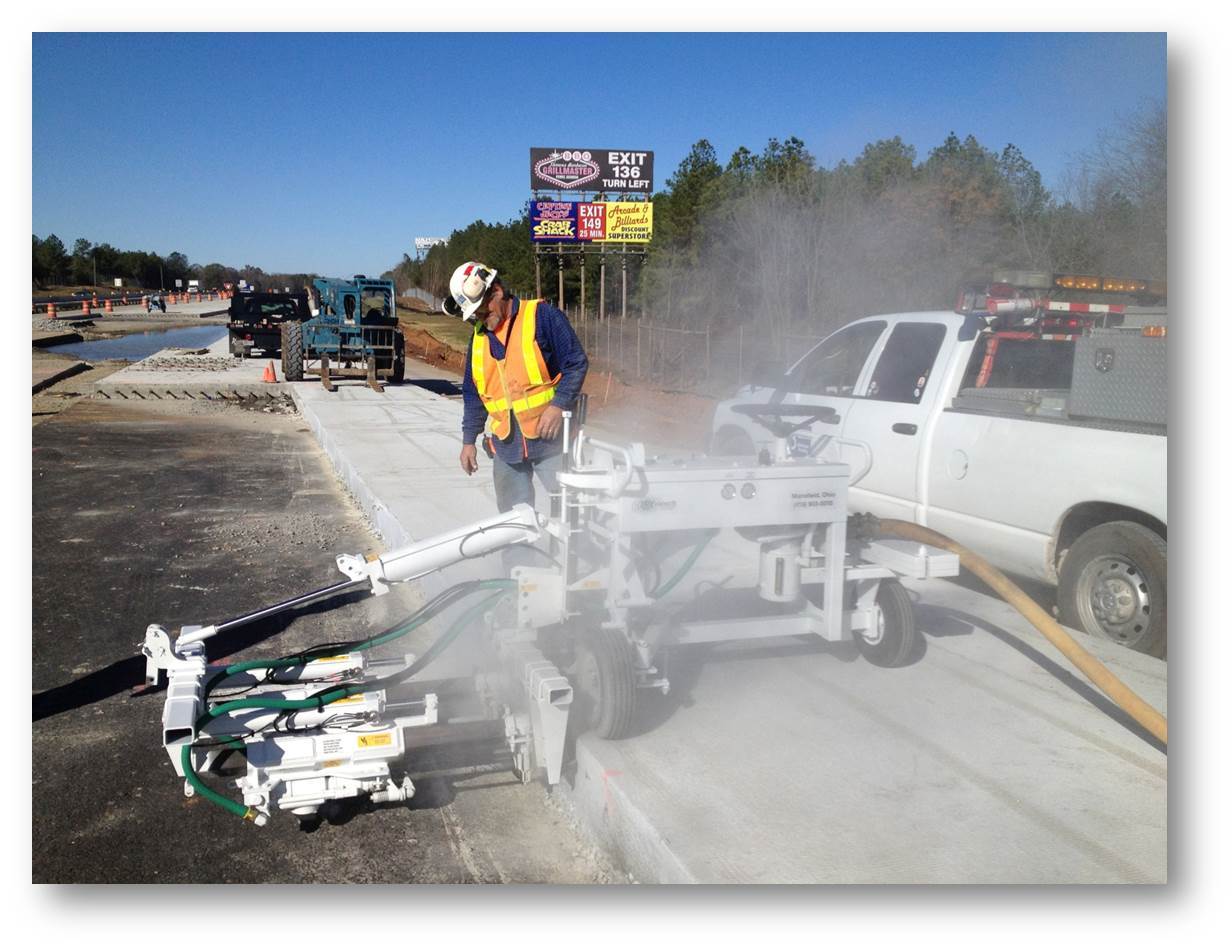

A-2C Double On-Slab Unit with Steering

SKU: A-2C

Minnich A-2C drills with steering feature on-slab drilling solutions for almost any project. Double-drill series can drill in horizontal, vertical and 35-degree stitch positions. All models feature steering to enhance operator accuracy and control, an automatic shut-off feature that extends drill life and available dust collection to minimize dust and debris on the job site. The A-2C drill cuts operating time roughly in half due to the incorporation of the second drill.

Regular price $17,995.00
Sale price $17,995.00
Shipping calculated at checkout.
Quantity must be 1 or more

Finance Your Next Project With CIT
We accept payment
  • Description
  • Specs
  • Reviews
  • SHIPPING

Description

DOUBLE PNEUMATIC DRILL FITS IN 48" OPENING

 **NO FREE SHIPPING FOR MINNICH DRILLS**

Features
  • Three position drilling
  • Horizontal, Vertical, 35º Stitch
  • Flat proof tires
  • Adjustable drill height, depth and centers
  • Larger Oiler for easy maintenance

Specs

Drill steel shank (Chuck size)7/8" x 4-1/4"
Drill steel length24" under collar
Drill bit diameter5/8" to 2-1/2"
Max drill depth 18"
Drill distance from top of slab1-1/2" to 11-3/4"
Minimum cutout width48"
SCFM Required92.2
PSIG Required90
Weight900 lbs

Reviews

SHIPPING

Ace Cutting is able to offer free shipping on majority of their items however some products are ineligible due to their size, weight and price.  This item does not qualify for free shipping.  Please contact us for details and a shipping quote.
