Minnich Manufacturing

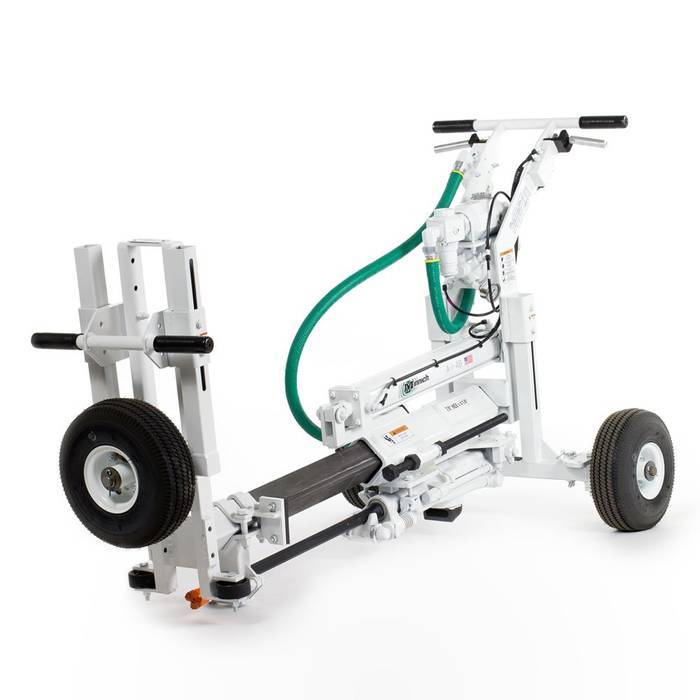

A-1-48 Minnich On-Grade Air Drill

SKU: A-1-48

Maximize versatility and work efficiently in tight spaces with Minnich A-1 48" Series single-drill, on-grade units. A-1 Series machines can be configured to drill four ways — horizontally, vertically, into a wall or six inches from a corner — eliminating the need for additional equipment or conversion kits.

Regular price $7,995.00
Sale price $7,995.00
Shipping calculated at checkout.
Quantity must be 1 or more

Finance Your Next Project With CIT
We accept payment
  • Description
  • Specs
  • Reviews
  • SHIPPING

Description

SINGLE PNEUMATIC DRILL USING 50 LB DRILL FITS IN 48" OPENING

 **NO FREE SHIPPING FOR MINNICH DRILLS**

Features

  • One wheel on-grade for drilling 6" to corner
  • Wall configuration for zero clearance drilling
  • Two wheel on-grade for more accurate drilling
  • Vertical configuration for different applications
  • A-1 can be configured four different ways, no need to purchase extra conversion kits

Specs

Drill steel shank (Chuck size)7/8" x 4-1/4"
Drill steel length24" under collar
Drill bit diameter5/8" to 2-1/2"
Max drill depth 18"
Drill distance from top of slab3" to 12"
Minimum cutout width48"
SCFM Required92.2
PSIG Required90
Hits per minute180 rpm
Weight200 lbs

Reviews

SHIPPING

Ace Cutting is able to offer free shipping on majority of their items however some products are ineligible due to their size, weight and price.  This item does not qualify for free shipping.  Please contact us for details and a shipping quote.
