Minnich Manufacturing

A-1-30 Utility Minnich On-Grade Air Drill

SKU: A-1-30 UTL-15

The Minnich A-1-UTL 30" unit can drill vertically or horizontally, features a lightweight design for easy portability and requires minimal air — making it an ideal alternative to an electric hammer drill.  Works efficiently in confined spaces, available with an optional dust collection system to minimize debris on the jobsite.

Regular price $6,125.00
Sale price $6,125.00
Shipping calculated at checkout.
Quantity must be 1 or more

Product options:

We accept payment
  • Description
  • Specs
  • Reviews

Description

SINGLE PNEUMATIC DRILL FITS IN 30" OPENING

Features

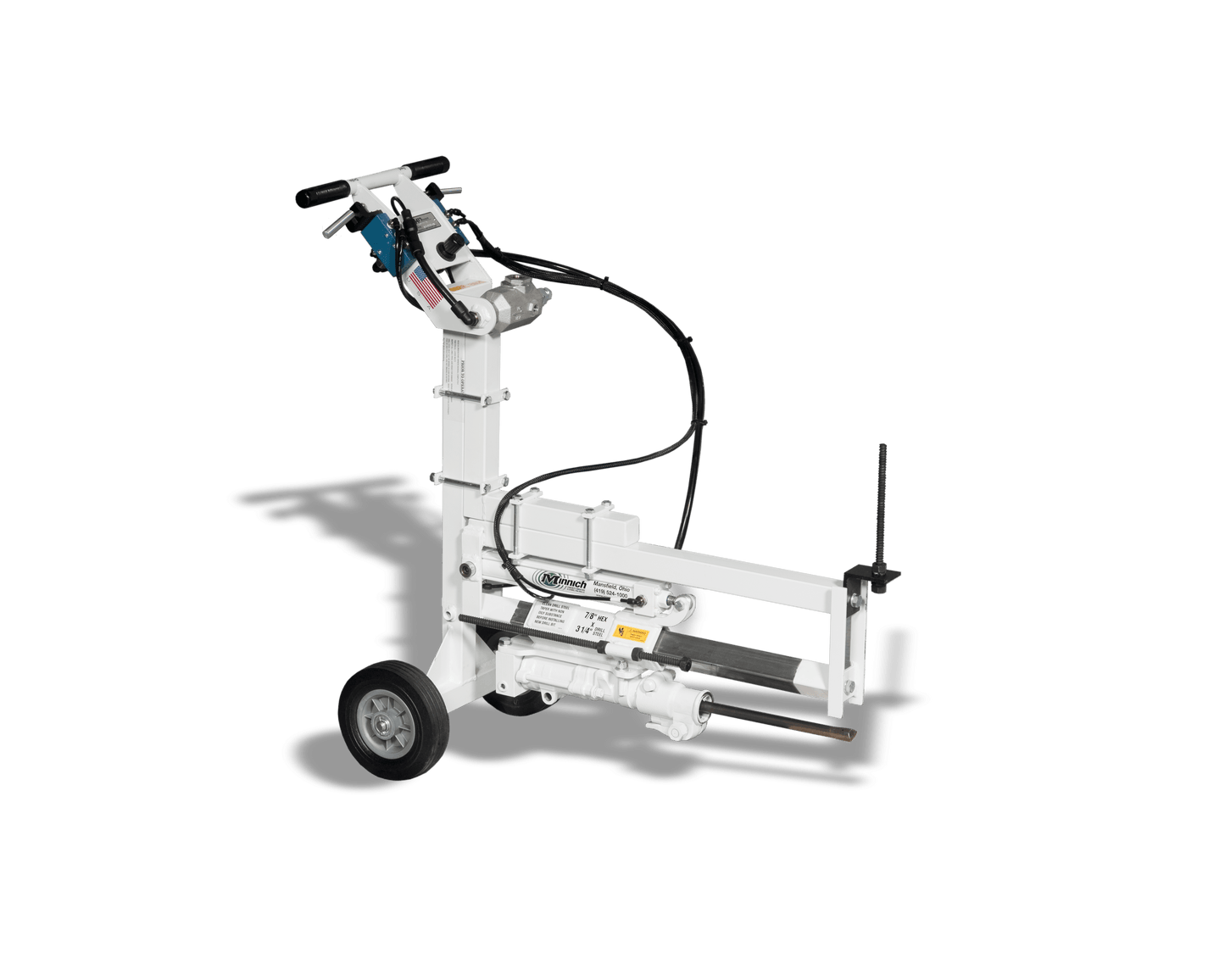

  • One wheel on-grade for drilling 6" to corner
  • Wall configuration for zero clearance drilling
  • Two wheel on-grade for more accurate drilling

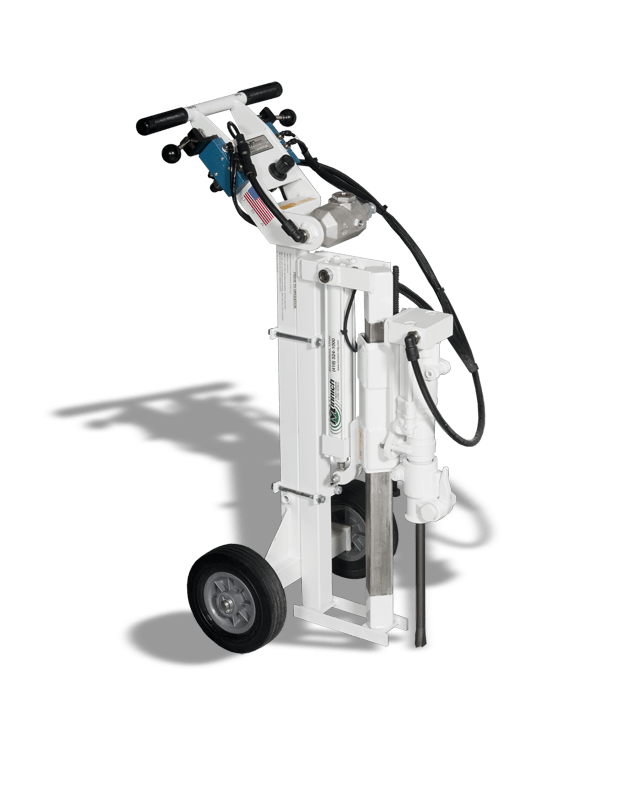

  • Vertical configuration for different applications
  • A-1 can be configured four different ways, no need to purchase extra conversion kits

Specs

Drill steel shank (Chuck size)7/8" x 3-1/4"
Drill steel length12" under collar
Drill bit diameter5/8" to 1-5/8"
Max drill depth 10"
Drill distance from top of slab3" to 12"
Minimum cutout width30"
SCFM Required75
PSIG Required84.5
Hits per minute240 rpm
Weight170 lbs
