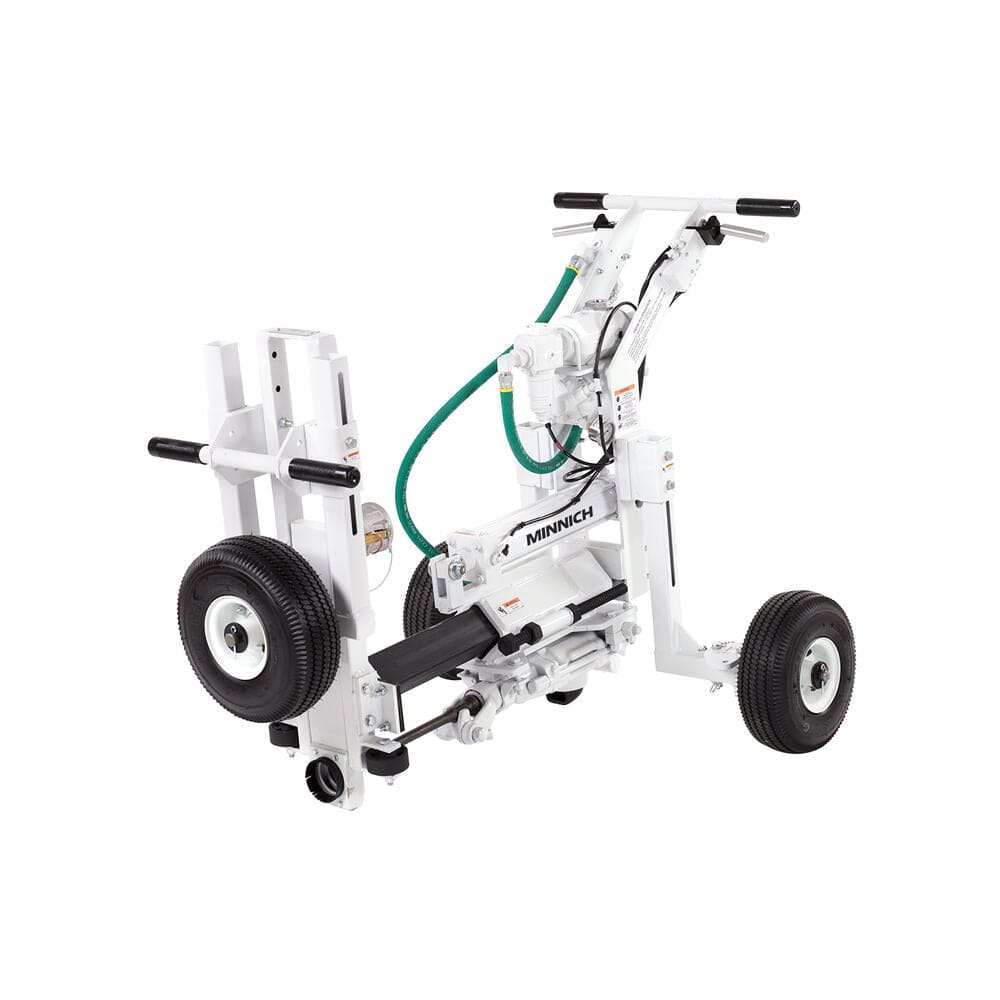

A-1-30 Minnich On-Grade Air Drill
Regular price
$9,050.00
Regular price
Sale price
$9,050.00
Unit price
per
Shipping calculated at checkout.
Sku:
A-1-30
Maximize versatility and work efficiently in tight spaces with the Minnich A-1-30 single-drill, on-grade unit. Equipped with a 30 LB drill, the A-1-30 can fit into 30" openings and can be configured to drill four ways — horizontally, vertically, into a wall or six inches from a corner — eliminating the need for additional equipment or conversion kits.
Notified by email when this product becomes available
A-1-30 Minnich On-Grade Air Drill
$9,050.00
SINGLE PNEUMATIC DRILL FITS IN 30" OPENING
Features
- A-1 can be configured four different ways, no need to purchase extra conversion kits
- One wheel on grade for drilling 6” to corner
- Wall configuration for zero clearance drilling
- Two wheel on-grade for more accurate drilling
- Vertical configuration for different applications
| Drill steel shank (Chuck size) | 7/8" x 3-1/4" |
| Drill steel length | 12" under collar |
| Drill bit diameter | 5/8" to 1-5/8" |
| Max drill depth | 10" |
| Drill distance from top of slab | 3" to 12" |
| Minimum cutout width | 30" |
| SCFM Required | 75 |
| PSIG Required | 90 |
| Blows per minute | 2700 |
| Air Inlet (NPT) | 3/4" |
| Air Consumption | 73 CFM |
| Weight | 170 lbs |
"
