Vendor: Husqvarna

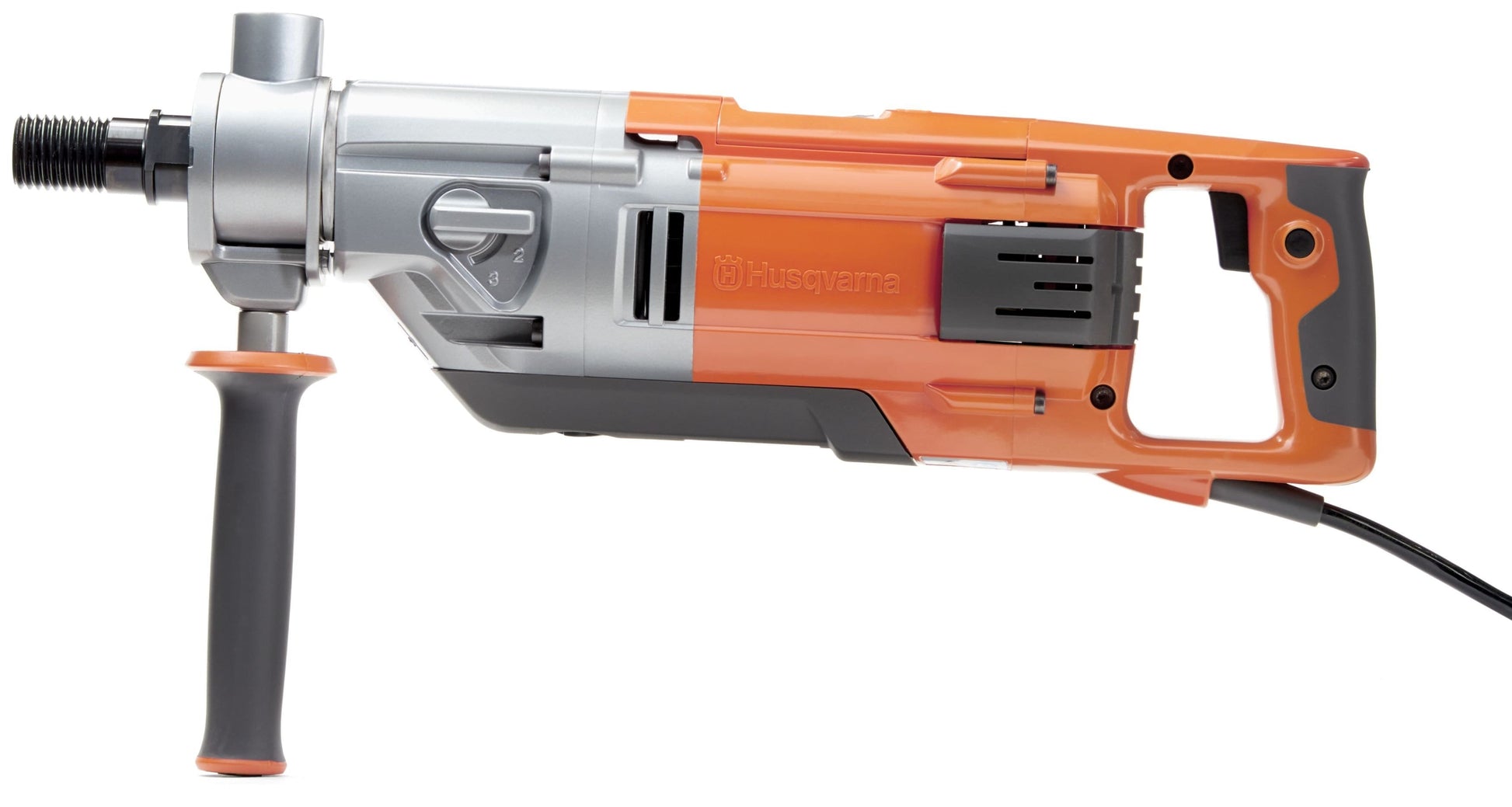

Husqvarna DM220 Hand-held Core Drill
Regular price
$2,725.00
Regular price
Sale price
$2,725.00
Unit price
/
per
Shipping calculated at checkout.
Sku:
966563503

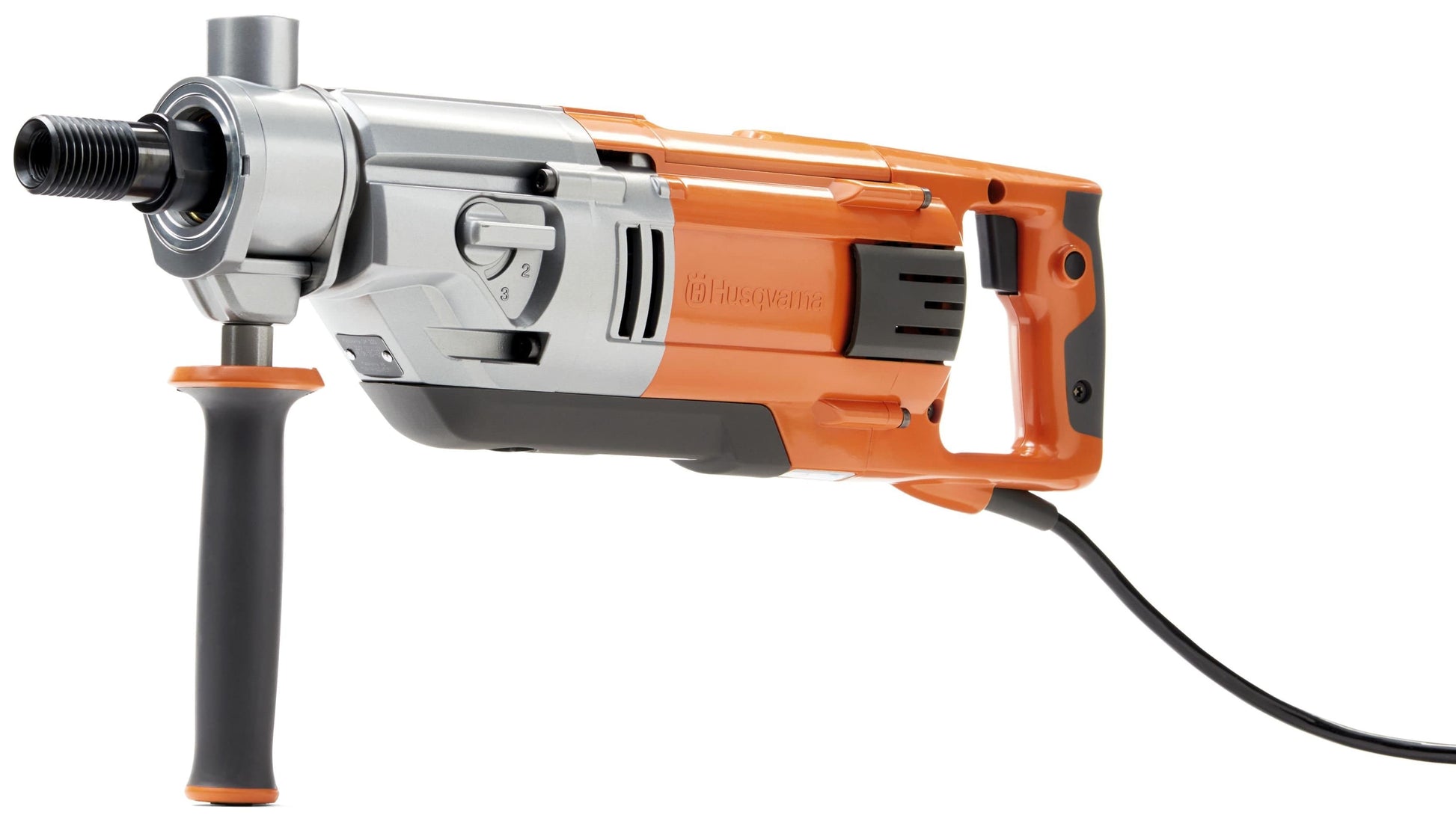

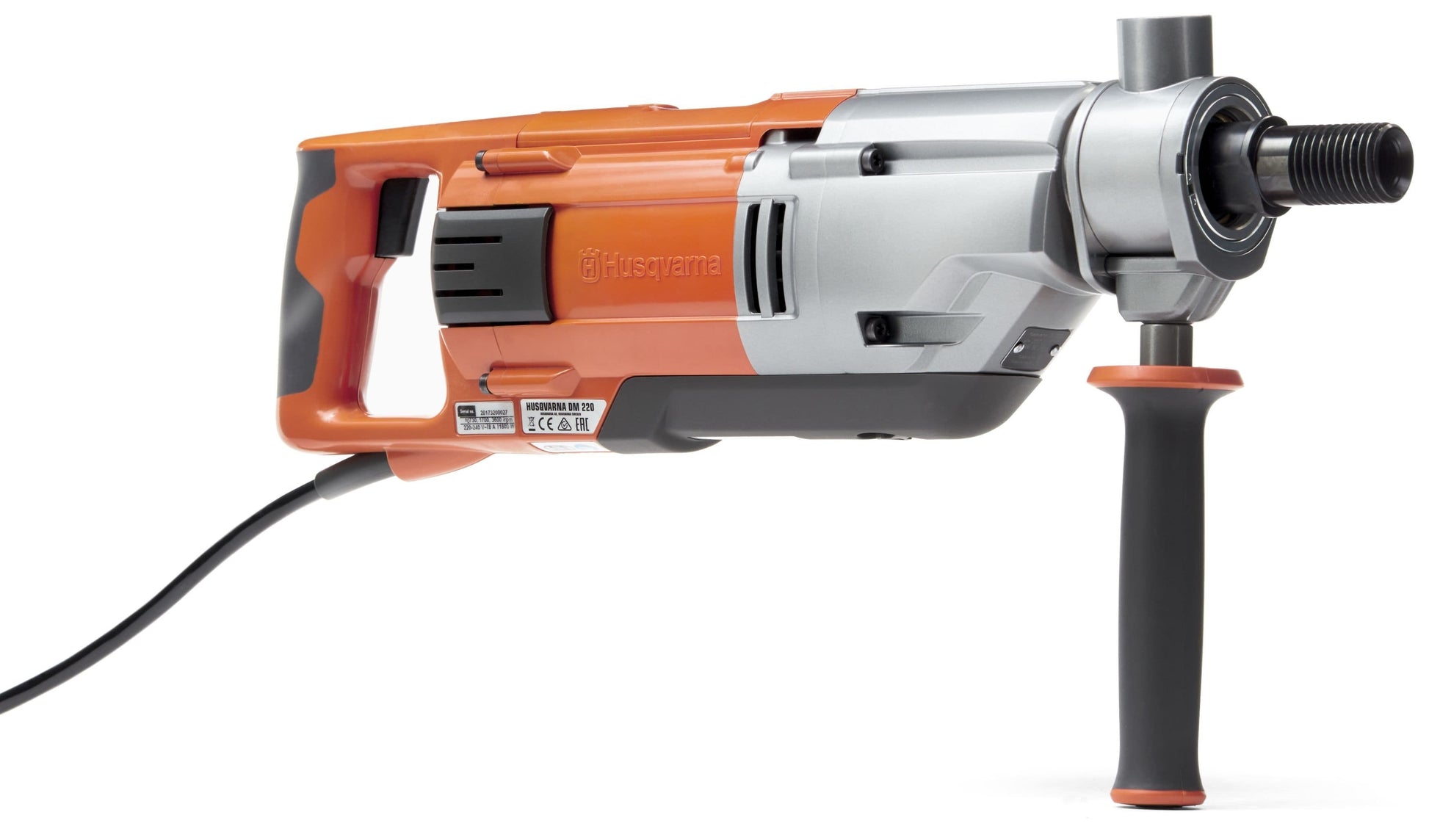

Handheld electric core drill for both dry and wet drilling. DM 220 has a level guiding system with a LED indicator, making it a perfect choice when looking for a drill motor with precision and efficiency. The ergonomically designed handle with D-handle gives you good control while drilling.
Couldn't load pickup availability
Product Reviews
Product Reviews









Notified by email when this product becomes available

Husqvarna DM220 Hand-held Core Drill
$2,725.00
Additional Info
HUSQVARNA DM220 HAND HELD CORE DRILL
Applications

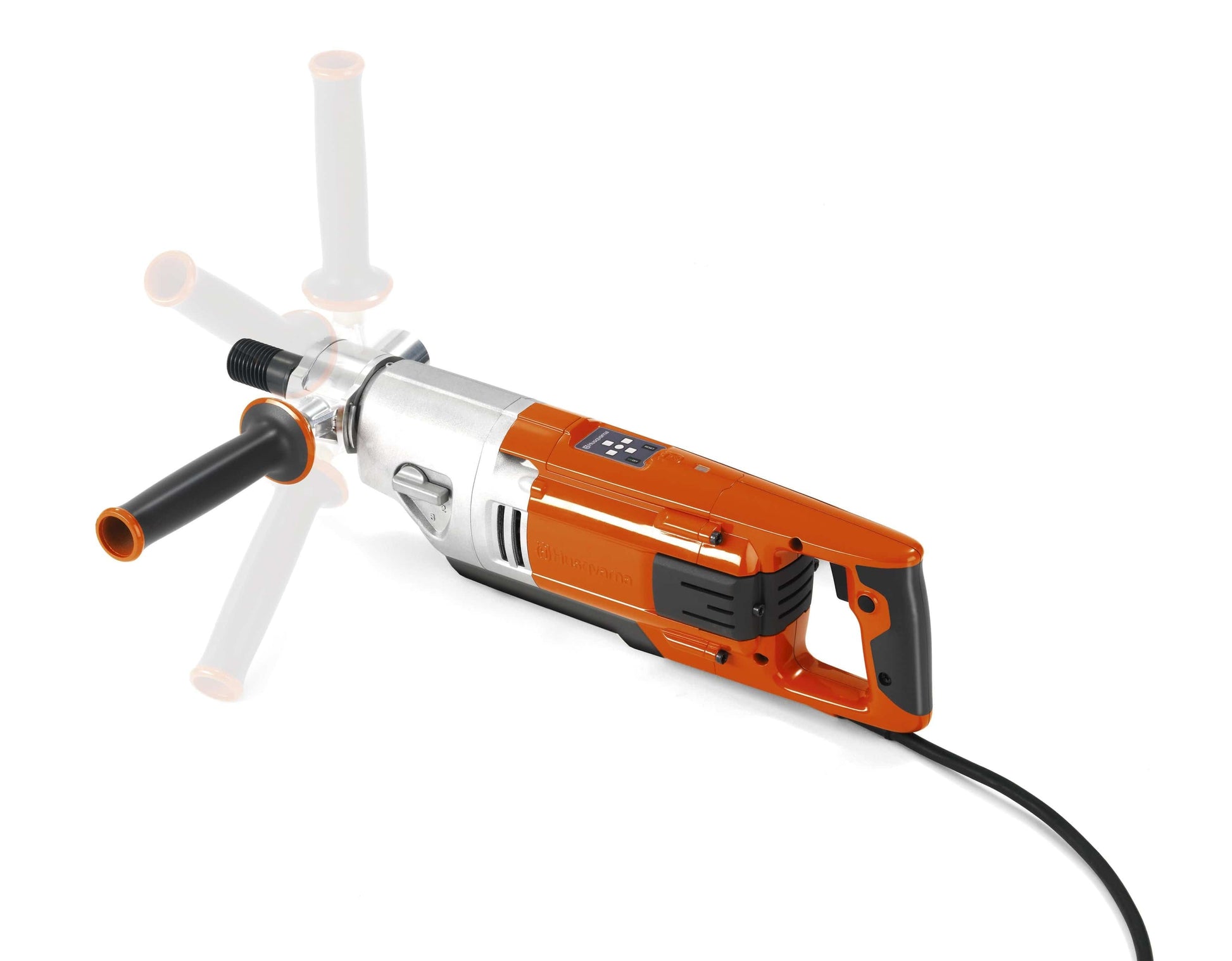

- 360 degree adjustable front handle

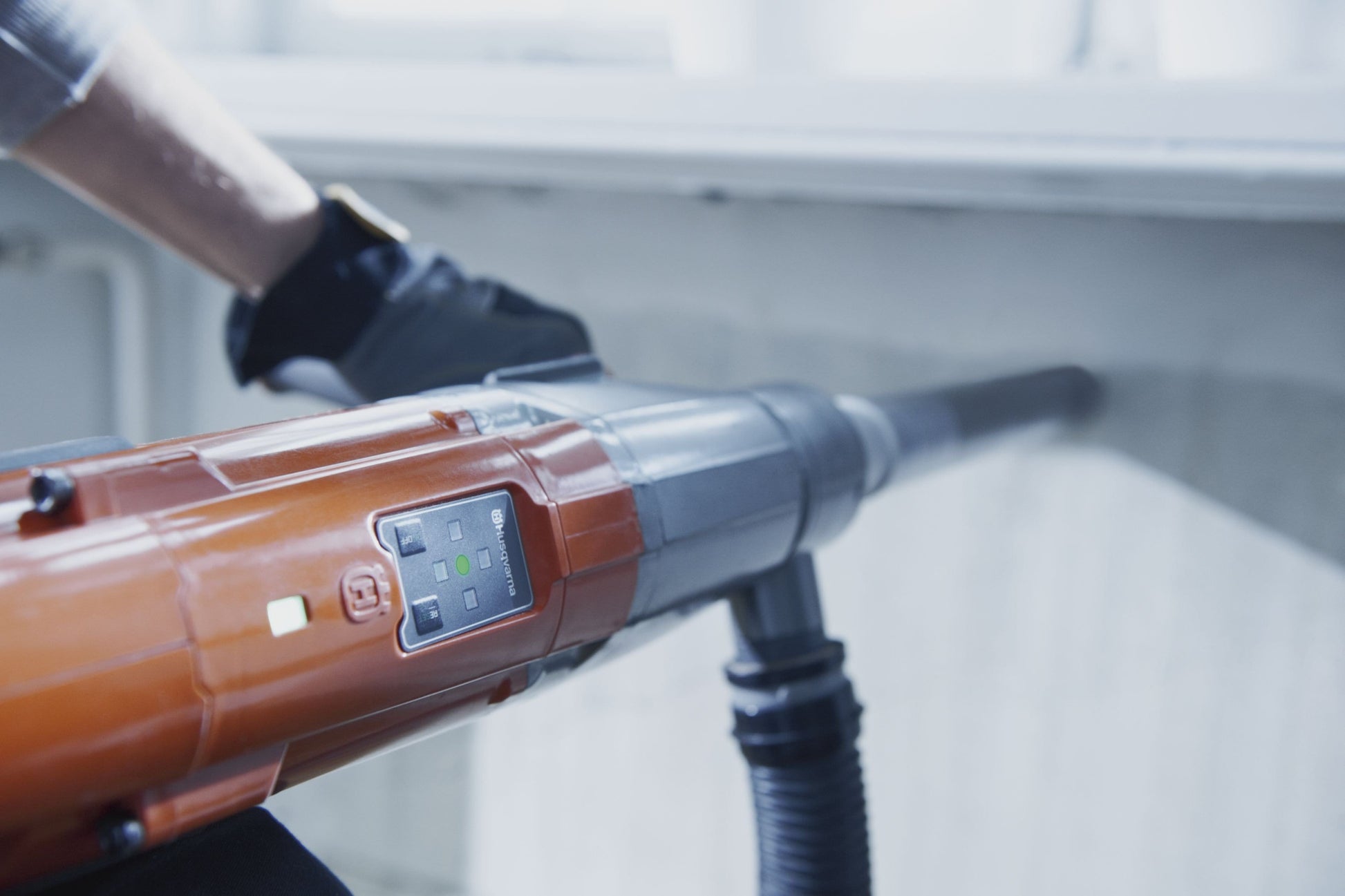

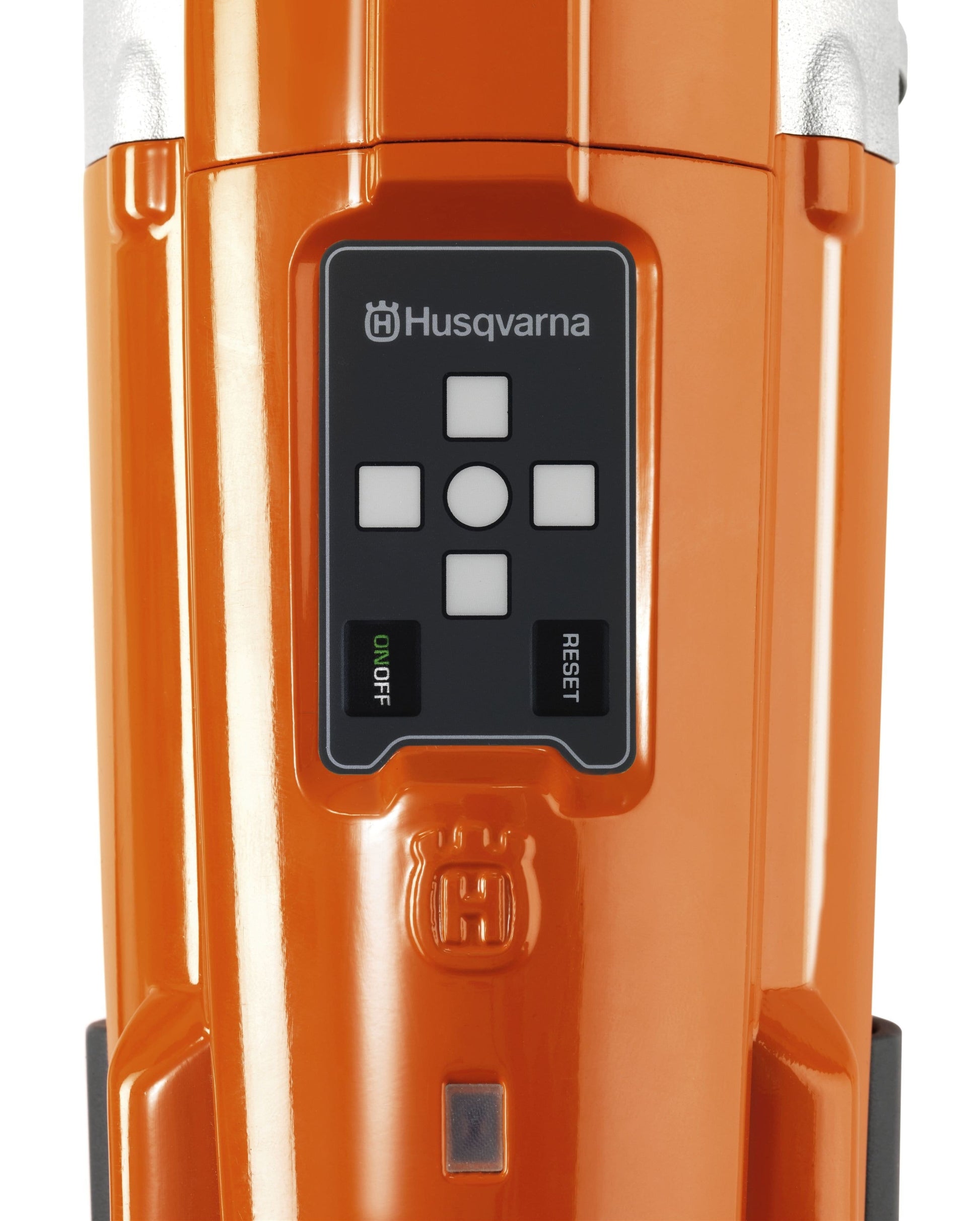

- Guideance for exact drilling - electronic positioning system shows when the machine is in a vertical, horizontal or preferred angle position
- Overload protection. This drill uses pulsation to warn you of an approaching overload. If the load is not reduced the motor will shut off, to prevent overheating. Elgard increase productivity and extends product life.

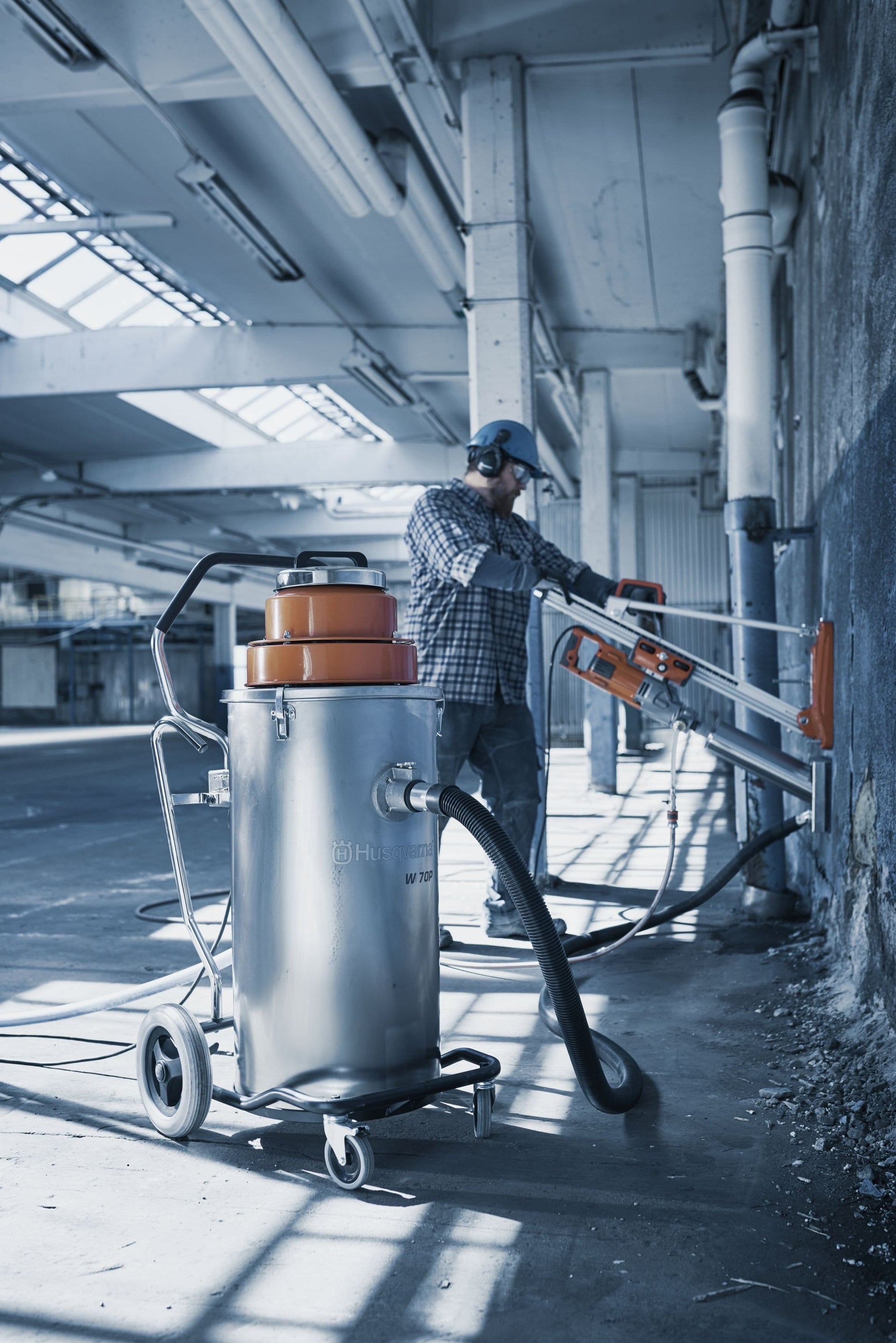

- Dry and wet drilling, easy to switch between dry and wet drilling
- Smooth start with normal fuses, Softstart lowers incoming current to reduce amperage when starting the motor

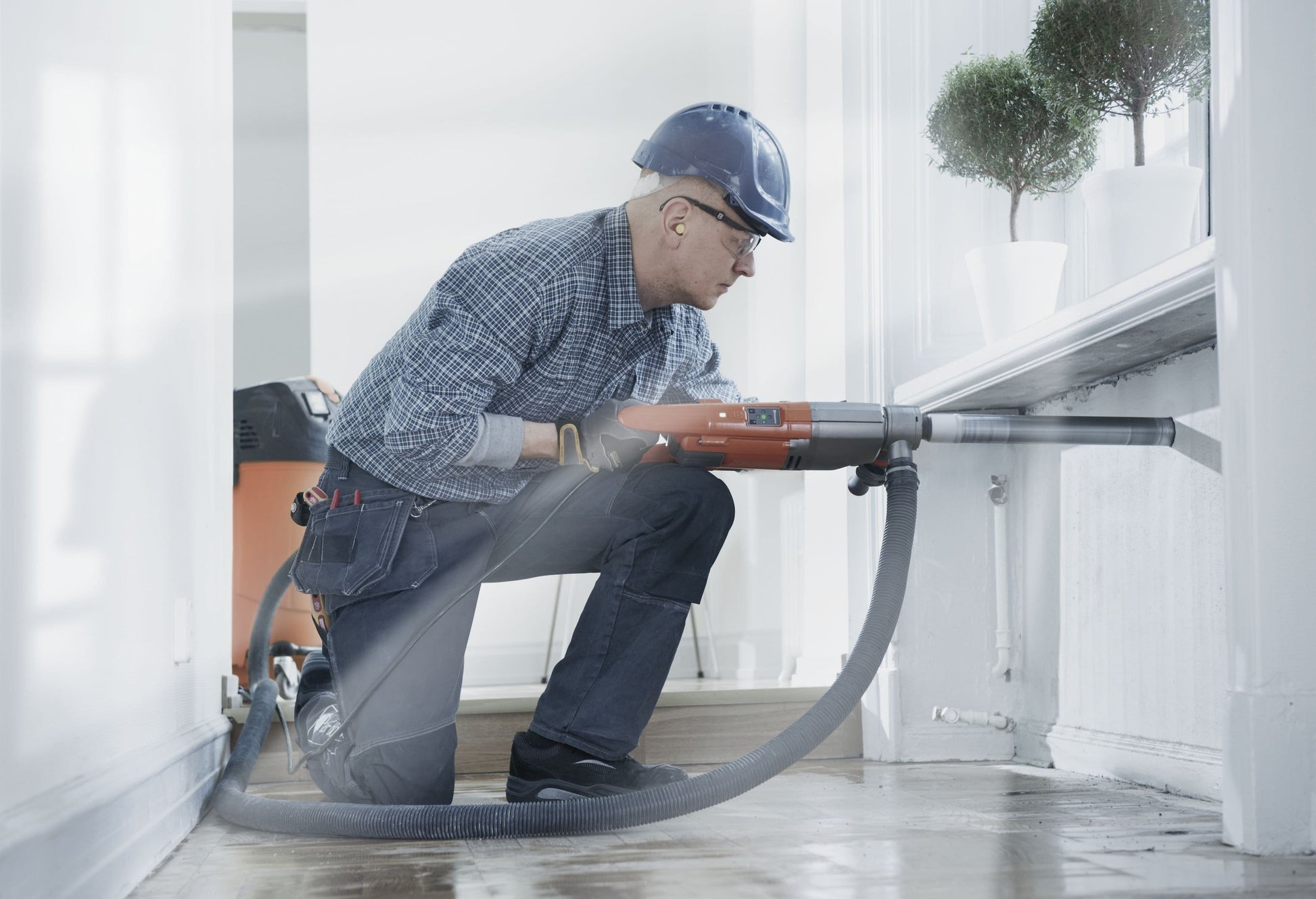

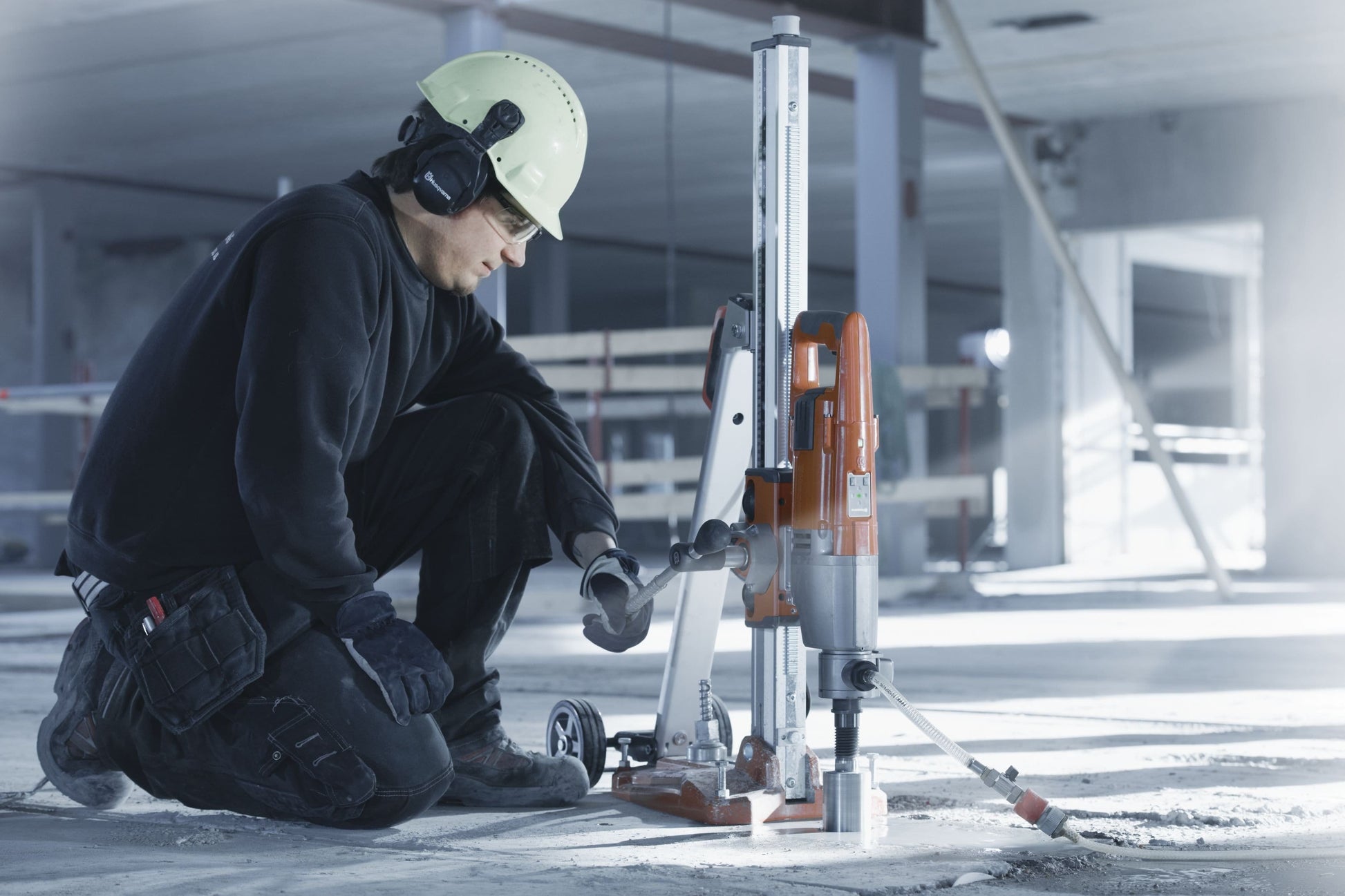

- Drill up to 4" by hand or up to 6" with stand
Max bit with stand, in | 6" |
Max bit handheld, in | 4" |
Power, hp | 2.3 |
Motor | 1-phase, electric |
Voltage, v | 230/115 |
Rated output, watts | 1,200 |
Rated current, amps | 8/15 |
Speeds | 3 |
Spindle speed no load, rpm | 900 / 2,150 / 4,500 |
Spindle speed full load, rpm | 500 / 1,400 / 2,900 |
Spindle thread, inner | 5/8-11 |
Spindle thread, outer | 1-1/4-7 |
UNC Water coupling | G 1/4" |
Sound pressure, level dB(A) | 90 |
Sound power level, dB(A) | 94 |
Weight, lbs | 15.4 |
Recommended Generator size, watts | 5,000 |
