Diamond Products

CC7574DK Diesel Core Cut Walk Behind Saw

SKU: 5801240

CC7574DK has a Kubota Turbo diesel engine with optional 3-speed gearbox and clutch.  Increase production, lower maintenance cost and better fuel efficiency with a Tier 4 Final complaint motor for powerful deep cutting demands.  Able to cut up to 19-3/4" deep with a 48" blade.

Regular price $32,859.00
Sale price $32,859.00
Shipping calculated at checkout.
Quantity must be 1 or more

Product options:

Finance Your Next Project With CIT
We accept payment
  • Description
  • Specs
  • Reviews
  • FILES

Description

DIAMOND PRODUCTS CC7574DK CORE CUT SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

FEATURES & BENEFITS

  • Tier 4 Final Deutz diesel engine
  • Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running
  • Easy maneuvering self propelled drive
  • Strongest frame on the market
  • Hydraulic wheel motor drive
  • Blade shaft gearbox-oil bath for low maintenance
  • 19-3/4" maximum cutting depth
  • Maintenance-free DVERT® diesel oxidation catalytic converter  (DOC-only, no DPF)
  • High pressure common rail electronic fuel injection

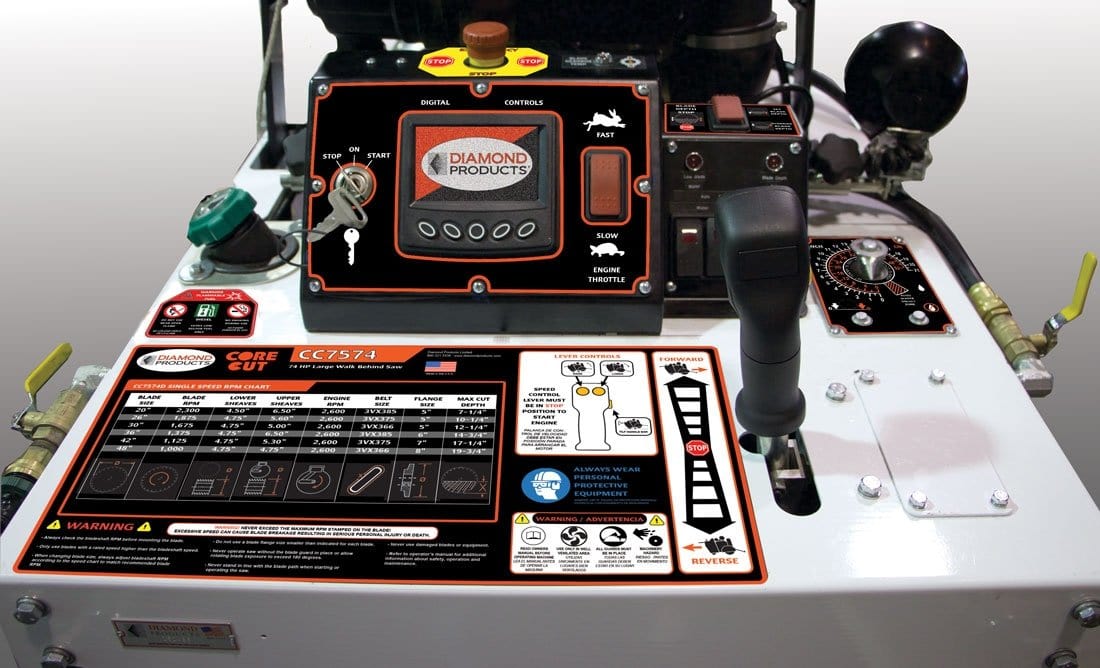

  • Modern computer interface engine controls

CC 7574DK SPECIFICATIONS

Horsepower 74 hp
Motor Kubota Turbo
Max depth of cut with 48" blade 19-3/4"
Bladeshaft drive 20 V-belts, 4 power bands
Bladeshaft diameter 2"
Weight, lbs 2,229

Specs

Max depth of cut with 20" blade7-1/4" (5" flange)
Max depth of cut with 26" blade10-1/4" (5" flange)
Max depth of cut with 30" blade12-1/4" (5" flange)
Max depth of cut with 36" blade14-3/4" (6" flange)
Max depth of cut with 42" blade17-1/4" (7" flange)
Max depth of cut with 48" blade 19-3/4" (8" flange)
Engine brandKubota Turbo Diesel
Engine specification4-cylinder, 3.3 Liter
Max engine power74.5 hp @ 2,600 rpm
Power at blade shaft70 horsepower
Emission regulationEPA Tier 4 Final compliant
Blade shaft diameter2"
Arbor size1" with single drive pin
Blade shaft bearingsMultiple ball bearings in oil bath
Blade shaft drive20 V-belts
Blade mountingRight or left
Blade raise / lowerElectro-hydraulic pump
TransmissionHydro pump powering dual wheel motors
Drive speed0-250 feet per minute
Air filter4-stage with restriction indicator
Fuel capacity9 gallons
