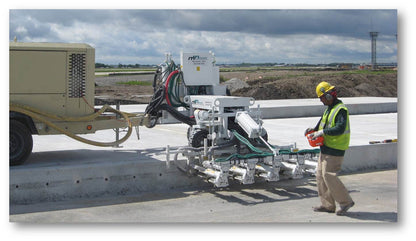

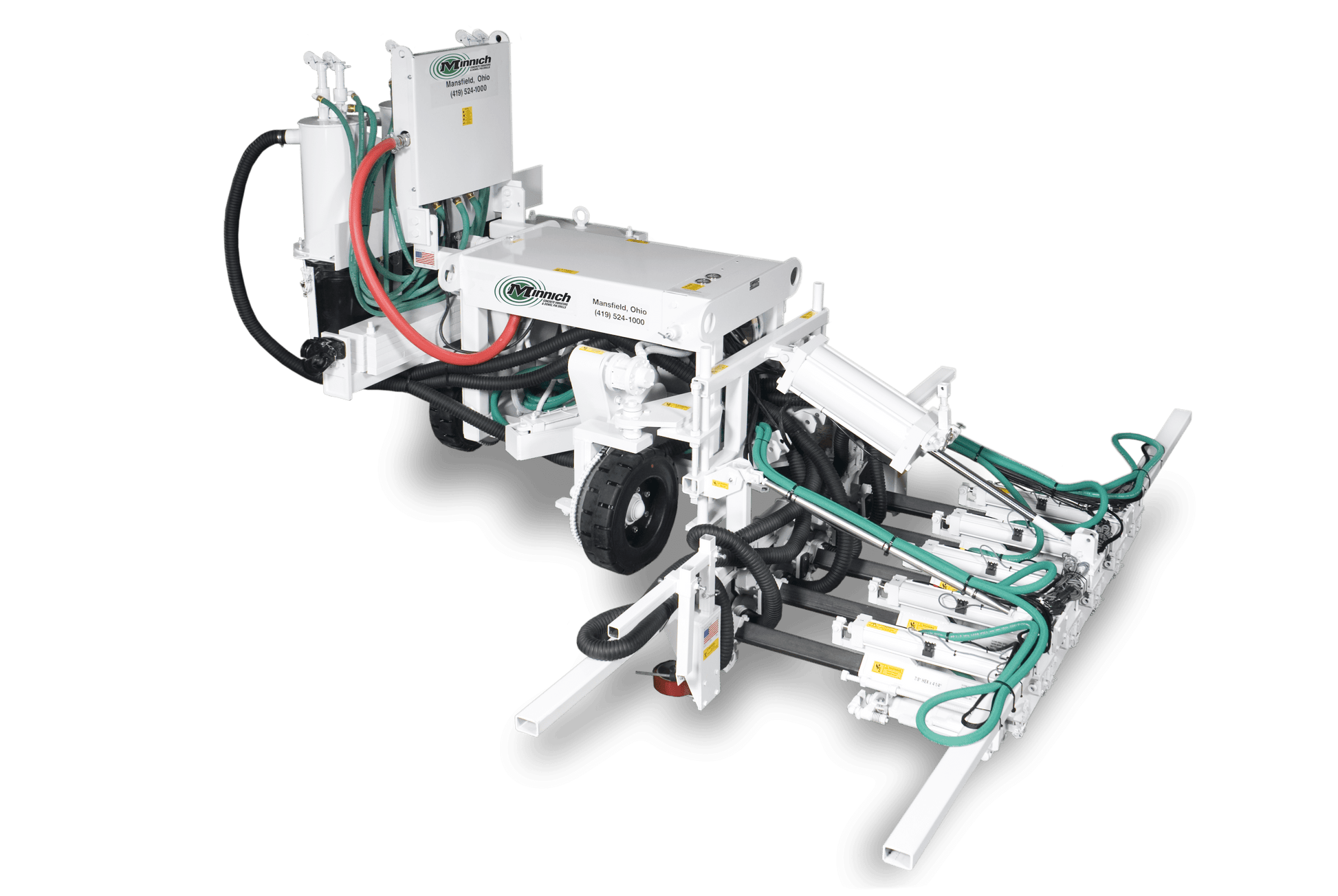

Minnich A-3SCW on-slab self-propelled wireless units increase drilling efficiency, accuracy and safety. Wireless remote control technology enables operators to drill up to three holes at once and drive down the slab to drill the next set of holes — all while standing in the grade away from the equipment. From this clear vantage point, operators can drill faster and more accurately while avoiding dust, debris and obstacles. Power crab steering further boosts efficiency by letting operators drive down the slab without raising and lowering the drill bed.
Features
Drill steel shank (Chuck size) | 7/8" x 4-1/4" |
Drill steel length | 24" under collar |
Drill bit diameter | 5/8" to 2-1/2" |
Max drill depth | 18" |
Drill distance from top of slab | 3-1/2" to 12" |
Minimum cutout width | 48" |
SCFM Required | 92.2 |
PSIG Required | 110 |
Weight | 2,860 lbs |
